Name: ANSI Porcelain Insulator Pin Insulator
Brand: all-electronics-online.com
SKU: 723817505
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ANSI No.:	52,53,54,55,56, 57 Series,ED, Tr, etc
Application:	Low-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	ANSI Standard
Size Of Bearing Capacity:	Various
Color:	Brown, Grey
Brand:	Cowinelec, OEM,ODM

Product Description

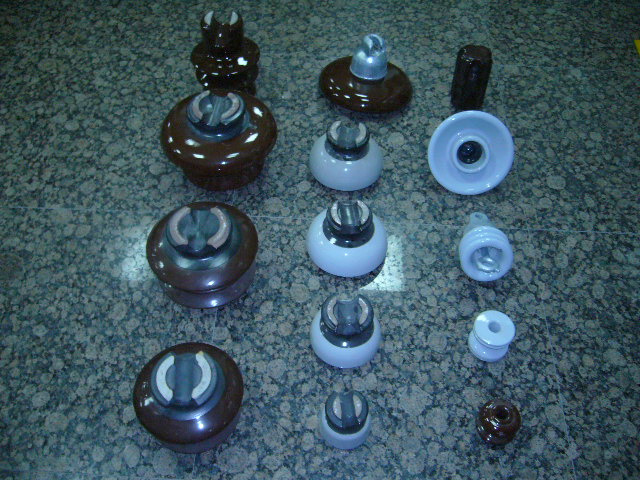

Full Range Insulators:
1)-Disc type
2)-Pin Type
3)-Post type
Standar: American, British, Janpan, Austrilian
Packing: can by wooden box; Also can by Polywood,etc.

* In comply with ANSI, IEC, BS, AS etc standard;
* Brown or grey glazed;
* Advise Model No or supply drawing when enquire;
* Disc insulator, suspension insulator, cap insulator.

ANSI 52 Series Overhead Line Porcelain Suspension Insulator

ass ANSI	Main Demension in (mm)		leak- age Dist- ance in (mm)	Com- bined M & E Stre- ngth b(KN)	Mceb anical Impact Strenth in-1b(N-m)	Time Load Test Value 1b (KN)	Average Flashover Voltage				Power Freq- uaency Punc- ture Voltage KV	Radio influence Voltage
	D(max)	F					Power Frequ- ency		Critcal Impulse			Test Volt- age To Gro- und KV	Max Riv At 1MHz V
	D(max)	F					Dry kv	Wet kv	Positive kv	Nag- ative kv		Test Volt- age To Gro- und KV	Max Riv At 1MHz V
52-1	61/2 (165)	51/2 (141)	7(178)	10000 (44)	45(5.0)	6000 (27)	60	30	100	100	80	7.5	50
52-2	8 (203)	53/4 (146)	81/4 (210)	15000 (67)	50(5.5)	10000 (44)	65	35	115	115	90	7.5	50
52-3	103/4 (273)	53/4 (146)	111/2 (292)	15000 (67)	5.5(6.0)	10000 (44)	80	50	125	130	110	10	50
52-4	103/4 (273)	53/4 (146)	111/2 (292)	15000 (67)	5.5(6.0)	10000 (44)	80	50	125	130	110	10	50
52-5	103/4 (273)	53/4 (146)	11 (279)	25000 (111)	60(7.0)	15000 (67)	80	50	125	130	110	10	50
52-6	103/4 (273)	53/4 (146)	11 (279)	25000 (111)	60(7.0)	15000 (67)	80	50	125	130	110	10	50
52-9	41/2 (114)	61/4 (160)	63/4 (171)	10000 (44)	45(5.0)	6000 (27)	80	30	100	90	80	7.5	50
52-10	280	165	305	160	10	107	80	50	125	130	110	10	50

ANSI 53 Series Porcelain Spool Insulator

Fig No.			1	2	3	4	5
ANSI Class			53-1	53-2	53-3	53-4	53-5
Transverse Strength/Ib(KN)			2000(89)	3000(13.3)	4000(17.8)	4500(20)	6000(26.7)
Average Flashover Voltage	Low-Freq. Dry/KV		20	25	25	25	35
	Low-Freq. Wet/KV	Vertical	8	12	12	12	18
		Horizontal	10	15	15	15	25
Net Weight/Ib(kg)			0.48(0.22)	1.2(0.55)	1.2(0.55)	2.2(1.0)	2.6(1.2)

ANSI 55 Series Porcelain Pin Insulator

Class ANSI	55-1	55-2	55-3	55-4	55-5
Creepage Distance(mm)	102	127	178	229	305
Dry Arcing Distance(mm)	57	86	114	127	159
Cantilever Failing Load(kN)	13	11	11	13	13
Low Frequency Dry Flashover Voltage	35	45	56	65	80
Low Frequency Wet Flashover Voltage	20	25	30	35	45
Critical Impulse Flashover Pos(kV)	50	70	90	105	130
Critical Impulse Flashover Neg(kV)	70	85	110	130	150
Power-Frequency puncture voltage(kV)	50	70	90	95	115
Test voltage to ground(kV)	5	5	10	10	15
Maximum RIV at 1000kHz(µV)	50	50	50	50	100
Net weight Eash APPROX(kg)	0.5	0.65	1	1.55	2.75

PROFESSOINAL: High Voltage Electrical Materials and Poleline Hardwares
