Anti-Rodent Fiber Optic Cable Armored GYTA53

Name: Anti-Rodent Fiber Optic Cable Armored GYTA53
Brand: all-electronics-online.com
SKU: 737748885
Availability: InStock
Rating: 5 (69 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode:	Single Mode
Central Member:	Mentallic Strength Member
Operating Temperature:	-40 C ~ +70 C
Filling Gel:	Water Blocking
Install Style:	Outdoor Direct Buried
Armor:	Steel Armoring
Core Number:	as Your Requirement
Number Of Conductors:	up to 10
Brand Name:	Tw-Scie Fiber Optic Cable
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

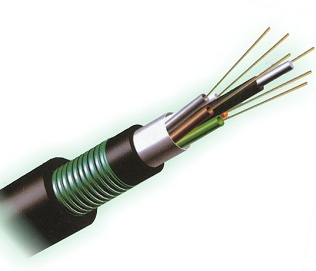

Anti-Rodent Fiber Optic Cable GYTA53 Armored Optical Cable

Product Construction

Fiber:

2-288 fibers

Multi loose tube gel-filled

Central Strength Member:

Metallic steel wire

1st Armor:

Aluminum tape

Inner Jacket:

Black UV and waterproof polyethylene (PE).

2nd Armor:

Corrugated steel tape

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features

Loose tube gel-filled construction for superior fiber protection.

Double jacket and double armor to protect cable from rodent attack and mechanical damage.

UV and waterproof design.

Applications

Interbuilding voice or data communication backbones.
Installed in ducts, underground conduits or direct buried.

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of(Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance(N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of(Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	13.9	202	6	6	3000	1000	3000	1000
38~72	15.1	241	12	6	3000	1000	3000	1000
74~96	17.1	290	12	8	3000	1000	3000	1000
98~120	18.6	333	12	10	3000	1000	3000	1000
122~144	20.2	381	12	12	3000	1000	3000	1000
>144	Available upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14
