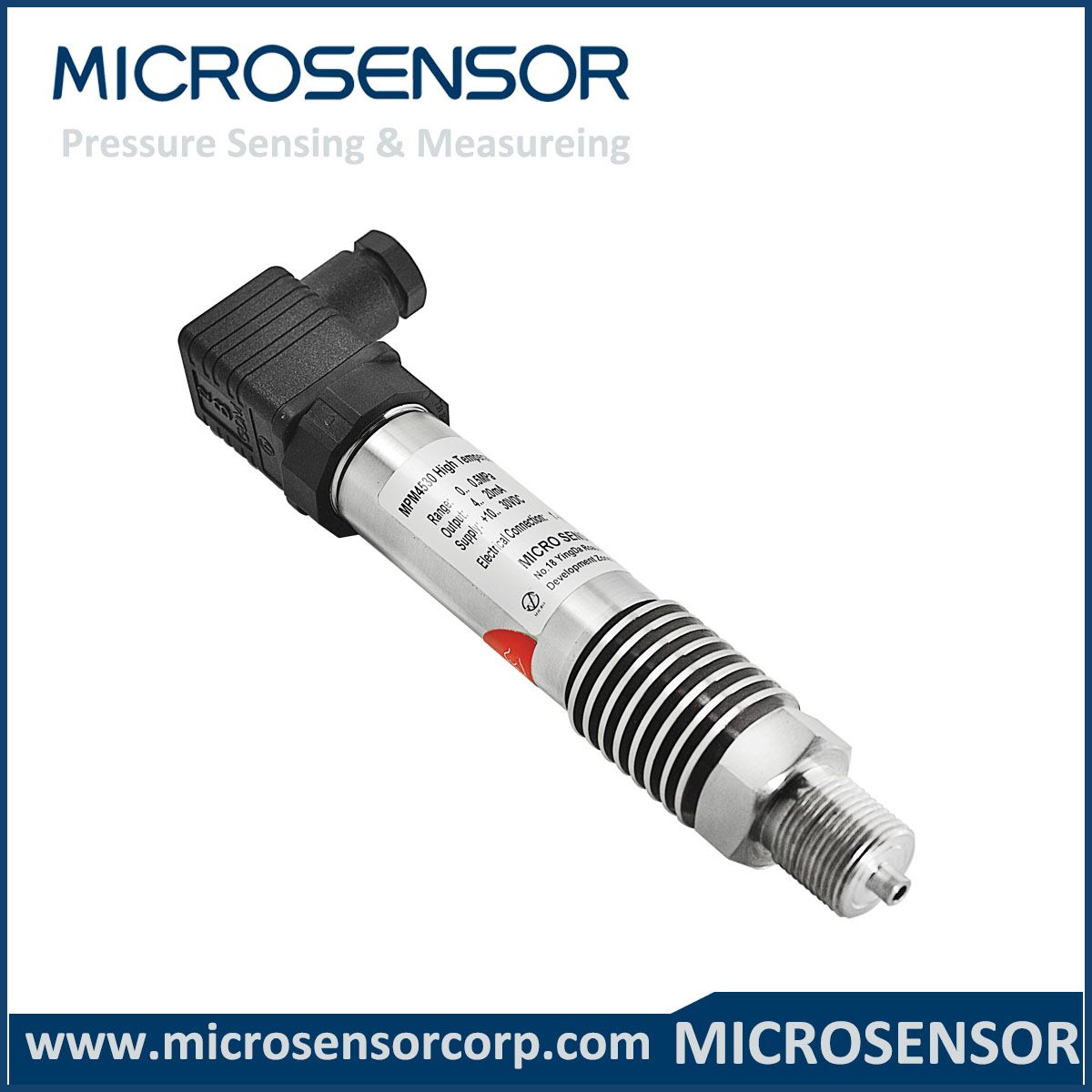

Anti-Shock 150degree High Temperature Pressure Transmitter MPM4530

Name: Anti-Shock 150degree High Temperature Pressure Transmitter MPM4530
Brand: all-electronics-online.com
SKU: 741796155
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4530
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Media Temperature:	up to 150 Degree C
Measurement Range:	0~0.5MPa...100MPa(
Accuracy:	+-0.25%Fs(Typ.)
Long Term Stability:	<=+-0.5%Fs/Y
Protection:	IP65
Housing:	Stainless Steel
Humidity:	0~90%
Media Temperature:	-40~150c
Wire:	2-Wirre
Output Signal:	4~20madc

Product Description

Anti-Shock 150degree High Temperature Pressure Transmitter MPM4530
Features:
1.IP65;
2.Anti-corrosive;
3.Long term stability;
4.Wider temperature

Applications:
1.Medicine;
2.Chemical industry;
3.Oil;
4.Steam;
5.Power station

Specifications:
Pressure range: -0.1MPa0MPa~0.01MPa160MPa(G);0MPa~0.025MPa60MPa(A)
Overpressure:    200%FS or 150MPa(min.value is valid)

Media:           liquid or gas which is compatible with stainless steel
Power supply:           10~30VDC, suggested 24VDC
Output signal:         4~20mADC 2-wire

Load:        RL≤((U-10)/0.02)(Ω)
Accuracy:        ±0.25%FS, ±0.5%FS(including non-lin., rep. and hys.)
Thermal error:      ≤±0.025%FS/ºC(@25ºC)
Long-term stability: ≤±0.5%FS/year
Endurance:       106 pressure cycles
Environment temp. -40ºC~+80ºC
Media temp.:       -40ºC~+150ºC
Relative humility:   0~90%RH
Protection:      IP65
Response frequency: >1kHz

Insulation:       100MΩ,50VDC
Pressure port and housing: stainless steel 1Cr18Ni9Ti

Wiring plug: Hirschmann plug

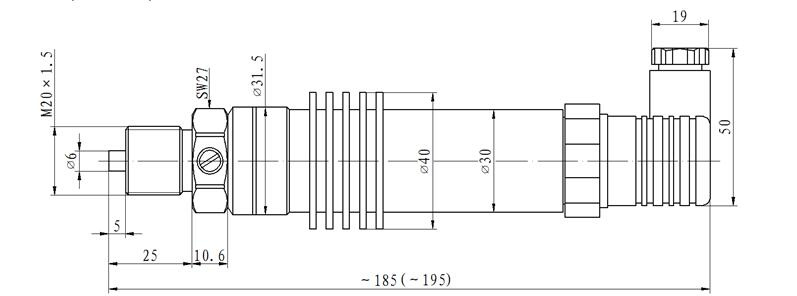

Outlien Construction:(Unit:mm)

G (P <16kPa) Construction

G (P ≥16kPa) And A Construction

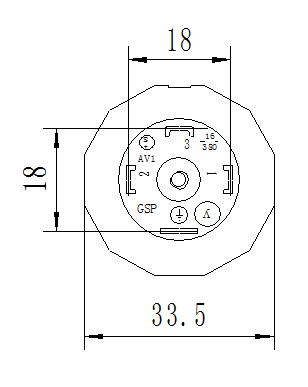

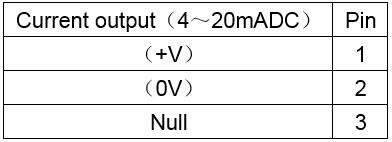

Electric Connection:

Order guide:

MPM4530

High-temperature Pressure Transmitter

Measurement range

0~0.004MPa100MPa

[0~X] kPa or MPa

X= measurement range

Type code

MSV

Pressure range: -0.1MPa0~0.004MPa160MPa

Code

Output signal

4~20mADC

Code

Others

M20×1.5 male, waterline seal

Gauge

Absolute (only for type MSV)

MPM4530 [0~2]MPa ASV E C5G the whole spec
