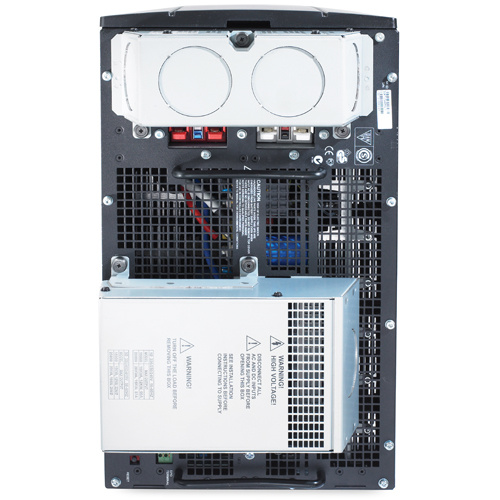

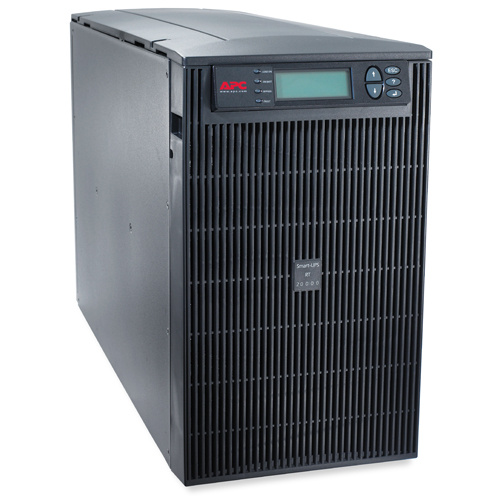

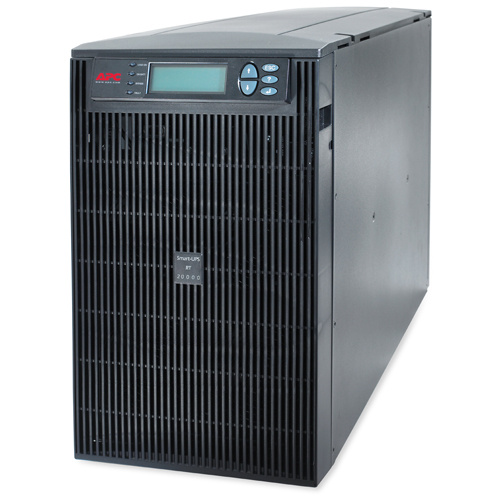

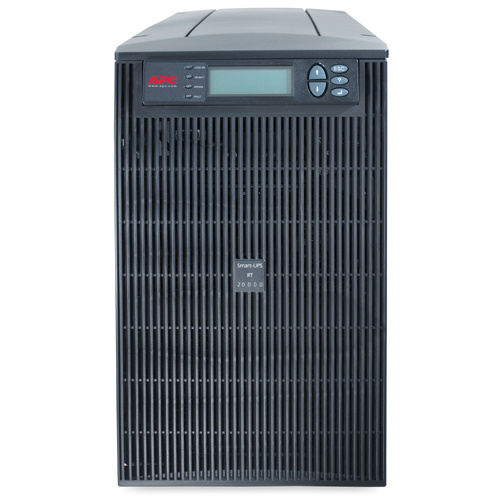

APC 20kVA Rack Power Supply UPS Surt20kuxich

Name: APC 20kVA Rack Power Supply UPS Surt20kuxich
Brand: all-electronics-online.com
SKU: 816699455
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	US $ 5400-5670/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SURT20KUXICH
Weight:	68kg
Rack Height:	6u
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	APC

Product Description

APC Smart-UPS 2000VA 230V ,20KW Rack UPS power supply no battery
SURT20KUXICH

Output

Output power capacity
16kWatts /20 kVA
Max Configurable Power (Watts)
16kWatts / 20 kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(1) IEC 320 C19
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms typical
Bypass
Optional External Bypass

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
