APC Back-up 550va 330W Online UPS Power Supply Bx550ci-Cn

Name: APC Back-up 550va 330W Online UPS Power Supply Bx550ci-Cn
Brand: all-electronics-online.com
SKU: 817761765
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 1-65/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BX550CI-CN
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	APC

Product Description

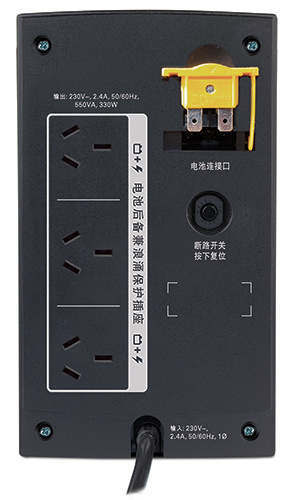

APC back-up 550VA 330W online ups power supply

BX550CI-CN

Output

Output power capacity
330Watts /550VA
Max Configurable Power (Watts)
330Watts / 550kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(1) IEC 320 C19
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms typical
Bypass
Optional External Bypass

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
10hour(s)
Replacement Battery
APC RBC125
Expected Battery Life (years)
3 - 5
RBC Quantity
1

Physical

Maximum height
185mm , 18.5cm
Maximum width
115mm , 11.5cm
Maximun depth
218mm , 21.8cm
Net weight
4.95kg
Shipping weight
5.50kg
Shipping height
253mm , 25.3cm
Shipping width
196mm , 19.6cm
Shipping depth
298mm , 29.8cm
Color
Black
Units per pallet
45

We supply UPS power supplier and batteries of APC, Emerson, Santak, Panosonic, CSB, YUASA, LEOCH and etc. With high quality, favorable price, thinkful service, we are trying utmost to give you a pleasant and satisfactory experience of contacting with us.

Our products has been shipped to Russian, USA, Malaysia, Arab, India and etc, and also got good positive feedback from customers.

We sincerely wish to work business with the customers all over the world. And we make sure that will offer the satisfactory products with reasonal price and give nice service for you.
