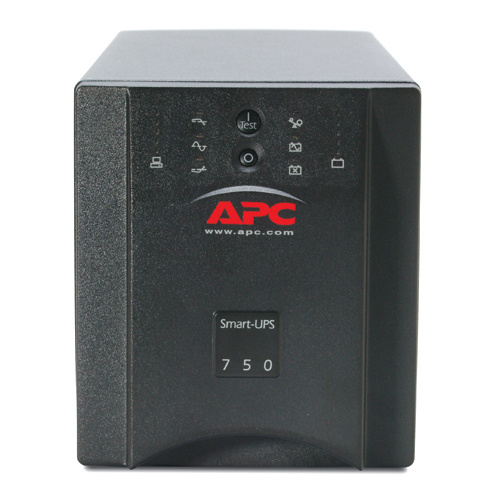

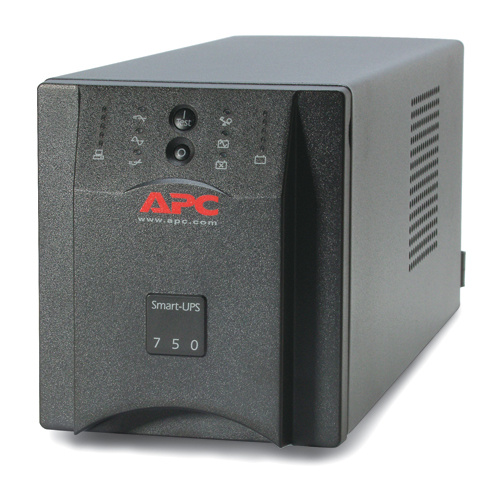

APC Smart -UPS 750va 500W UPS Power Supply with Ce Approval

Name: APC Smart -UPS 750va 500W UPS Power Supply with Ce Approval
Brand: all-electronics-online.com
SKU: 816262715
Availability: InStock
Rating: 4.8 (69 reviews)

Price:	US $ 235-270/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUA750I
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Application:	Machine
Brand:	APC

Product Description

APC Smart-UPS 750VA USB & Serial 230V

Output

Output power capacity
500Watts / 750VA
Max Configurable Power (Watts)
500Watts / 750VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(6) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2ms typical

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320-C14 inlet
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC48
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
149
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
DB-9 RS-232 , SmartSlot , USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
340Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
157mm , 15.7cm
Maximum Width
137mm , 13.7cm
Maximum Depth
361mm , 36.1cm
Net Weight
13.18kg
Shipping weight
14.55kg
Shipping Height
290mm , 29.0cm
Shipping Width
270mm , 27.0cm
Shipping Depth
500mm , 50.0cm
Color
Black
Master Carton Units
1.0
Units per Pallet
24.0

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
90.0BTU/hr
