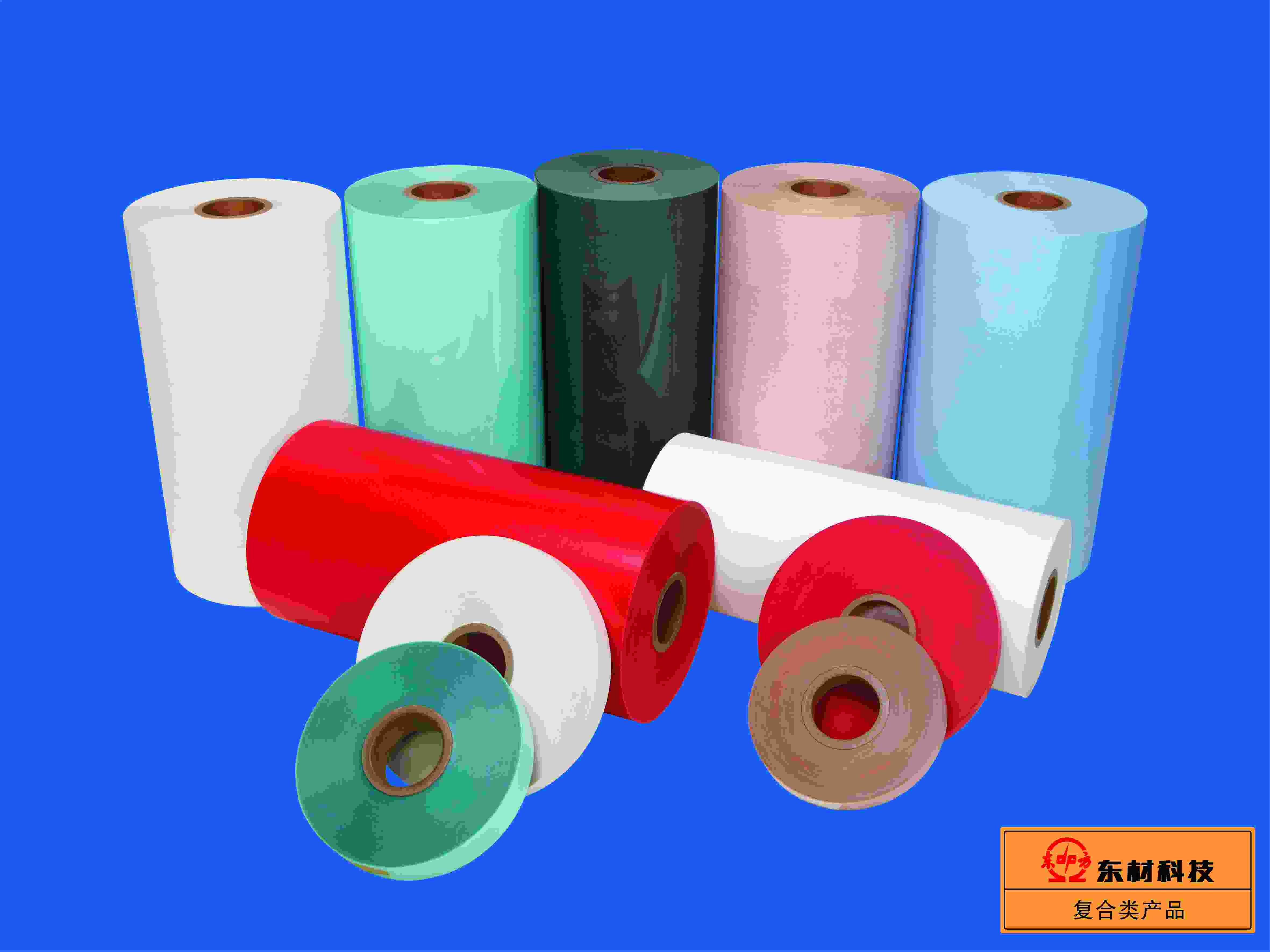

Aramid Polyimide Film Laminates

Name: Aramid Polyimide Film Laminates
Brand: all-electronics-online.com
SKU: 714283572
Availability: InStock
Rating: 4.4 (126 reviews)

Price:	US $ 29.8kg
Min Order:	50kg
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6650, AHA
Max. Width:	900mm-1800mm
Thickness:	0.18mm - 0.50mm
Application:	Hv Motors
Type:	Insulation Paper
Chemistry:	Hybrid Insulation
Thermal Rating:	H 180
Maximum Voltage:	10KV~20KV
Material:	Polyaramid Paper/Polyimide Film
Certification:	ISO14001, Ohsas18001, ISO10012, Cnas
Color:	Natural Color
Brand:	Dongfang

Product Description

6650 Polyimide film/Aramid paper flexible laminate (AHA) is a three-layer flexible laminate in which each side of polyimide film (H) is bonded with one layer of polyaramide fibre paper (Nomex). 6650 is presently the most advanced electric insulating flexible laminate. It has excellent thermal resistance, dielectric property and mechanical property. It is used for slot insulation, inetrphase insulation, interturn insulation and liner insulation in H class electrical motors and electrical appliances and it can also be used in some special places in Class B or F motors. 6650 passed SGS test for toxic and hazardous substance detection.

1 Technical requirements

1.1 Appearance requirement should accord with stipulations of Part I: Definition & General Requirement, Electrical

Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).

1.2 Dimension:

Nominal width:900 mm+/-10mm. Nominal weight: 50+/-5kg /Roll.

The splices shall not be more than 3 in a roll.

The standard values for 6650 are shown in Table 1 and relevant typical values shown in Table 2.

2 Test method

As per the stipulations in Part II: Test Method, Electrical Insulating Flexible Laminates, GB/T 5591.2-2002

(MOD with IEC60626-2: 1995).

Testing for thermal resistance shall be as per the relative stipulations in JB3730-1999.

3 Packing, Transportation and Storage

3.1 6650 is supplied in rolls, sheet or tape and packed in cartons or/and pallets.

3.2 6650 should be stored in clean & dry warehouse with temperature below 40ºC. Keep away from fire, heat and direct sunshine.
3.3 The other requirements shall accord with the stipulations in Part I: Definition & General Requirement, Electrical

Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).

4 Application and Remarks

According to customer¡ request, we can produce two-layer laminate NH.

Table1: Standard values for 6650 (AHA)

No.					Properties						Unit				Standard values
1				Nominal thickness							mm	0.15	0.18	0.20		0.23			0.25		0.30	0.35
2				Thickness tolerance							mm	+/-0.02	+/-0.03							+/-0.04
3				Grammage (only for reference)							g/m²	155	195	210			230		300		335	370
					MD		Not folded					≥140	≥160	≥160		≥180			≥210		≥250	≥270
4		Tensile strength			MD		After folded			N/10mm		≥100	≥120	≥120		≥130			≥180		≥180	≥190
							After folded					≥100	≥120	≥120		≥130			≥180		≥180	≥190
					TD		Not folded					≥80	≥100	≥100		≥110			≥140		≥160	≥170
							Not folded					≥80	≥100	≥100		≥110			≥140		≥160	≥170
							After folded					≥70	≥90		≥90		≥80		≥120		≥130	≥140
							After folded					≥70	≥90		≥90		≥80		≥120		≥130	≥140
5				Elongation			MD			%							≥10
5				Elongation			TD			%								≥8
							TD											≥8
6				Breakdown voltage			Not folded				kV	≥9					≥10				≥12
6				Breakdown voltage			After folded				kV	≥8					≥9				≥10
							After folded					≥8					≥9				≥10
7				Bonding property at room temp.						-					No delamination
8				200ºC+/-2ºC, 10min						-		no delamination, no bubble, no adhesive flow
8				Bonding property at 200ºC+/-2ºC, 10min						-		no delamination, no bubble, no adhesive flow
				Bonding property at 200ºC+/-2ºC, 10min
9			Temperature index of heat-resistance in a long term (TI)							-							≥180
							Table1: Typical values for 6650 (AHA)

	No.			Properties				Unit					Standard values
	1			Nominal thickness				mm		0.15		0.18	0.20		0.23			0.25		0.30		0.35
	2			Thickness tolerance				mm			0.005	0.010								0.015
	3			Grammage				g/m²			160	198	210		235			310		340		365
							Not folded				162	180	200		230			268		350		430
	4			Tensile strength	MD	After folded		N/10mm			157	175	195		200			268		340		420
	4			Tensile strength			Not folded	N/10mm			102	115	130		150			170		210		268
					TD		Not folded				102	115	130		150			170		210		268
					TD	After folded					100	105	126		150			168		205		240
						After folded					100	105	126		150			168		205		240
	5			Elongation			MD		%					20
	5			Elongation			TD							18
							TD							18
	6			Breakdown voltage			Not folded		kV		11	12	14		15				15	15		15
	6			Breakdown voltage		After folded			kV		10	11	12		12				13	13.5		13.5
						After folded					10	11	12		12				13	13.5		13.5
	7			Bonding property at room temp.					-				No delamination
	8			200ºC+/-2ºC, 10min					-		no delamination, no bubble, no adhesive flow
	8			Bonding property at 200ºC+/-2ºC, 10min					-		no delamination, no bubble, no adhesive flow
				Bonding property at 200ºC+/-2ºC, 10min

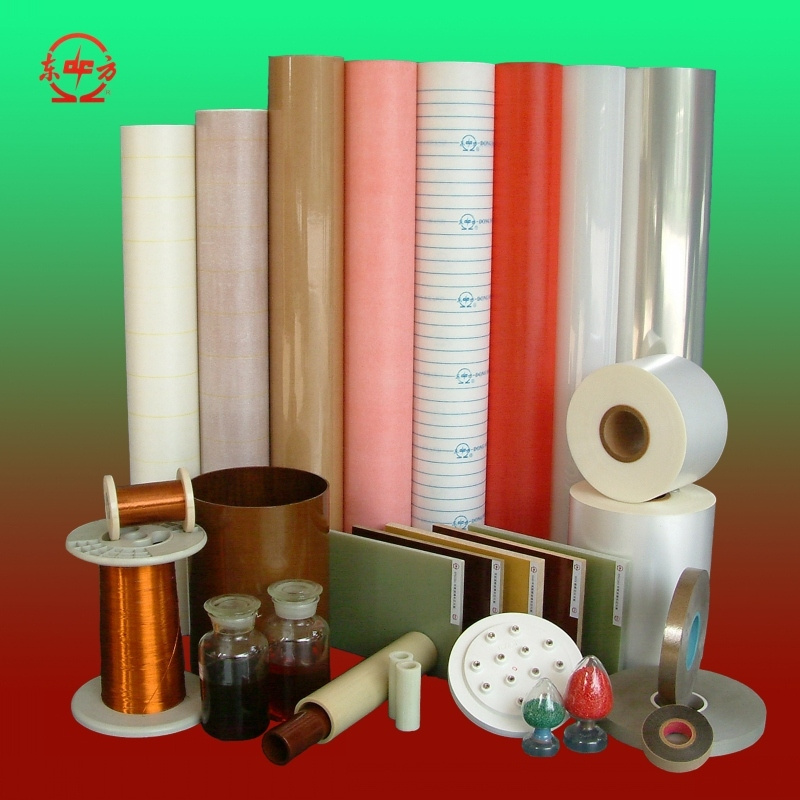

Sichuan Dongfang Insulating Material Co., Ltd. ( Dongfang for short ) is the key subsidiary company of Sichuan EM Technology Co., Ltd. ( EMT for short ). EMT is a public company which specializes in R&D, manufacturing and selling chemical new materials. It devotes itself in providing safe and environment-friendly new material solution to create an even better life for society.
