| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Outer Sheath Material: |
PE |
| Metallic Strengthen Member: |
Steel Wire |
| Filler: |
Filling Compound |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiremen |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct, Aerial |
| Loose Tube Material: |
PBT with Jerry |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description

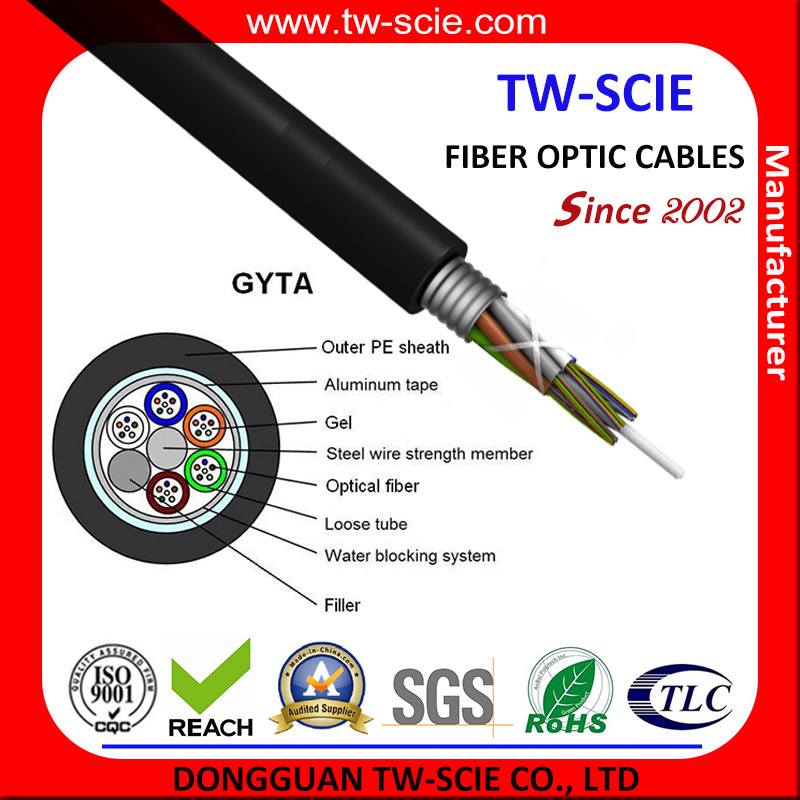

12 core Strands GYTA Armored Directly Buried Loose Tube Metal Strength bulk fiber optic cable

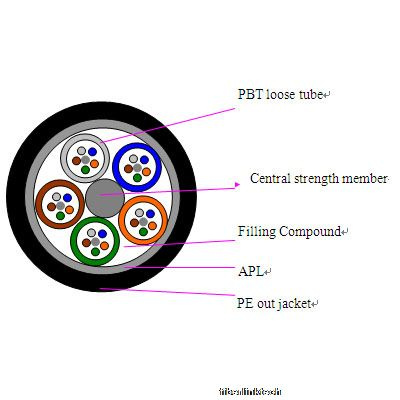

Product Description In the GYTA fiber optic cable, singlemode/multimode fibers are positioned in the loose tubes, the tubes are filled with water
blockin filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL is
applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
Standards
Comply with standard YD/T 901-2009 as well as IEC 60794-1
Characterisics
The GYTA fiber optic cable Characterisics
1. Excellent mechanical and temperature performance guaranteed by the accurate excess Fiber length
2.Critical protection to fibers
3.The following measures are taken to ensure the
water blocking performance of the cable.
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
- 100% cable core filling
Technical Data
The technical data of GYTA fiber optic cable
| Technical Parameters: |
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature |
|
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
| 2 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | 20 |
| 4 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | 20 |
| 6 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | 20 |
| 8 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | 20 |
| 12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | 20 |
Note:
1. Only a part of GYTA cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Company Information
Shenzhen KSD Cable Co.,Ltd(KSD) is a professional manufacturer of Optical Fiber 2-288cores. KSD specializes in the manufacture and sale of outdoor fiber optic cables/ indoor fiber optic cables/FTTH drop fiber optic cables/ADSS cable/OPGW cable/OPPC cable etc..We have passed ISO9001 certification standards.We have an annual production capacity more then 800000km of optical fiber cables.
Production process
GYTA fiber optic cable producting
1.Fiber Testing
2.Fiber Coloring in 12 colors based on Fiber Color Identification
3.Fiber coating
4.Fiber tubes stranding with center strength member
5.Fiber cable jacketing outer sheath together with armored material
6.Finished fiber optic cable reeled in fumigated wooden drum
GYTA fiber optic cable testing
Twisting,Temperature Cycling,Tensile Testing,Water Prevention etc.
Certifications
We are an reliable manufacturer of fiber optic cable with following certifications, which makes us can promise that our fiber optic cable has one year warranty.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
