| Prod Model: |
Armoured Fiber Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Optical Patch Cord: |
Fiber Jumper |
| Fiber Adapter: |
Fiiber Cable |
| Fiber Connector: |
Fiber Patch Cord |
| Warranty: |
10 Years |
| Connector Type: |
Sc, FC, St, LC,Odc,Iplc,Pdlc, MTRJ, MPO,MTP,Mu,SMA |
| Fiber Type: |
OS1, OS2, Om1, Om2, Om3, Om4 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC |
| Certification: |
ISO9001 |
| Sheath Material: |
PVC or LSZH |
Product Description
Details:

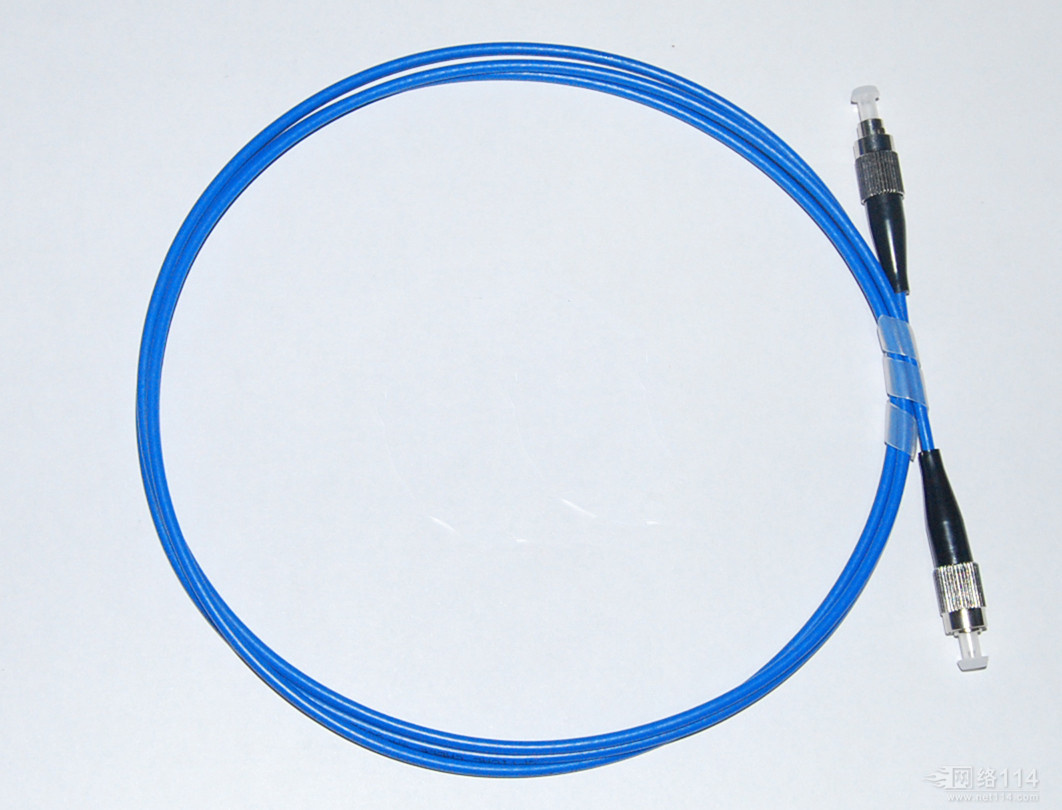

Fiber optic armored cable which layer of spiral stainless steel around the optical fiber.with Small, stronger resist shock ,light weight,more flexible,stronger pressure ...etc excellent environmental
characteristics to protect the high-speed network from animal bits and other bad situation.
it is the first choice of optical transmission products used in building cabling, equipment room key
optical connection, field operations, sensor detection, FTTH, fiber to the operations, sensor detection, FTTH, fiber to the desktop in complex environmennt.
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector,half the size of the ST.
Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
Parameter |
Unit |
FC, SC, LC/ Armoured fiber patch cord |
|
|
|
|
|
|
ST, MU |
|
|
|
|
MT-RJ, MPO |
|
|
|
|
E2000 |
|
|
|
|
|
|
SM |
|
|
|
|
MM |
SM |
|
|
MM |
SM |
|
|
MM |
SM |
|
|
|
|
|
|
|
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
|
|
|
|
|
|
|
|
|
|
|
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating wavelength |
nm |
1310, 1510 |
|
|
|
|
|
|
1310, 1510 |
|
|
|
|
1310, 1510 |
|
|
|
|
1310, 1510 |
|
|
Exchangeability |
dB |
≤0.2 |
|
|
|
|
|
|
≤0.2 |
|
|
|
|
≤0.2 |
|
|
|
|
≤0.2 |
|
|
Vibration |
dB |
≤0.2 |
|
|
|
|
|
|
≤0.2 |
|
|
|
|
≤0.2 |
|
|
|
|
≤0.2 |
|
|
Operating temperature |
ºC |
-40~75 |
|
|
|
|
|
|
-40~75 |
|
|
|
|
-40~75 |
|
|
|
|
-40~75 |
|
|
Storage temperature |
ºC |
-45~85 |
|
|
|
|
|
|
-45~85 |
|
|
|
|
-45~85 |
|
|
|
|
-45~85 |
|
|
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
|
|
|
|
|
|
φ3.0, φ2.0, φ0.9 |
|
|
|
|
φ3.0, φ2.0, φ0.9 |
|
|
|
|
φ3.0, φ2.0, φ0.9 |
|
|
Order information:
| Fiber Optic Patch Cord: | FC/ | APC- | SC/ | UPC/ | SM/ | Ø3/ | L Meter/ | DX |
| (Number) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Plating material | PVC, LSZH |
| 1.Connector | FC,SC,ST,LC,MU,SMA,E2000... |
| 2.Inserted core cover | PC,UPC or APC |
| 3.Connector | FC,SC,ST,LC,MU,SMA,E2000... |
| 4.Inserted core cover | PC,UPC or APC |
| 5.Type | SM or MM |
| 6.Line diameter (mm) | Ø3, Ø2, Ø1.6, Ø0.9 |
| 7.Length (m) | L=1.2.3.4.......meter |
| 8.Classification | SX or DX
|
