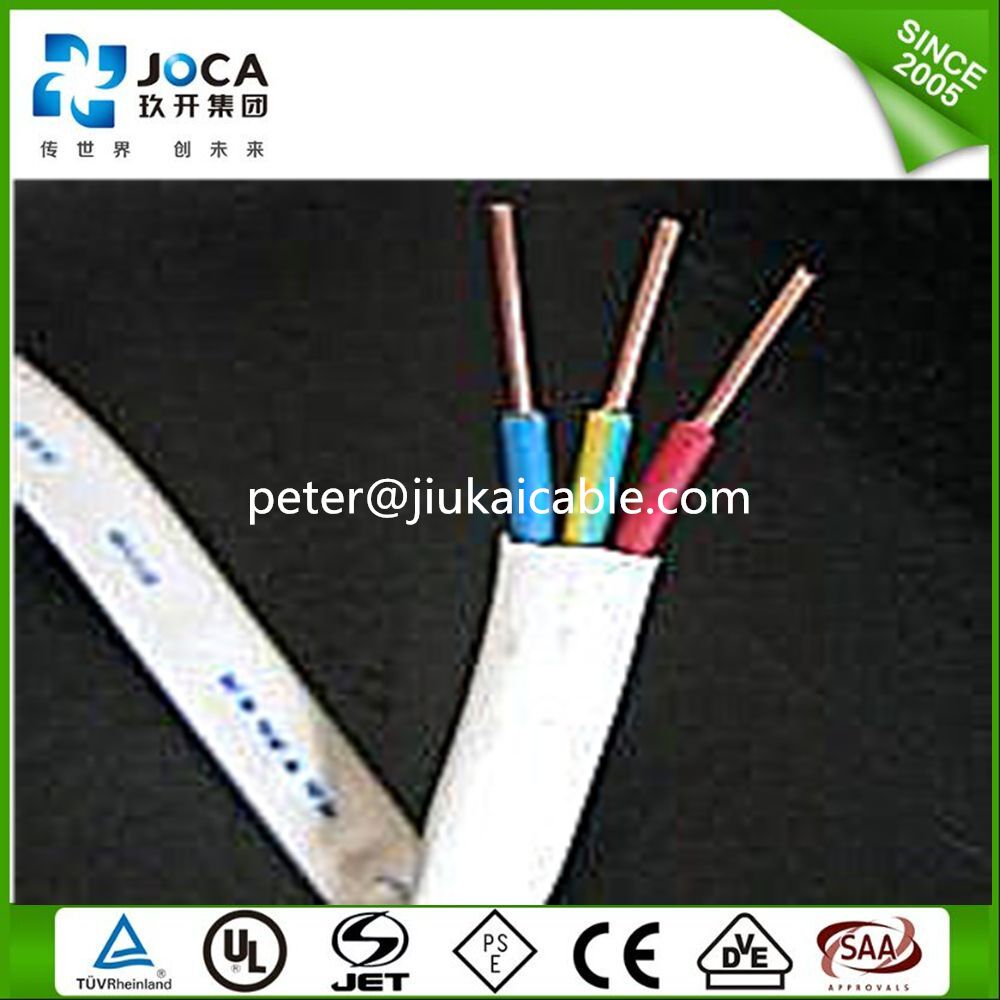

AS/NZS5000.2 Stranded Core TPS Electrical Wire Flat Cable

Prod Model:	TPS Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cross-Sectional Area:	2.5mm2X2c+E/2cx4mm2/2cx4.0mm2+E
Product Standard:	AS/NZS 5000.2/ IEC60227
Color Insulated:	Black/Red/Green&Yellow
Sheath Color:	White or as Per Customer's Request
Application Scope:	Flame Retardant
Type:	Insulated
Conductor Type:	Stranded
Application:	Industry/Construction
Insulation Material:	PVC
Certification:	TUV/SAA
Brand:	Jiukai
Material Shape:	Flat Cable
Conductor Material:	Bare Copper

Product Description

Production Description
Appilcation:This cable are suited for cabling from the Fire Alarm, OWS and EWIS panels to detectors, speakers, horns, strobes, field modules, etc. TPS cables are PVC insulated and have an "Easy Tear" outer sheath making these cables easy to strip and terminate.
Construction
1.Conductor: 100% bare copper
2.Insulation: V-90 PVC, BLACK, RED, GREEN/YELLOW
3. Sheath: 3V-90 PVC, WHITE
Technical Specification
1.Voltage: 450/750V,300/500V
2.Working temperature: 90 celsius degree
Product Standard:AS/NZS 5000.2/ IEC60227
Remarks: Special requirement is available, like anti-oil, anti-UV, flame-resistant; We have achieved the SAA certificate,the cable is in super quality.

Specification for the TPS Cable

Flat TPS 450/750 V 2/C
Size	Conductor Structure	Overall Diameter	Cable Weight
mm2	(No./mm)	Major x Minor	kg/km
		mm
1	1/1.13	6.7 x 4.3	55
1.5	7/0.50	7.4 x 4.7	70
2.5	7/0.67	9.0 x 5.5	105
4	7/0.85	10.6 x 6.5	165
6	7/1.04	11.8 x 7.1	215
10	7/1.35	14.4 x 8.5	350
16	7/1.70	16.7 x 9.7	435
Flat TPS 450/750 V 2/C+E
1	1/1.13	4.6 x 9.4	90
1.5	7/0.50	4.7 x 10.2	110
1.5	1/1.38	4.7 x 9.9	115
2.5	1/1.78	5.5 x 12.1	175
2.5	7/0.67	5.5 x 12.4	165
4	7/0.85	6.5 x 14.0	200
6	7/1.04	7.1 x 15.2	285
10	7/1.35	8.5 x 18.6	425
16	7/1.70	9.7 x 21.4	610
Flat TPS 450/750 V 3/C
1	1/1.13	9.1 x 4.3	75
1.5	7/0.50	10.2 x 4.7	100
2.5	7/0.67	12.4 x 5.5	160
4	7/0.85	14.7 x 6.5	245
Flat TPS Cable 450/750 V 3/C+E
1	1/1.13	11.5 x 4.3	95
1.5	7/0.50	12.9 x 4.7	125
2.5	7/0.67	15.9 x 5.5	200
4	7/0.85	18.1 x 6.5	280
6	7/1.04	20.0 x 7.1	365
10	7/1.35	24.5 x 8.5	545
16	7/1.70	28.7 x 9.9	830
Flat TPS 450/750 V 4/C
1	1/1.13	11.5 x 4.3	95
1.5	7/0.50	12.9 x 4.7	125
2.5	7/0.67	15.9 x 5.5	220
4	7/0.85	18.9 x 6.5	320

Parameters for Flat TPS Cable

Phase and neutral cores			Earth core		Oversheath
Conductor area	Insulation thickness	Min. insulation thickness	Conductor area	Min. insulation thickness	Multicore flat		Single core
					Nominal thickness	Min. thickness	Nominal thickness	Min. thickness
mm2	mm	mm	mm2	mm	mm	mm	mm	mm
1.0	0.6	0.44	1.0	0.44	0.9	0.67	0.8	0.58
1.5	0.6	0.44	1.5	0.44	0.9	0.67	0.8	0.58
2.5	0.7	0.53	2.5	0.53	1.0	0.75	0.8	0.58
4	0.8	0.62	2.5	0.53	1.1	0.84	0.9	0.67
6	0.8	0.62	2.5	0.53	1.1	0.84	0.9	0.67
10	1.0	0.80	4	0.62	1.2	0.92	0.9	0.67
16	1.0	0.80	6	0.62	1.3	1.01	1.0	0.75

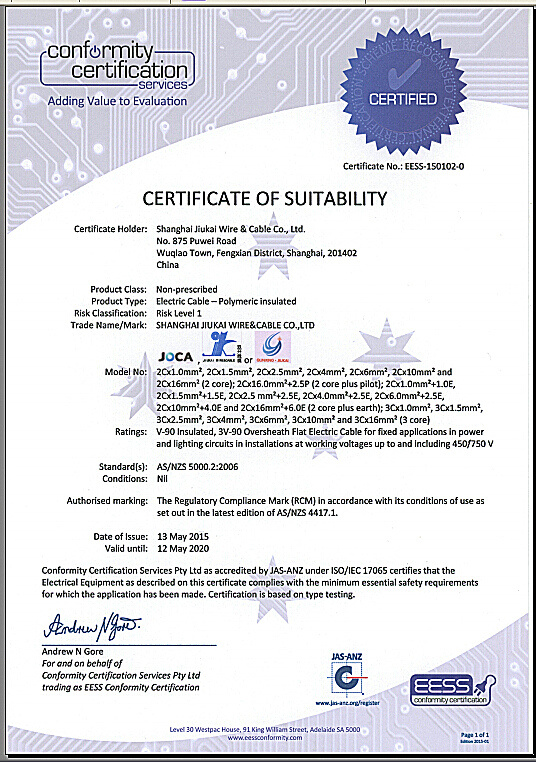

Approval of the Flat TPS Cable

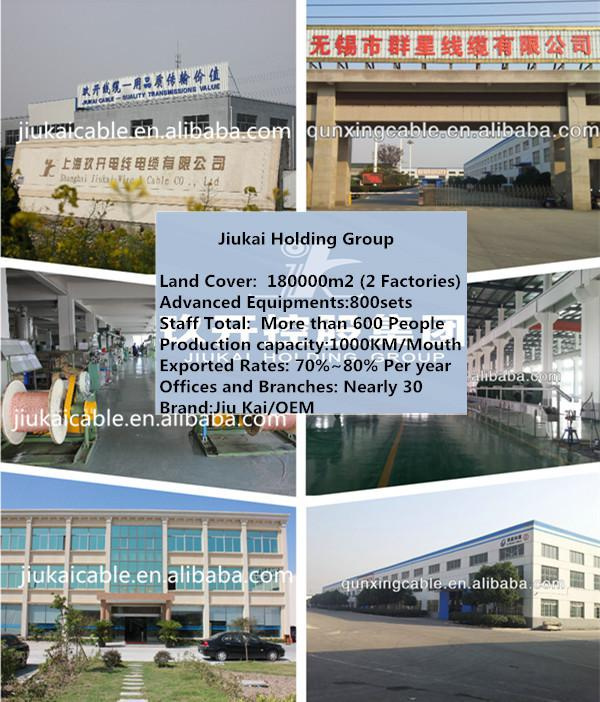

Group Profile
    JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
    With so many years' manufacturing experience , our cables are sold to America, Europe, Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises", "China Top Brand" and "China Cable Manufacturer TOP100".

JOCA GROUP



Packing&Shipping
1.Wooden Drum+Wooden Pallet
2.Wooden Drum+Wooden Box
Remarks:The mainly shipping transportation is ship,but also the DHL will be needed. The goods will be sent by ship if the quantity of the goods is big. It will be sent to the customer by DHL if the quantity of the goods is not big. Of course, All the way of the transportation will be chosen by customer. It is up to the customer.


Our Services


Why choose us
1.Many Years of experience for supplying the OEM and customized cables to many World Leader cable Group.
2.Best service ,Including Trademessenger and Skype 24 hours online , if any questions, Just contact us.
3.Always Work for more profit for customer with our competitive Price .
4.TUV UL Certificates etc. have been  passed .Quality Guarantee for 15years.

FAQ
1.Whether  these products quality assured ?
Our company Wire and Cables have been approved . Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
2.When I want customized products, how to do?
 We have Equipped with professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings / samples are required. Of course, purchase quantity should meet our MOQ.
3.If I want to purchase, how to pay ?
Generally we do  T/T in 30% deposit before production,70% balance against faxing copy of B/L . Also payment terms are negotiable depending on customer's request.
4.After I pay, what about the lead time and shipping method?
Goods can be delivered by  by air express or by sea; International Express as FEDEX, UPS, DHL, TNT;  You can choose the best way as they wish.
As for the Lead time, 10~30 working days.
