at 1500s-409 Line Interactive UPS

Name: at 1500s-409 Line Interactive UPS
Brand: all-electronics-online.com
SKU: 839895345
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 71.41/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT1500S-409
Input:	110V or 220V +- 20%
Output;:	110V or 220V+ - 10%
Wave Form:	Transfer Time Less Than 10ms.
Output PF:	0.6
Product Name:	At1500s-409 Line Interactive UPS
Phase:	Single Phase
Type:	Line Interactive
Protection:	Short Circuit
Classification:	Power
Brand:	Greenmaster

Product Description

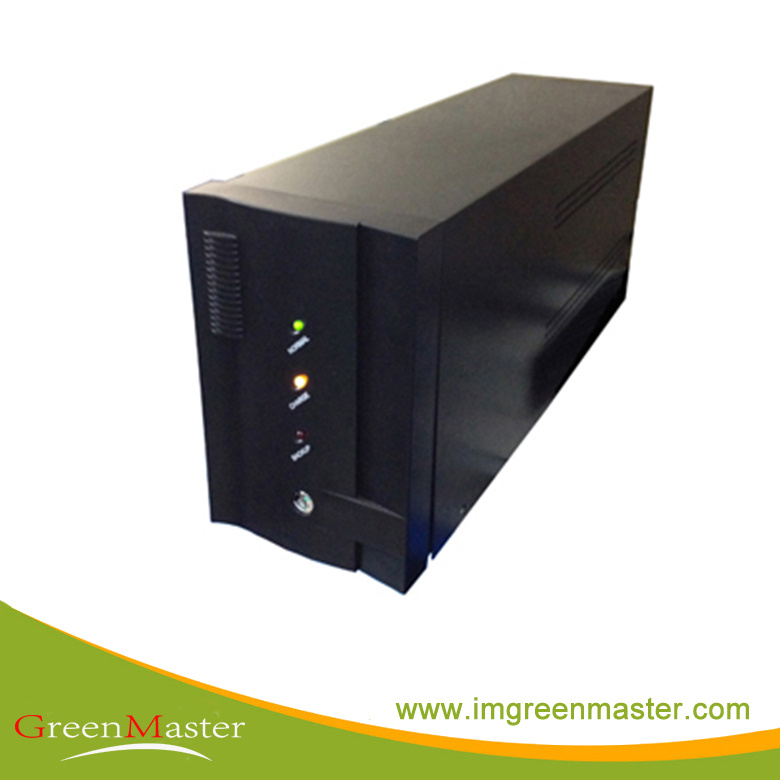

AT1500S-409 Line interactive UPS

* I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 10%

* Capacity:1.5KVA/900W

* Line interactive UPS with Super-long backup time

* Transfer Time:4-6ms normal ,max 10 ms

* DC Voltage:24VDC

* Bat. 2*12AH,4*7,2AH or 4*9AH for choice

Key features:

1.Line-interactive UPS with super-long backup time

2.wide input range with AVR function

3.Protection for short circuit, overload and battery low voltage

4.LED indication and audible alarm function

5.Intelligent battery management

6.with cold start function

7.with AUTO restart function

8.Automatic battery charging while UPS off mode ( Option)

9.RJ11/RJ45 is option

Technical Specifications

ITEM	MODEL	AT1500S-409
Capacity	Output power	1500VA/900W
Input	Voltage range	165~285Vac or 140-280V ±5V; or 88 - 139Vac
Input	Frequency range	45-65HZ
Output	Voltage (battery mode)	220V or 110V ± 10% under AC Mode
	Frequency (battery mode)	50 or 60 ± 6Hz
	Transfer time	Max <10Ms, Normal 4-6Ms
	Waveform	Modified sine wave (battery mode)
Battery	Type	Sealed lead acid, maintenance free
	DC voltage	24VDC
	Battery number	4*9AH/12VDC
	Standby time	around 9mins
	Recharge	After fully discharged, charge 8 hours to 90% capacity
Protecting	overload	Fuse & current limited when overloaded
	Battery low voltage	yes. 20VDC
	Short circuit	Fuse & current limited
	Restart	Auto restart when AC recovery.
Alarm	Battery back-up	Sounding every 4 seconds
	Battery low	Sounding every 1 second
	Overload	Shutdown at once
Indicator	LED Display	for line on, battery back-up, Charging, Fault
Product size		450125190mm
PCS/CTN		2
Carton size	LWH(mm)	5650.4050.290mm,2PCS/CTN
Carton weight	G.W	36

Product Show:

Trade Show:

Certification:

We supply different kinds of LED light. High quality and favorable price. We're pleased to get your Inquiry and we will reply you ASAP. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
