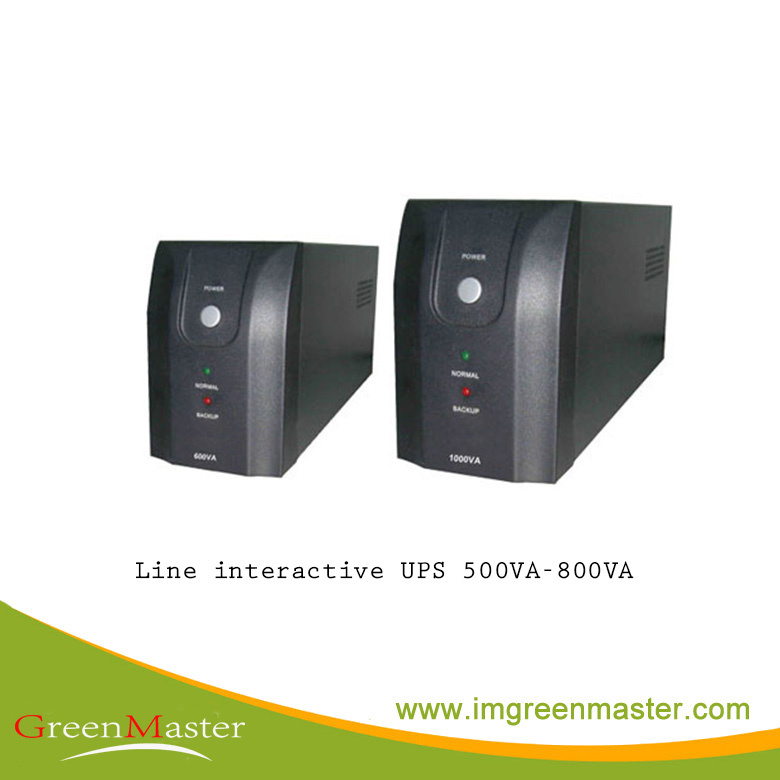

Line Interactive off Line UPS (AT1500)

Prod Model:	AT1500
Input:	110V or 220V +- 20%
Output;:	110V or 220V+ - 10%
Wave Form:	Transfer Time Less Than 10ms.
Output PF:	0.6
Phase:	Single Phase
Type:	Line Interactive
Protection:	Short Circuit
Classification:	UPS
Brand:	Greenmaster

Product Description

Line Interactive off Line UPS (AT1500)

* I/P: 220VAC or 110VAC  , O/P:220VAC  or 110VAC ± 10%

* Capacity:500VA / 600VA / 800VA /1KVA /1.2KVA/1.5KVA

* Output PF: 0.6

* Wave Form:Modified sine wave

* Transfer Time:<10 ms

* DCVoltage:500VA /600VA /800VA /12VDC ,1KVA,1.2KVA/1.5KVA/24VDC

* Bat.:500VA / 600VA:1PCS 7.2AH, 800VA:1PCS 9AH,1KVA /1.2KVA/1.5KVA:2PCS 7.2AH


Key features:

1. Wide input voltage window

2. Boost and Buck AVR

3. Protection for short circuit, overload and battery low voltage

4. LED indication and audible alarm function

5. Intelligent battery management

6. AUTO start function is option

7. Automatic battery charging in UPS off mode ( Option)

8. Cold start function

9. RJ11/RJ45 is option

10. dB9 is option


Capacity:

* AT500/500VA/300W

* AT650/650VA/390W

* AT800/800VA/480W

* AT1000(1kVA/600W)

* AT1200(1.2kVA/720W)

* AT1500(1.5kVA/900W)


Technical Specifications


ITEM	MODEL	AT 500	AT 650	AT 800	AT 1000	AT 1200	AT 1500
Capacity	Output power	500VA/300W	650VA/390W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
Input	Voltage range	165~275Vac±5V (140--280v is option ) or 88 - 139Vac
	Frequency range	50 or 60 ± 2.5Hz
Output	Voltage (battery mode)	220V or 110V ± 10%
	Frequency (battery  mode)	50 or ± 6Hz
	Transfer time	<10Ms
	Waveform	Modified sine wave (battery mode)
Battery	Type	Sealed lead acid, maintenance free
	DC voltage	12VDC
	Battery number	1*12V/7AH		1*12V/9AH	2*12V/7AH	2*12V/7AH	2*7.2AH
	Low battery voltage  protection	9.5V or 10V.
	Standby time	Full load >3min,half load >8min
	Recharge	After fully discharged, charge 8 hours to 90% capacity
Protecting	Output overload	Fuse & current limited when overloaded
	Battery low voltage	Automatically lock out the machine so as to protect the Battery from over discharging
	Short circuit	Fuse & current limited
	Restart	Auto restart when AC recovery.
Alarm	Battery back-up	Sounding every 4 seconds
	Battery low	Sounding every 1 second
	Overload	Shutdown at once
Indicator	LED	LED indicator for line on, battery back-up, UPS cut-off
Package size	L*W*H(mm) 2PCS	590*315*240	385*315*235	400*315*335	480*405*290	480*405*290	480*405*290
Package weight	Kg, 2PCS	9	11	13.4	19.6	19.6	19.6
