| Prod Model: |
AT1500S series |
| Input: |
110V or 220V +- 20% |
| Output;: |
110V or 220V+ - 10% |
| Wave Form: |
Transfer Time Less Than 10ms. |
| Output PF: |
0.6 |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Brand: |
Kemapower |
Product Description

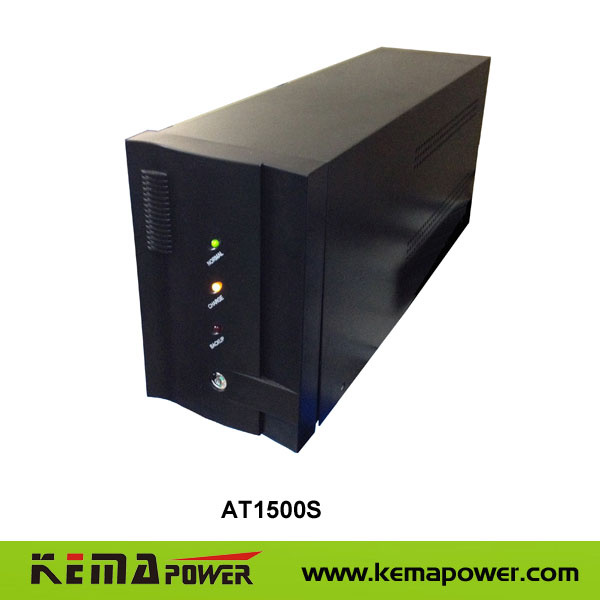

Line Interactive off Line UPS AT1500S For LED Display * I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 10%
* Capacity:1.5KVA/900W
* Line interactive UPS with Super-long backup time
* Transfer Time:4-6ms normal ,max 10 ms
* DC Voltage:24VDC
* Bat. 2*12AH,4*7,2AH or 4*9AH for choice
Key features:1.Line-interactive UPS with super-long backup time
2.wide input range with AVR function
3.Protection for short circuit, overload and battery low voltage
4.LED indication and audible alarm function
5.Intelligent battery management
6.with cold start function
7.with AUTO restart function
8.Automatic battery charging while UPS off mode ( Option)
9.RJ11/RJ45 is option
Technical Specifications | ITEM | MODEL | AT1500S-407 | AT1500S-409 | AT1500S-212 |
| Capacity | Output power | 1500VA/900W | 1500VA/900W | 1500VA/900W |
| Input | Voltage range | 165~285Vac or 140-280V ±5V; or 88 - 139Vac |
| Frequency range | 45-65HZ |
| Output | Voltage (battery mode) | 220V or 110V ± 10% under AC Mode |
| Frequency (battery mode) | 50 or 60 ± 6Hz |
| Transfer time | Max <10Ms, Normal 4-6Ms |
| Waveform | Modified sine wave (battery mode) |
| Battery | Type | Sealed lead acid, maintenance free |
| DC voltage | 24VDC |
| Battery number | 4*7.2AH/12VDC | 4*9AH/12VDC | 2*12AH/12VDC |
| Standby time | around 8Mins | around 9mins | Around 6Mins |
| Recharge | After fully discharged, charge 8 hours to 90% capacity |
| Protecting | overload | Fuse & current limited when overloaded |
| Battery low voltage | yes. 20VDC |
| Short circuit | Fuse & current limited |
| Restart | Auto restart when AC recovery. |
| Alarm | Battery back-up | Sounding every 4 seconds |
| Battery low | Sounding every 1 second |
| Overload | Shutdown at once |
| Indicator | LED Display | for line on, battery back-up, Charging, Fault |
| Product size | | 450*125*190mm |
| PCS/CTN | | 2 | 2 | 2 |
| Carton size | L*W*H(mm) | 565*0.405*0.290mm,2PCS/CTN |
| Carton weight | G.W | 33.6 | 36 | 30 |

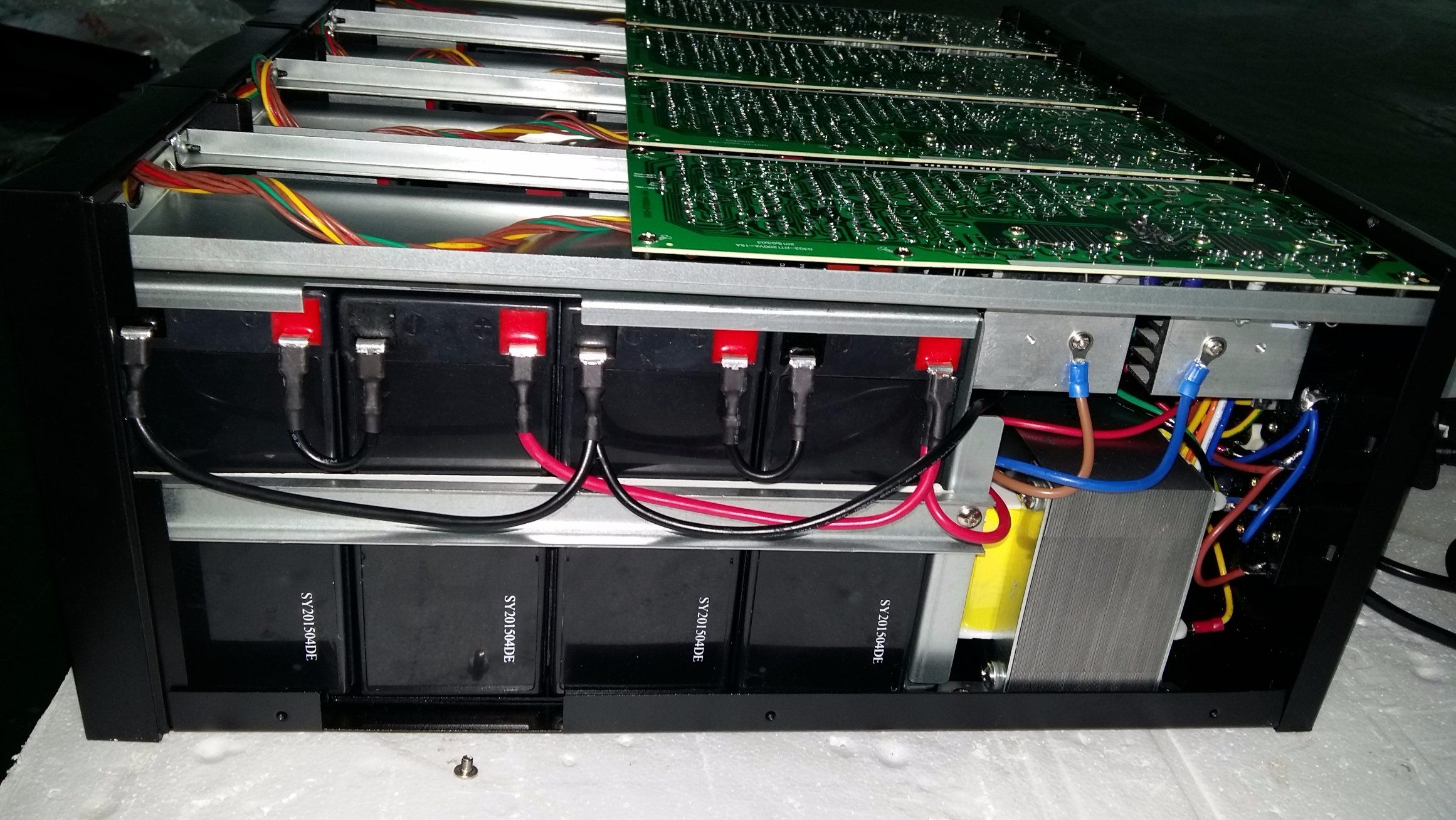

Product Show:
Trade Show:
Certification:
