Australia Hot Seller IP67 Terminal Mc4 DC Solar Connector

Name: Australia Hot Seller IP67 Terminal Mc4 DC Solar Connector
Brand: all-electronics-online.com
SKU: 701990332
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 10-100/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	D4C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:	IP67
Rated Current:	30A
Type:	Hook Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Norm
Certification:	CE,TUV
Brand:	Bangzhao or OEM

Product Description

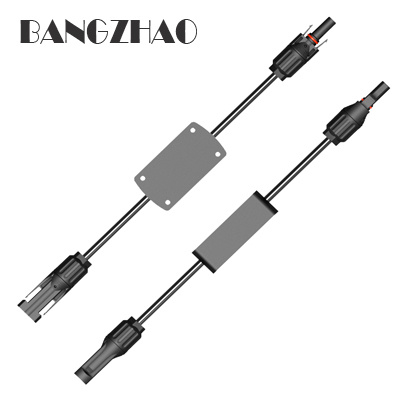

Australia hot seller of IP67 terminal MC4 DC solar connector for solar panel systems

Product No.	D4C
Rated voltage	TUV 1000V DC / UL 600V DC
Rated current	30A
Suitable cable cross sections	2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWG
Terminal size	Φ4.0mm
Test voltage	DC 8KV 1min
Pollution degree	2
Protection class	Class II
Terminal Material	Tinned copper
Contact resistance	≤ 5mΩ
Insulation Materials	PPO
IP rating	IP67(IEC 60529)
Pull-out force	≥ 50N
Insertion Force	≤ 50N
Test temperature	-40ºC~ +85ºC
Flame Class	UL94V - 0

1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.
