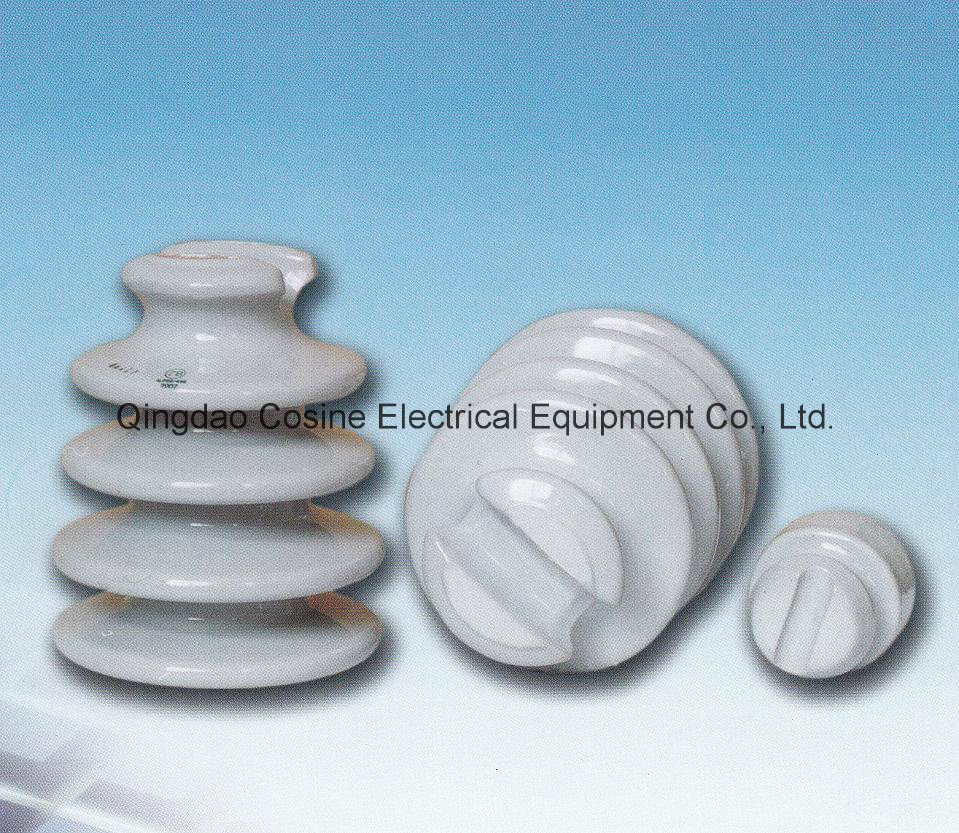

Australian Standard Type Pin porcelain Insulators with Zinc Thimbles

Name: Australian Standard Type Pin porcelain Insulators with Zinc Thimbles
Brand: all-electronics-online.com
SKU: 694875942
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP. LV /SLP11/180 /ALP11/275 /ALP22/450 /ALP33/920
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
As Standard:	Pin Insulators(as Standard Type)
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	Pin Insulators(as Standard Type)

Product Description

1. Name: ANAS Standard Type Pin Insulators with Zinc Thimbles
2. Specification: LP. LV /SLP11/180 /ALP11/275 /ALP22/450 /ALP33/920,
These pin type insulators are furnished with cemented zinc thimbles designed to fit the pins specified in AS 1154 Part 2.
3. Style: ANAS Standard Type Pin Insulators
4. Standard: Comply with the Australian Standard
5. Colour: The glaze colors of the insulators are Brown or light gray or meet client`s requirment

AS Class			LP.LV		SLP11/180		ALP11/275		ALP22/450		ALP33/920
Normal Voltage,kV			-		11		11		22		33
Creepage Distance,mm			-		180		275		450		920
Dimensions,mm	H	91		107		168		200		320
	D	82		140		136		160		240
	d	48		76		76		76		76
	R1	11		16		16		16		16
	R2	11		13		13		16		16
Thread Pattern			A		A		C		C		C
Cantilever Strength,kN			7		7		7		11		11
Power Frequency Withstand Voltage	Dry,kV	-		60		60		-		260
	Wet,kV	-		32		32		50		70
Critical Impulse Withstand,kV			-		95		95		150		200
Power Frequency Puncture Voltage,kV			-		95		95		130		130
Net Weight,Approx.,kg			0.8		1.2		1.8		-		14.6

For more about LP. LV /SLP11/180 /ALP11/275 /ALP22/450 /ALP33/920 or ANAS Standard Type Pin Insulators with Zinc Thimbles or other insulators, pls contact us freely, such as polymeric insulator, glass insulator.

Company Profile:
QINGDAO COSINE electrical equipment specializes in supplying insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.

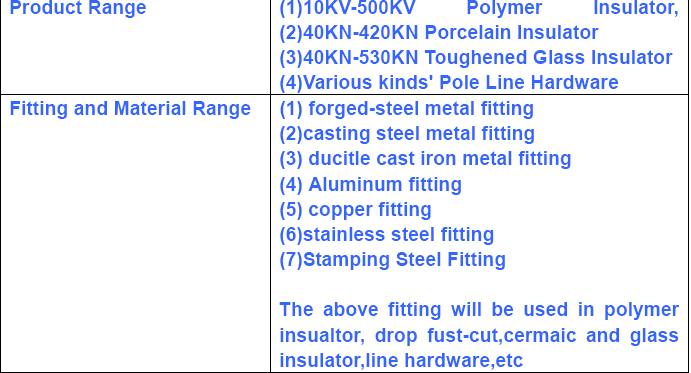

Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds' pole line hardware. All the insulators have been produced by modern equipment, For example 500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order control the quality from blank.

We pay more attention to the product quality all time. All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Base on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001: 2008 certificate.
Package:

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. Good quality warranty
7. We can manufacture it according to customers requirements.
8. We have exported to many countries such as USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile,etc
9. Strictly test with IEC Standard ot ANSI Standard
10. Got ISO9001 certificate for keeping good quality

Hope you will interest in our products and Warmly welcome to cooperate with you to make mutual benefits.Looking forward to your inquiry!

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
