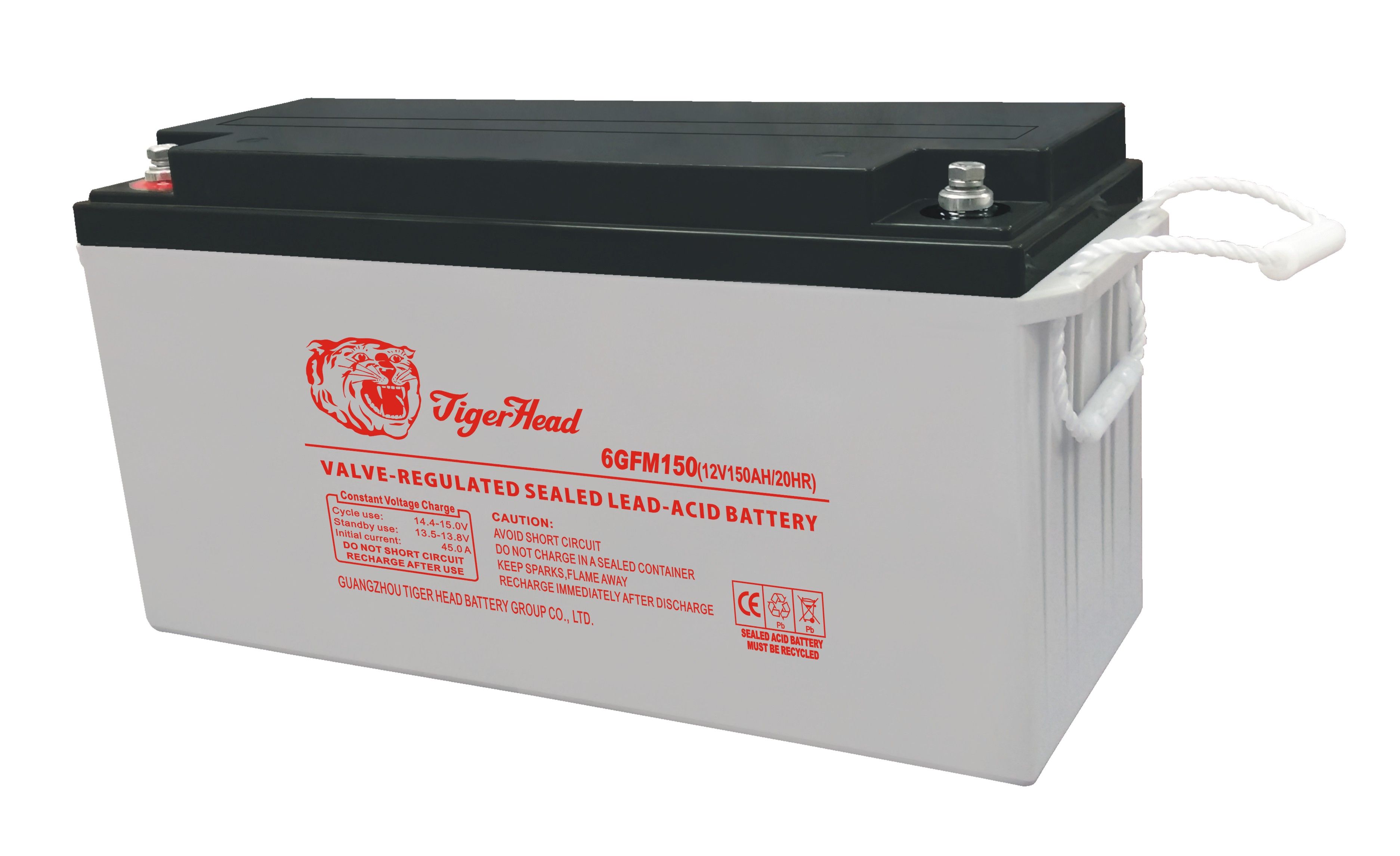

Auto Control System AGM Battery 12V150ah
Price: |
Negotiable/Piece |
Min Order: |
100/Piece |
Pay Type: |
T/T |
Prod Model: |
6GFM150 |
Model No.: |
6gfm150 |
Voltatge: |
12V |
Capacity: |
150ah/10hr |
Measurements(Cm): |
483*170*238.5 |
Total Weight: |
43.5kg |
Ternimal Type: |
T11 |
Type: |
Lead-Acid Batteries |
Usage: |
Lighting |
Nominal Voltage: |
12V |
Discharge Rate: |
Medium Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description

General Features
- Long time discharge
- Suitable for standby power and energy storage power use
- Special plate design, long cycle lifetime
- Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
- Using special separator to boost up the battery performance inside
- High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
- High gas recombined reaction efficiency
- Little water losing, no electrolyte stratification phenomenon
- Long storage time
- Good deep discharge resilience performance
- Using gas silicon dioxide, small granule degree, bigger than surface area
Typical Applications
1) Cycle applications
- Golf trolleys
- Garden equipments
- Portable equipments
- Wheel chairs
- Solar and wind mill units
- Medical equipments
- Flash units also for mining (head flash)
- Portable video/radio
- Traffic lights
- Street signs
- Boats or buoys
- Cottage camping
- SOS pillars
- Toys and hobby applications
- Portable equipments for communication
- Testing, distance measuring etc.
- Pump system
2) Stand By applications
- Telecommunication backup
- Power plants
- Burglar alarms
- Medical equipments (stationary and portable i.E.X- ray)
- Computer back-up (high power)
- Communication systems
- Fire alarm systems
- Transmitter systems
- Cash register systems
- Emergency lights signal systems
- Telephone systems
- Clocks systems
- Uninterrupted
- Power supplies
- Elevators emergency power supply (skyscrapers)
- Solar applications
- Mobile stations
- Airport / runway emergency illumination
- Emergency power supply for hospitals
- Radar and satellite stations

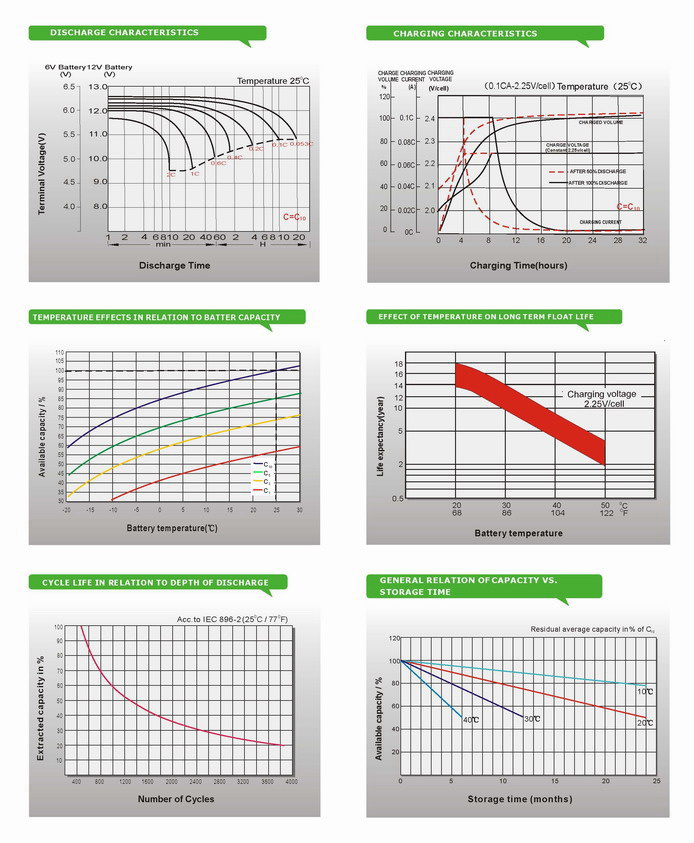

Curve Picture

Specifications
Model | Nominal Voltage | Rated Capacity(AH) | Approx Dimension | Approx Weight | Terminal Type |
20HR | 10HR | 5HR | 1HR | Length | Width | Height | Total Height |
(V) | 1.80 V/cell | 1.80 V/cell | 1.75 V/cell | 1.67 V/cell | Mm | In. | Mm | In. | Mm | In. | Mm | In. | Kg | Lbs |
TPG12-17 | 12 | 17 | 15.8 | 13.6 | 9.35 | 181.5 | 7.15 | 77 | 3.03 | 167.5 | 6.59 | 167.5 | 6.59 | 5.8 | 12.8 | T12 |
TPG12-26 | 12 | 26 | 24.2 | 20.8 | 14.3 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.7 | 19.2 | T12 |
TPG12-31 | 12 | 30 | 27.0 | 24 | 17.1 | 195 | 7.68 | 130 | 5.12 | 164 | 6.46 | 178 | 7.01 | 10.7 | 23.6 | T5 |
TPG12-38 | 12 | 38 | 35.3 | 30.4 | 20.9 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.8 | T6 |
TPG12-45 | 12 | 45 | 40 | 36 | 24.8 | 257 | 10.12 | 132 | 5.2 | 200 | 7.87 | 200 | 7.87 | 16.2 | 35.7 | T6 |
TPG12-50 | 12 | 50 | 46.5 | 40 | 27.5 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 211 | 8.31 | 16.6 | 36.6 | T6 |
TPG12-60 | 12 | 60 | 55.8 | 48 | 33 | 325 | 12.8 | 167 | 6.57 | 174 | 6.85 | 174 | 6.85 | 21.5 | 47.4 | T6 |
TPG12-65 | 12 | 65 | 60.5 | 52 | 35.8 | 325 | 12.8 | 167 | 6.57 | 174 | 6.85 | 174 | 6.85 | 24 | 52.9 | T6 |
TPG12-70H | 12 | 70 | 65.1 | 56 | 38.5 | 259 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | 23 | 50.7 | T6 |
TPG12-85 | 12 | 85 | 78.0 | 68 | 46.8 | 305 | 12.01 | 168 | 6.61 | 207 | 8.15 | 213 | 8.39 | 26.7 | 58.9 | T6 |
TPG12-100 | 12 | 96 | 90 | 80 | 55 | 330 | 12.99 | 173 | 6.81 | 212 | 8.35 | 218 | 8.58 | 31 | 68.4 | T11 |
TPG12-110 | 12 | 110 | 102.3 | 88 | 60.5 | 410 | 16.14 | 177 | 6.97 | 225 | 8.86 | 225 | 8.86 | 36 | 79.4 | T11 |
TPG12-125 | 12 | 130 | 121 | 104 | 71.5 | 345 | 13.58 | 172 | 6.77 | 274 | 10.79 | 280 | 11.02 | 47.3 | 104.3 | T11 |
TPG12-140 | 12 | 135 | 125.6 | 108 | 74.3 | 483 | 19.02 | 170 | 6.69 | 238.5 | 9.39 | 238.5 | 9.39 | 44.2 | 97.5 | T11 |
TPG12-200 | 12 | 200 | 186 | 160 | 110 | 522 | 20.55 | 240 | 9.45 | 218 | 8.58 | 224 | 8.81 | 62.9 | 138.7 | T11 |
TPG12-200HS | 12 | 214 | 200 | 174 | 124 | 522 | 20.55 | 240 | 9.45 | 218 | 8.58 | 224 | 8.81 | 61.5 | 135.6 | T11 |
TPG6-200 | 6 | 200 | 185 | 160 | 110 | 322 | 12.68 | 178 | 7.01 | 228 | 8.98 | 234 | 9.21 | 31.3 | 69.0 | T11 |
TPG2-65 | 2 | 65 | 60 | 51.6 | 35.2 | 170 | 6.69 | 72 | 2.83 | 205 | 8.07 | 212 | 8.35 | 5.2 | 11.5 | T6 |
TPG2-100 | 2 | 96 | 90 | 77.5 | 52.8 | 170 | 6.69 | 72 | 2.83 | 205 | 8.07 | 212 | 8.35 | 6.2 | 13.7 | T6 |
TPG2-150 | 2 | 144 | 135 | 116 | 79.2 | 170 | 6.69 | 98 | 3.86 | 205 | 8.07 | 212 | 8.35 | 8.8 | 19.4 | T7 |
TPG2-200 | 2 | 213.3 | 200 | 172 | 117.3 | 170 | 6.69 | 110 | 4.33 | 328 | 12.91 | 337 | 13.27 | 13.7 | 30.2 | T11 |
TPG2-300 | 2 | 326.6 | 300 | 263.5 | 179.6 | 170 | 6.69 | 150 | 5.91 | 328 | 12.91 | 337 | 13.27 | 20 | 44.1 | T11 |
TPG2-400 | 2 | 435.4 | 400 | 351 | 239.5 | 210 | 8.27 | 175 | 6.89 | 330 | 12.99 | 339 | 13.35 | Curve Picture 25.5 | 56.2 | T11 |
Guangzhou Tiger Head Battery Group Co., Ltd. is situated in the Huangpu road, Tianhe District, Guangzhou, with its east neighboring to the Huangpu Port, its west to the Guangzhou East Train Station, the Exit to the Huanan Express Trunk Way, and its south facing the Pearl River. Thus it boasts of convenient transportation in both highways and waterways.
Guangzhou Tiger Head Battery Group Co., Ltd. is an export-oriented enterprise specializing in battery production and management, with the largest scale in Chinese battery industry. It realizes annual output of 2 billion pieces of dry batteries and earns over 308 million U. S. Dollars of foreign exchange per year, which makes it the leading battery enterprise in China.
The company' S main products are "555", "Tiger Head" and " TIHAD" brand all kinds of dry batteries, lead-acid storage batteries, Ni-MH batteries, polymer Li-ion batteries and some battery-related appliances.
The trademark "Tiger Head" of the company is the first "Chinese Well-known Trademark" in Guangzhou as well as in the country' S battery industry, and the trademark "555" the "Famous Trademark" in Guangzhou city as well as in Guangdong province. "555" brand R20S batteries have won National Excellent Quality Silver Award, while"555" brand LR6 alkaline batteries have won National Excellent Quality Gold Award. Moreover, "555" brand zinc-manganese alkaline batteries have been rewarded as "Chinese Top Brand Products" and "National Inspection Exemption Products".
Based on strengthening quality control and seeking development via technical progress, Tiger Head Battery Group Co., Ltd. Has been making persistent efforts to excel. As the first company using computer-controlled automatic discharging detection facility among the same business in China, the company has had a strict quality monitoring system in production. Thus for years running, the company has been evaluated as the "Advanced Enterprise of Quality and Profit" by the Ministry of Foreign Trade and Economic Cooperation, PRC, the State Bureau of Light Industry, and the Quality Control Association of Guangdong Province.
Since the year 1999, the company has been performing series of reforming with a capital outlay of RMB 400 million, introducing the most advanced production line of mercury free zinc-manganese alkaline battery, thus providing the consumers with environment friendly batteries of high performance. The company adopts in production the special explosion-proof structure, new material, new formula, new technique and the special sealing technology, all in the leading position in the world, which makes true the Mercury-free and Pollution-free in battery production fives years ahead of the national schedule. Recently, the company invested RMB 1.5 million independently developing the Real-time Monitoring Management System via IT new technology, which includes several parts of on-the-spot production management, operation instruction, and figures analysis, etc. This system, via visual image transformation and vivid industry control charts, can help monitoring persons to get accurate first-hand information about the production, even they are not on the production spot. Thus, it helps to improve management efficiency and reduce management cost. Today, a modernized Battery City has been set up in the new factory zone with the area of 170 thousand square meters.
