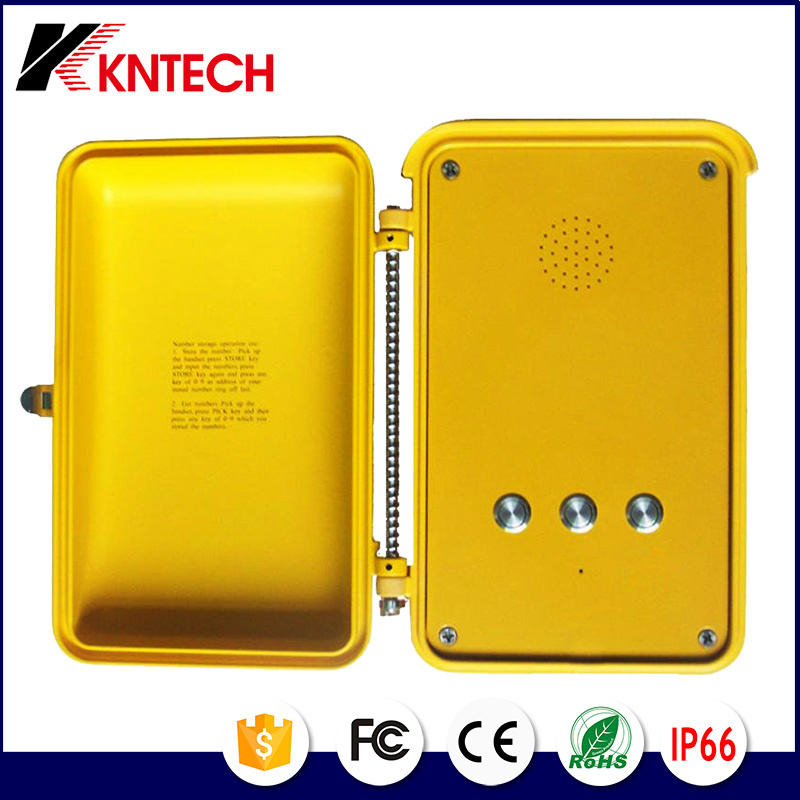

Auto Dial Waterproof Intercom Emergency Handfree Call Box

Prod Model:	KNSP-04-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Aluminum Alloy and SUS304
Type:	Industrial
Size:	320*205*120mm
Weather Resistant:	IP66
Vandal Resistan:	Yes
Lightening Protection:	Itu K2.1
Tamper-Resistant:	Yes
Door:	Yes
Mounting Type:	Wall Mounting Type
Button:	One Push Call Button

Product Description



Ms. Miki Mo
M: +86 135 3042 8923


Applications:

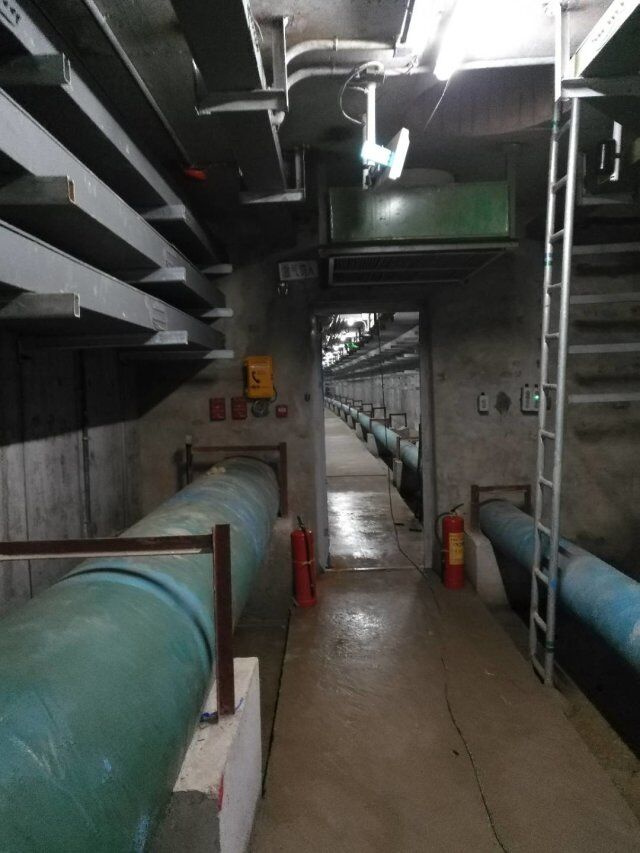

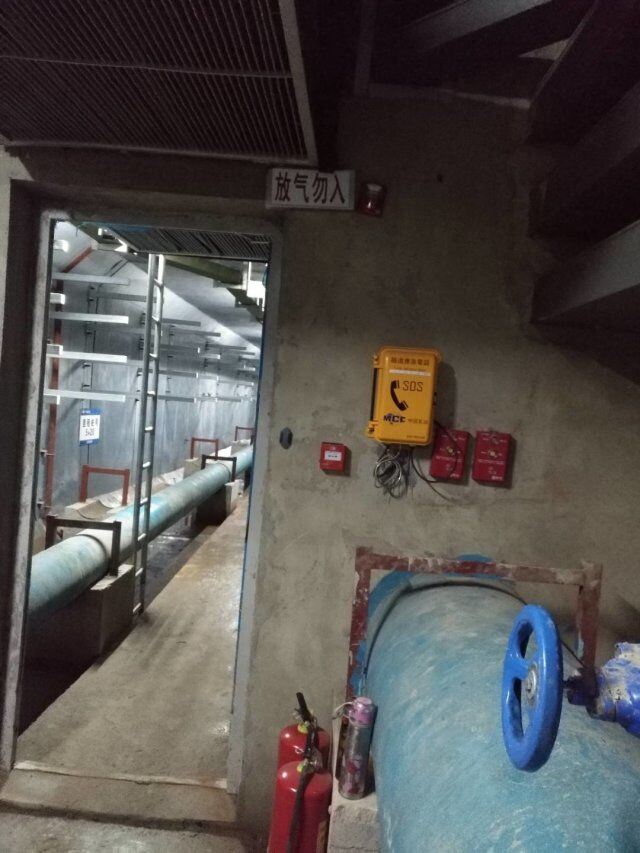

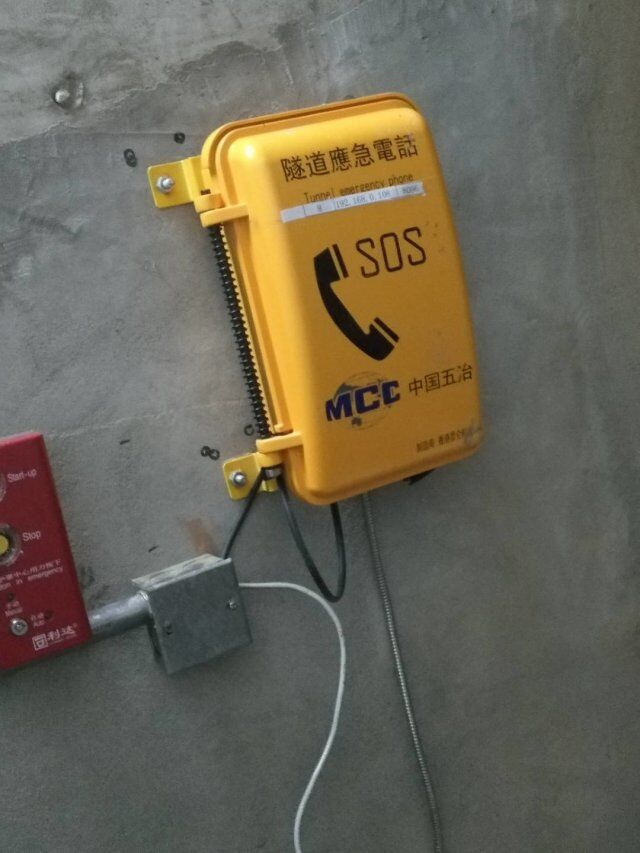

As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box
Railway, metro, ATM machines side,  Tunnel, Port, Dock, Mines, Generation facilities...
A good ideal telephone for use in wet or corrosive atmospheres



Main features :
1.  Robust aluminium alloy die-cast body,   Vandal resistant and tamper-resistant hardware, simple installation.
2. Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each number is16 digits)
3.  Weather resistant to IP66 standard, service temperature range from: -35 degree to +75 degree
4.  Magnetic reed hook-switch
5.  Telephone line powered. No external power or battery back up required.
6.  Lightening protection to ITU-T recommendation K.21
7.  Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
8.  Hearing Aid compatible receiver, Noise canceling microphone.
9.  Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
10.  Selectable 7 minute time out, to release the line if the handset is left off hook.
11.  Ingress Protection: GB4208-93   IP66   EMC: EN55022/EN55024/EN50121-3-2: 2006   FCC

Packaging specifications:
Machine size:320 *205 *120( mm )
Carton size:439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:5.7KG
Net weight:3.9KG






VOIC OVER IP- SIP (Optional)
Connection type: RJ45 Socket inside sealed enclosure
Power supply: External 24V dc
Call set-up Protocol: Session Initiation Protocol(SIP)
Configuration: DHCP or STATIC IP address provisioning


Technical parameter
Ambient temperature	-30~+60°C
Defend grade	IP66
Relative humidity	10%--95%
Atmospheric pressure	86~106KPa
Circumstance noise	less than 60dB(A)
Sound level of ringing	>70dB(A)
Standard frequency	697. 770. 852. 941Hz



Packaging Details:	Packaging specifications Machine size:320*205 *110( mm ) Carton size:439*277 *191( mm ) Packaging material: pearl cotton, carton Gross weight:7.5KG Net weight:5.1KG
Delivery Detail:	Within 3-18 working days after received payment
