| Input Voltage: |
AC/DC 12-36V |
| Language: |
English, Chinese, Korean |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Veze |
Product Description
The product is made up of 10 parts, including:
▪Main controller
▪voice speaker
▪Volume adjustment
▪6P line
▪7Pline
▪Inner panel
▪Exterior panel
▪Open button
▪Function switch button
▪Close button
Function Instruction
Emergency:
When user have trouble and can not operate the call panel, start EMERGENCY function, door open forcibly by outsider.
Automatic:
Start AUTO function, call panel work normally, people can get out and in.
Lock:
Inner and exterior panel lose effectiveness, control system and door are locked, can not be used normally.
Note:
Key should be returned to the AUTO function after EMERGENCY or Lock function be used.
Using process
•Dedicated for washroom of disabled-person, large-panel designed with voice prompts.
•Normal standby, the exterior panel displays ''no use".
•Press the open button of exterior panel, door open with voice prompts. Internal panel displays unlocked, warning to press the lock button. After entering the washroom, press the lock button of inner panel, door close with voice prompt. At the time, door can not be open until the user press open button of inner panel. And door close in 5s, 15s, 15minutes according to the setting.
•When user have trouble and can not operate the call panel. Start the EMERGENCY function, door can be open forcibly by outsider.
•Start the Lock function to lock the system, when the staff after work, so that the door is in a safety closure state, to stop the use of external.

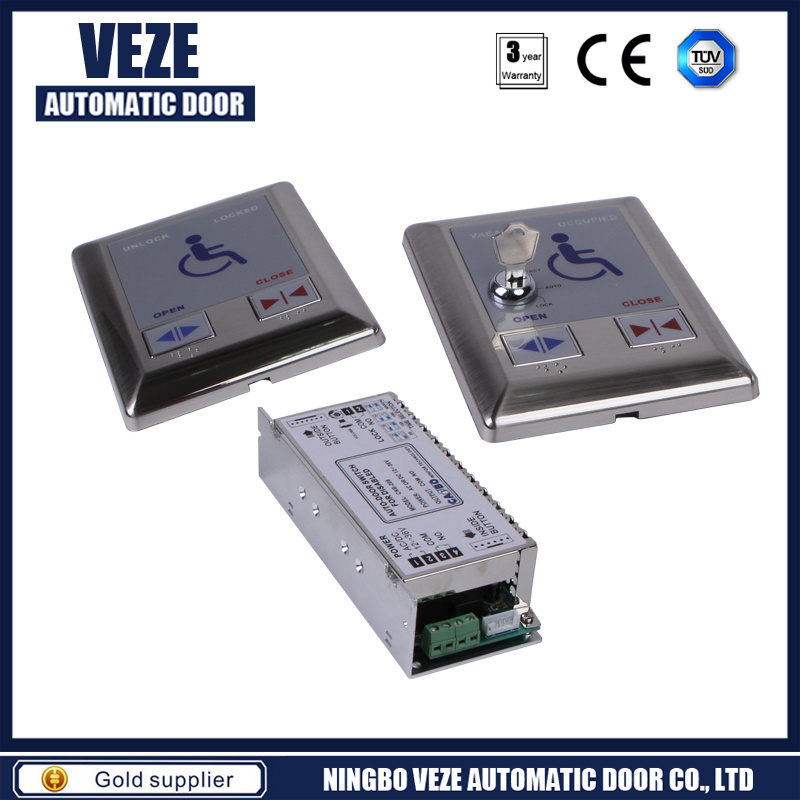

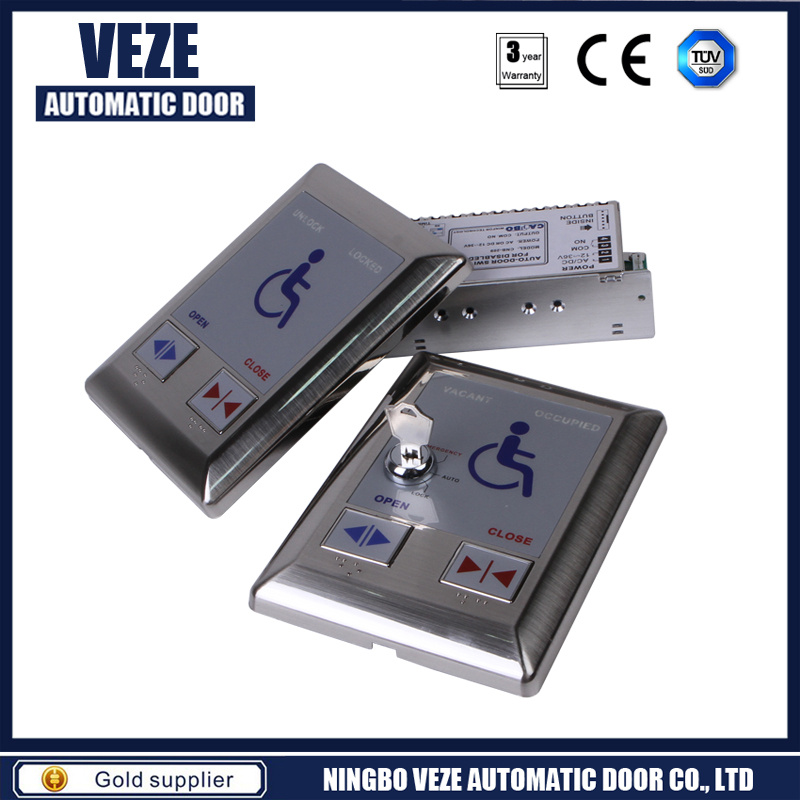

The Picture of Auto Door Switch For Disabled

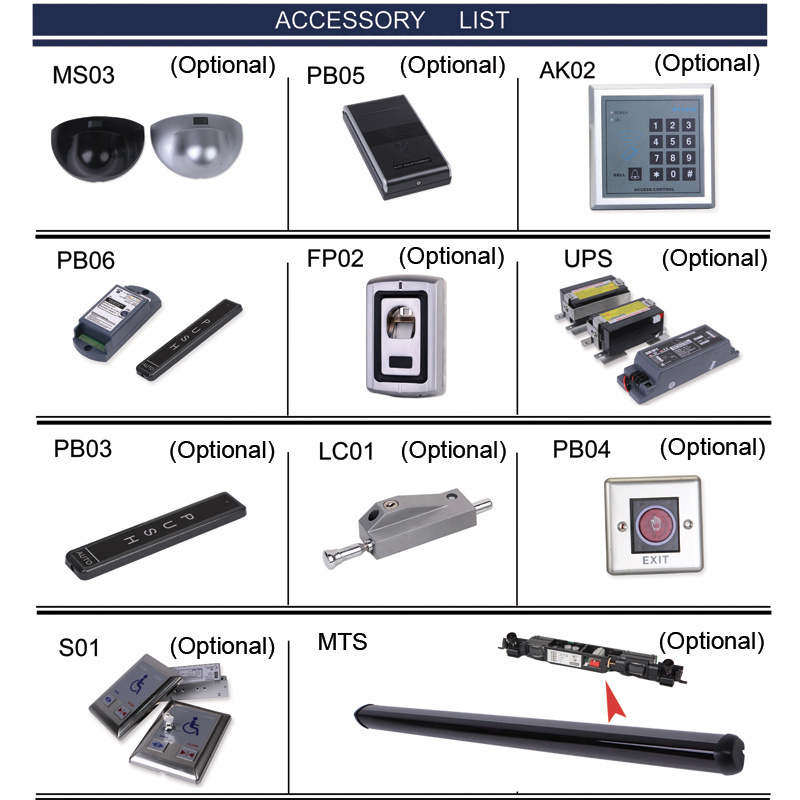

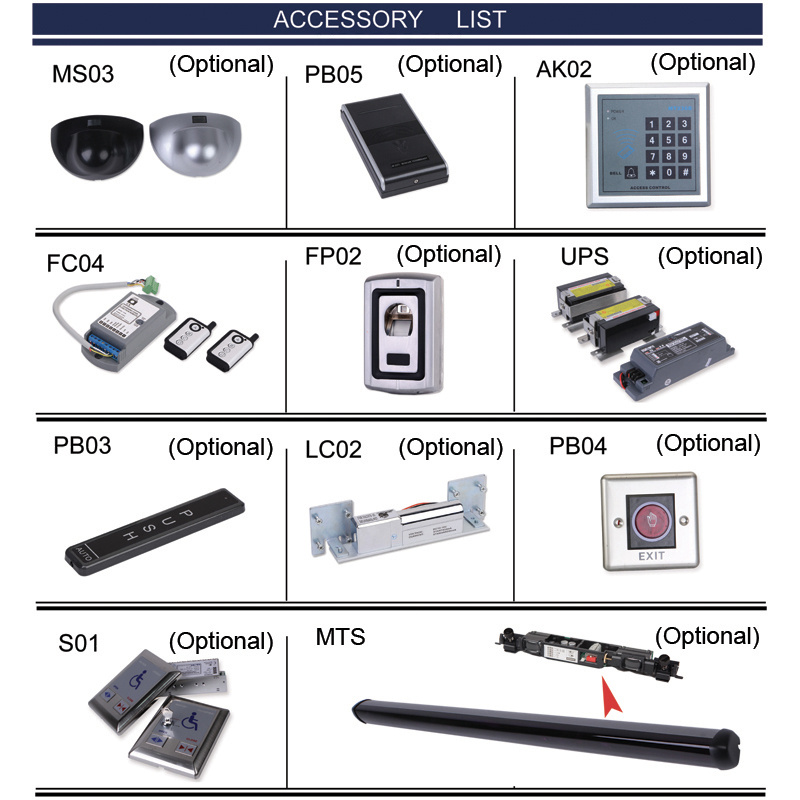

Accessory List & Optional Parts
| Composition |
| List | Quantity |
| Audio ( Built-in ) | 1EA |
| Controller | 1EA |
| Exterior panel | 1EA |
| Inner panel | 1EA |
| Key | 2EA |
| 7P line | 1EA |
| 6P line | 1EA |
| Screw 4 × 18 | 8EA |
Technical specifications and parameters
| Operating voltage | AC/DC 12-36v |
| Switch controller | 142(L)×58(W)×40(H) mm |
| Panel size | 160(L)×120(W)×15(H)mm |
Other Automatic Doors Accessories
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
