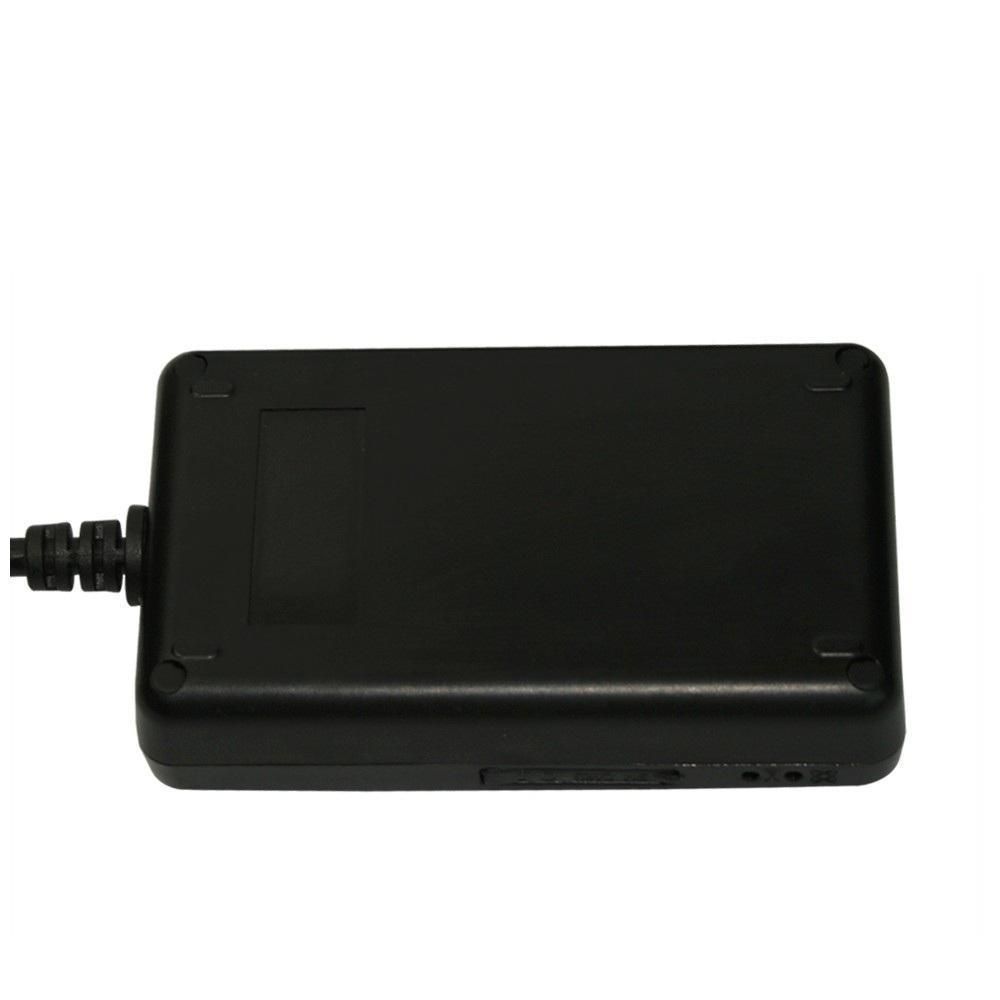

Auto GPS Tracker Cctr-805 Car Locator 3G GSM Network U-Blox GPS 9-40V Voltage Lbs GPS Double Positioning Lifetime Free Tracking
| Price: |
US $ 1-62.8/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
CCTR805 |
| Model Number: |
Cctr-805 |
| Demination: |
90mm*55mm*23mm |
| Main Weight: |
80g |
| GSM Frequency: |
850/900/1800/1900MHz |
| GPS Model: |
U-Blox GPS Module with a-GPS |
| Locate Precision: |
10-20 Meters |
| Free Web APP Tracking Platform: |
Support |
| GSM / GPS Antenna: |
Built in |
| Delivery Detailes: |
1-3days After Receiving Deposit |
| Package: |
Standard Export Package |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
| Model: |
Cctr-805 |
| Chip: |
U-Blox GPS Module with a-GPS |
| Certification: |
Ce |
Product Description
Auto GPS Tracker Cctr-805 Car Locator 3G GSM Network U-Blox GPS 9-40V Voltage Lbs GPS Double Positioning Lifetime Free Tracking
Primary Competitive Advantages:
- Built in 3G WCDMA & 2G GSM module & u-Blox GPS module
- External microphone for hearing voice in the car
- Auto download & configure APN & GPRS, Also can be set by SMS
- LBS locate (GSM network base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- U-Blox GPS module with A-GPS for fast locating
- Uploading tracking can be controlled by ON signal & Shock sensor
- GPRS protocol can be changed to work with client platform
- Listening or Monitor sound around tracker
- Remote Turn Off Car Engine (Cut Oil Power)
Key Specifications/Special Features:
- External microphone for hearing voice in the car
- Auto download & configure APN & GPRS, Also can be set by SMS
- LBS locate (GSM network base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- Built in 3G WCDMA & 2G GSM module & u-Blox GPS module
- U-Blox GPS module with A-GPS for fast locating
- Device can be located by SMS or calling without server
- Report location by SMS with Google map link without server
- Report location by SMS with text description without server
- Multi-level user role for dealer / distributor / fleet management / Single user
- Alarm can be noticed by SMS & calling
- Built in rechargeable Li battery for backup & power down alarm
- Upload interval is 30 seconds & can be set by user sms
- Stop uploading after the tracker stop moving 2 minutes
- Uploading tracking is controlled by shock sensor
- Uploading tracking can be controlled by ACC/ ON signal
- Upload web or IP can be set by SMS
- Tracker status can be check by SMS
- Can Freeze car running on the platform (Remote turn off engine)
- Can preset 3 phone number by SMS
- Can send SOS or alarm information to preset phone
- Open GPRS protocol to client for adding protocol to platform
- GPRS protocol can be changed to work with client platform
- Visit website can track the car or display the history tracking
- History tracking can be saved on server over 6-12 months
- Suit for tracking car, bus, truck, taxi, rent cars, school bus, transportation vehicle, moving equipment etc
Specification:
| Working Voltage | 7-36V DC | GSM Frequency | 850/900/1800/1900 MHz (Global) |
| Communication Chip set | Inter (USA) | WCDMA Frequency | 850(800)/900/1900/2100 MHz (Global) |
| GPS Chip Set | MTK | Locate precision | 5-10 Meters |
| 2G 3G / GPS Antenna | Internal | Tracking Current | <150mA /5V |
| Standby Current | < 3 mA /5V | Recharging Current | <400mA 5V |
| GPS Hot Start Time | 1 second average | GPS Cold Start Time | 36 seconds average |
| Battery | 800mAh (Polymer) | Working Temperature | -20 ºC to +55 ºC |
| Absolute Working Temperature | -40ºC to +80ºC | Storage Temperature | -40 ºC to +80 ºC |
Install SIM card (Micro SIM Card)

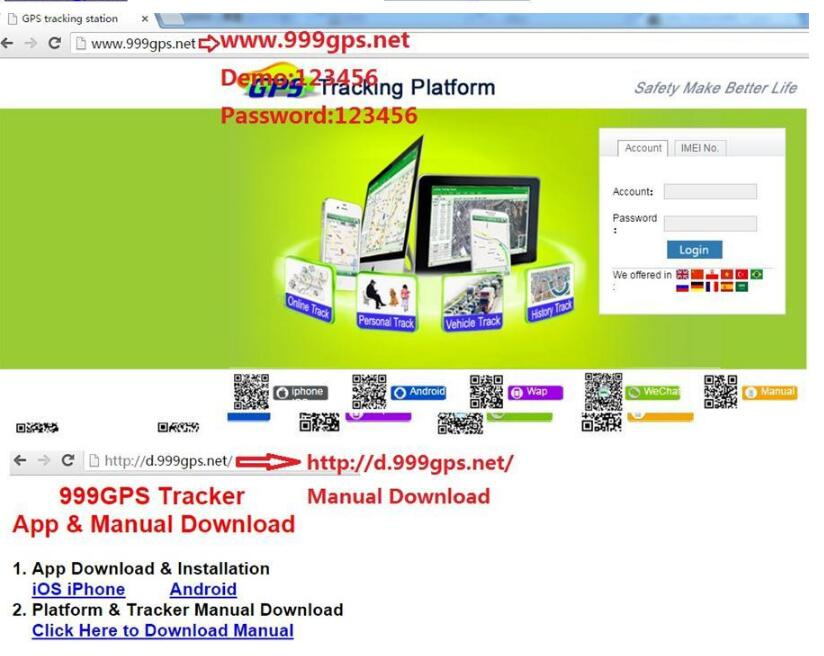

Note:This tracker use 2G GSM & 3G WCDMA network (Please confirm this 3G module frequency can be used in the SIM card 3G network, the frequency band is list in the end of this manual), and it upload tracking only through internet, it can not work in CDMA network or CDMA2000 network. (Many 4G SIM card have 2G GSM & 3G WCDMA network, this kind of SIM card can be used in this tracker).Free web software platform :Note: We provide free web use on , but please provide us ID numbers to active them if you need use the web or app when you received the devices.fixed site, use this one forever. But,maybe changed base on real needed
Package Include:1pc* Main unit CCTR-8051pc* 5P Wires1pc* SOS button & Wire1pc* Microphone & Wire1pc* User Manual (CD or Print)Notes:Although the platform is free, but after receiving the ID to provide the activation
