Automatic Door Brushless Motor (55W)

Special Function:	Security
Means Of Transport:	Ocean, Air
Application:	Industrial
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce

Product Description

Features of Automatic Door Brushless Motor
(1) Low power consumption
(2) Smooth operation with super silence
(3) Long lifespan
(4) High efficiency
(5) Worm and gear transmission
(6) Two year warranty

Technical Specifications of Automatic Door Brushless Motor:


Power supply	24VDC  55W
Rated torque of bare motor	0.22N.m
Starting torque of bare motor	0.85N.m
No-load noise of motor	<52dB
Reduction ratio	1:12
Rotational speed	3200RPM
Insulation resistance	>100MΩ
Service life	4000hrs
Ambient request	ROHS
Protection grade	IP44

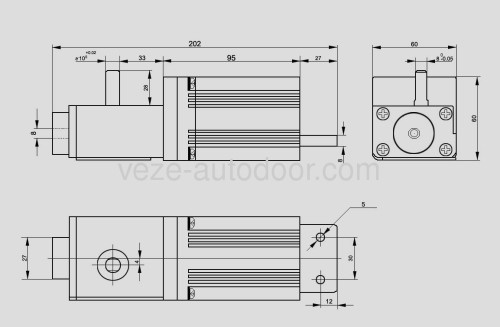

Overall-dimension Diagram of Automatic Door Brushless Motor:

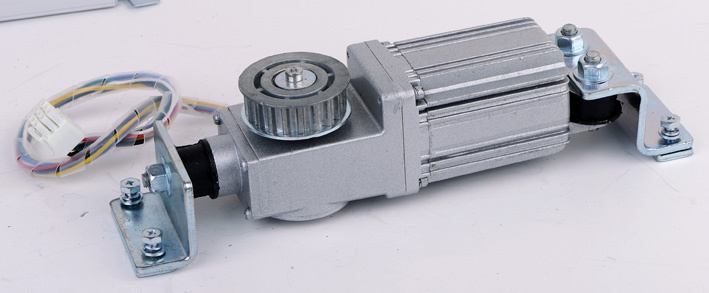

The Picture of Automatic Door Brushless Motor

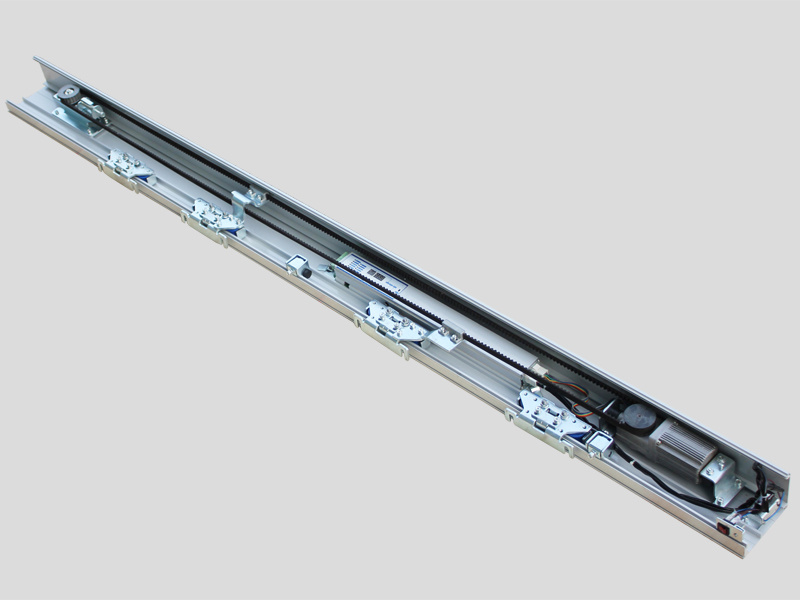

Applications of Automatic Sliding Door Motor
