Automatic Door Microwave Contactless Sensor Switches

Automatic Door Microwave Contactless Sensor Switches
Price: US $ 20-25/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: WS-410-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: AC/DC12-24V
Microwave Freqnency: 24.125GHz
Box Size: 86*86
Output: Relay Switch
Sensing Distance: 2cm to 1meter
Type: Microwave Sensor Switch
Wires: Two-Wires
Standard: Standard
Application: Garage
Size: 86 Type
Certification: CE
Principle: Microwave

Product Description

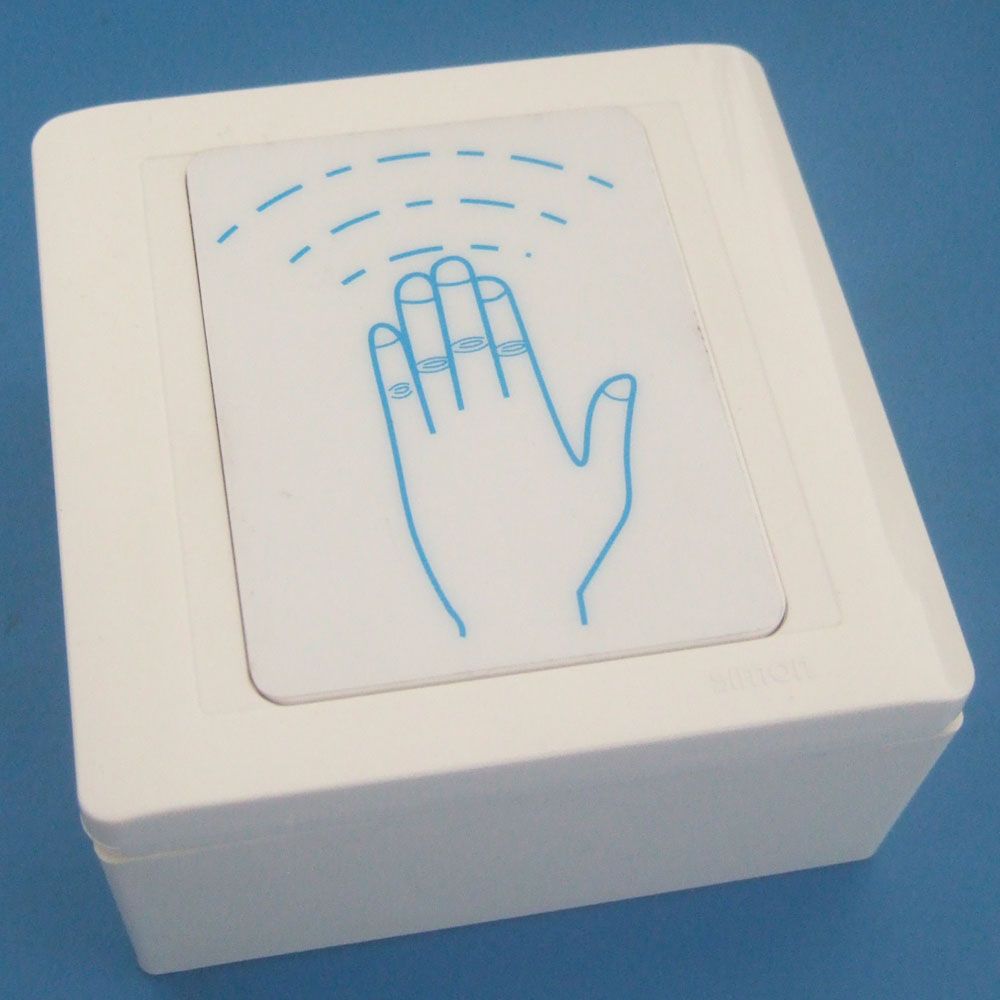

Automatic door microwave contactless sensor switches
The WS-410-2 Series touchless switches are Microwave devices designed to activate full and low energy automatic door opener.
Their hands free operation makes them ideal for ADA applications. Other applications include clean-room access points, request-to-exit devices (3 amp contact) and point-of-purchase displays. The WS-410-2 is microprocessor controlled allowing for superior operation in a smaller unit.
Main Features:
Microwave motion automatic door sensor used as contactless switch;
Avoids any contact with hands or elbows for absolute hygiene;
Adjustable sensing field, between 7 and 50 cm;
Can be completely recessed into any surface;
Can be used in "SENSOR"mode or in "SWITCH" mode;
Insensitive to color, temperature or reflection from the target;

Technology
Microwave MCU inside

Detection Range7 cm ~ 50 cm
Radiated Frequency10.525GHZ
Operating ModeSensor: Stand by after hold time
Switch: Toggle output
Supply Voltage12~24V AC/DC
Relay Output Ratings24VDC/120VAC
Max. Relay Output0.5Ampere
Holding Time(Adjustable)0.5~10s (Sense Mode)
Dimensions86 mm x 86 mm x 28 mm

Shanghai Wafer Microelectronics Co., Ltd. was built up in 2006. We are acknowledged as the leader in the development, manufacturing and distribution of sensor series for automatic doors and coin acceptors for vending machines in our local market. We also get a constant increase in the world market.

For automatic door application, Wafer manufactures automatic door sensors, automatic door safety beam sensors, infrared and microwave contactless sensor switches, active and passive infrared control systems, automatic door spare parts, vehicle loop detectors, program switch series and automatic door hopping code remote control systems.

For vending machine application, Wafer manufactures multi-coin coin acceptors, comparable type electronics coin acceptors, USB kiosk control boards, coin operated timer control boxes, GSM vending machine management units, and single type coin acceptors.

For GSM application, Wafer manufactures GSM vending machine management units, GSM-KEY automatic door or gate remote controllers, GSM water pump automatic control systems, GSM monitoring units, and GSM game machine monitoring units.

Wafer provides the customers with the best products and system solutions for automatic doors and vending machines. Wafer has built two reliable systems, including automatic door sensor system and GSM management system. We hope to have a wide cooperation with companies all over the world. We will provide you with our best products and best service.

Now, our clientsare from not only Mainland China but also other countries and regions, including Singapore, Europe, Taiwan Area, South Korea, India, Malaysia, Australia and South Africa.

Wafer has also used sensor technology expertise to expand markets, such as vehicle detective system, safety alarm system, transportation and industrial application system.

Wafer uses the best software technology and hi-tech electrical system design for the management of vending machines.

With our excellent staff, advanced and efficient test equipment, perfect sales network, and strict QA systems, we have all reasons to be confident on products and our service. We have all reasons to make our customers be confident on us as well. Let's enter a brighter future with you together.
