Automatic Door Microwave Motion Sensor

Automatic Door Microwave Motion Sensor
Price: US $ 20-25/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,D/P,Paypal
Prod Model: WB-4001U
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Input: AC/DC12-24V
Frequency: 24.125GHz
Sensing Distance: 5 Meter
Output: Relay Output
Color: Silver or Black
Type: Microwave Sensor Switch
Principle: Capacitive
Standard: Standard
Application: Garage
Certification: CE
Wires: Four Wires
Size: Wafer

Product Description

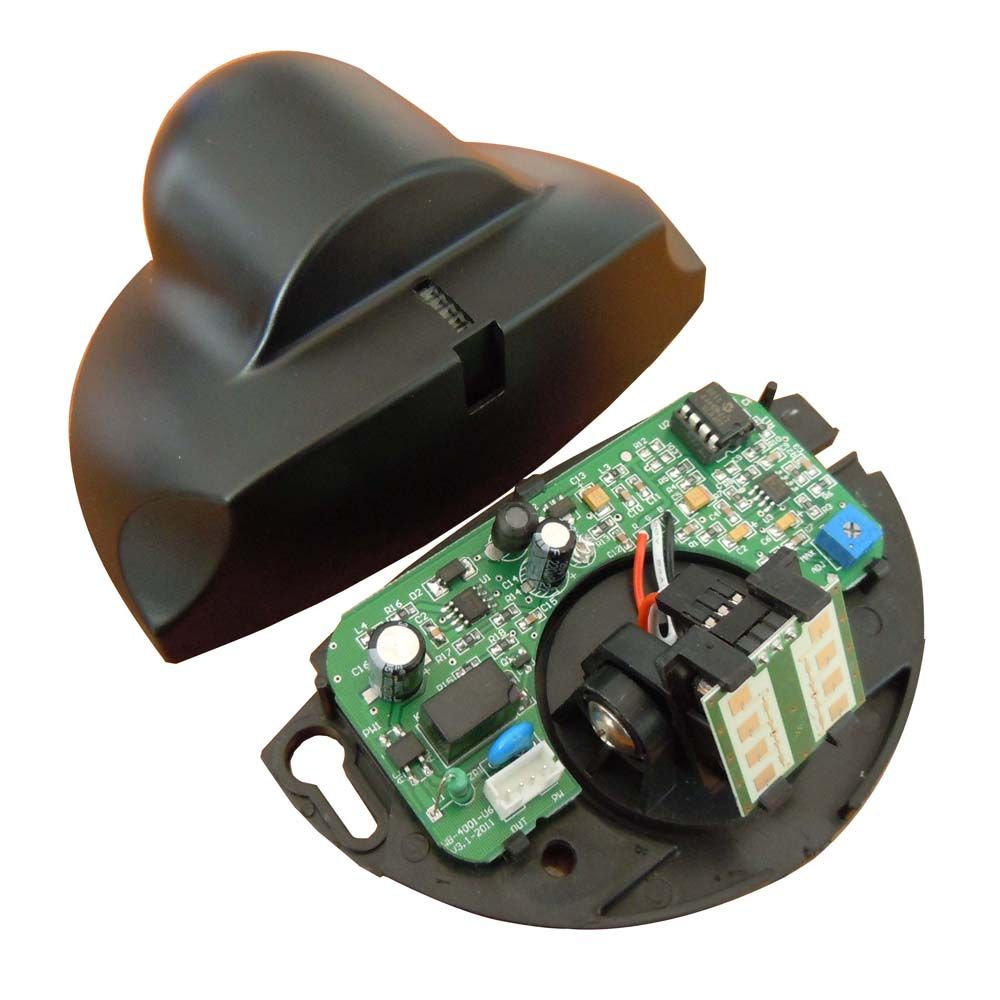

Microwave Automatic Sliding Door Sensor WB-4001


Wafer, more than 6 years experiences on the sensor manufacturing ;

Wafer SMT machine for sensor mounting quality ;

Good components selection to ensure the sensor performance ;

GERMANY Microwave module inside to provice the senosr best stability ;

Wafer Skilled workers for assembly and test fully ;

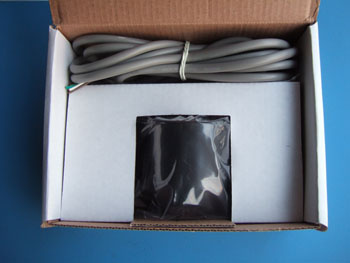

Good designed package box to improve the increased value and apperance ;

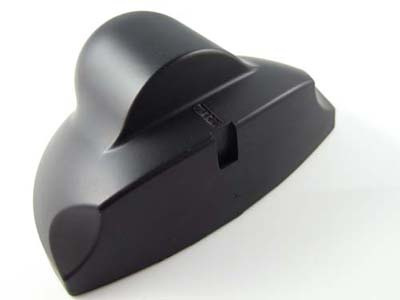

WB-4001U Black



WB-4001U Silver



WB-4001U Spare Parts



WB-4001B Black



WB-4001B Silver



WB-4001B Spare parts

specifications

MODEL

WB-4001U / WB-4001B

POWER SUPPLYAC/DC 12V ~ AC/DC 24V

MAINS FREQUENCY

50Hz ~ 60Hz

FREQUENCY

24.125GHz

TILT ANGLES

0° to 90° vertical and -30° to + 30° lateral

SENSING TIME / HOLD TIME

REAL-TIME / 0.5 SEC

RANGE

4.0M(W) X 3.0M(D)

POWER CONSUMTION : STANDBY 000000000000000000:OPERATION

200mW@12V
550mW@12V

DETECTION ANGLE

40' ~ 160'

OPERATING TEMP.

-25'C ~ +60'C

RELATIVE HUMIDITY

0 ~ 95 %

MOUNTING STYLE

WALL

MOUNTING HEIGHT

3.0M (MAX) (other specification need to order in advance)

WEIGHT

210g

SIZE120mm ( L) *80mm ( W ) *60mm ( H )

COLOR

SILVER or BLACK

Best Quality to be installed more than 300 pcs on Shanghai pudong international airport project !

Four years , free maintance.



Pictures of Wafer Sensors from Shanghai Pudong International airport

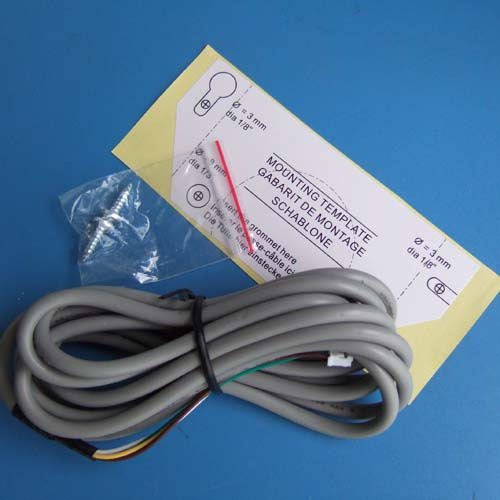

Spare parts pictures:


Shanghai Wafer Microelectronics Co., Ltd. was built up in 2006. We are acknowledged as the leader in the development, manufacturing and distribution of sensor series for automatic doors and coin acceptors for vending machines in our local market. We also get a constant increase in the world market.

For automatic door application, Wafer manufactures automatic door sensors, automatic door safety beam sensors, infrared and microwave contactless sensor switches, active and passive infrared control systems, automatic door spare parts, vehicle loop detectors, program switch series and automatic door hopping code remote control systems.

For vending machine application, Wafer manufactures multi-coin coin acceptors, comparable type electronics coin acceptors, USB kiosk control boards, coin operated timer control boxes, GSM vending machine management units, and single type coin acceptors.

For GSM application, Wafer manufactures GSM vending machine management units, GSM-KEY automatic door or gate remote controllers, GSM water pump automatic control systems, GSM monitoring units, and GSM game machine monitoring units.

Wafer provides the customers with the best products and system solutions for automatic doors and vending machines. Wafer has built two reliable systems, including automatic door sensor system and GSM management system. We hope to have a wide cooperation with companies all over the world. We will provide you with our best products and best service.

Now, our clientsare from not only Mainland China but also other countries and regions, including Singapore, Europe, Taiwan Area, South Korea, India, Malaysia, Australia and South Africa.

Wafer has also used sensor technology expertise to expand markets, such as vehicle detective system, safety alarm system, transportation and industrial application system.

Wafer uses the best software technology and hi-tech electrical system design for the management of vending machines.

With our excellent staff, advanced and efficient test equipment, perfect sales network, and strict QA systems, we have all reasons to be confident on products and our service. We have all reasons to make our customers be confident on us as well. Let's enter a brighter future with you together.
