Shanghai Wafer Microelectronics Co., Ltd. >> Automatic Door Microwave Motion Sensor

Automatic Door Microwave Motion Sensor

Automatic Door Microwave Motion Sensor
Price: US $ 20-30/Piece
Trade Terms: CIF
Min Order: 1/Set
Pay Type: T/T,Paypal
Prod Model: WB-4001B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 24.125GHz
Power Supply: AC/DC12-24V
Output: Relay Output
Usage: Motion Detection
Theory: Microwave
Type: Microwave Sensor Switch
Standard: Standard
Certification: CE
Principle: Microwave
Wires: Four Wires
Application: Automatic Door
Size: Customized Size

Product Description

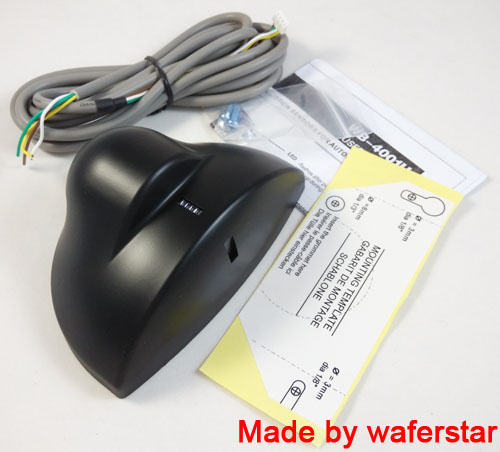

Automatic door microwave motion sensor
Model:WB-4001B


Sophisticated Motion Tracking Feature when energy conservation is critical;
24.125GHz Microwave Technology;
Adjust settings to optimize sensor for all applications;
Adjust detection area by right-left, up-down direction;
Most stability.

Wafer, more than 6 years experiences on the sensor manufacturing;
Wafer SMT machine for sensor mounting quality;
Good components selection to ensure the sensor performance;
Germany Microwave module inside to provice the senosr best stability;
Wafer Skilled workers for assembly and test fully;
Good designed package box to improve the increased value and apperance;

Best Quality to be installed more than 300 PCS on Shanghai pudong international airport project!

Four years, free maintance.
MODELWB-4001B
POWER SUPPLYAC/DC 12V ~ AC/DC 24V
MAINS FREQUENCY50Hz ~ 60Hz
FREQUENCY24.125GHz
TILT ANGLES0° to 90° vertical and -30° to + 30° lateral
SENSING TIME / HOLD TIMEREAL-TIME / 0.5 SEC
RANGE4.0M(W) X 3.0M(D)
POWER CONSUMTION: STANDBY 000000000000000000: OPERATION200mW@12V
550mW@12V
DETECTION ANGLE40' ~ 160'
OPERATING TEMP.-25' C ~ +60' C
RELATIVE HUMIDITY0 ~ 95 %
MOUNTING STYLEWALL
MOUNTING HEIGHT3.0M (MAX) (other specification need to order in advance)
WEIGHT210g
COLORSILVER or BLACK

Shanghai Wafer Microelectronics Co., Ltd. was built up in 2006. We are acknowledged as the leader in the development, manufacturing and distribution of sensor series for automatic doors and coin acceptors for vending machines in our local market. We also get a constant increase in the world market.

For automatic door application, Wafer manufactures automatic door sensors, automatic door safety beam sensors, infrared and microwave contactless sensor switches, active and passive infrared control systems, automatic door spare parts, vehicle loop detectors, program switch series and automatic door hopping code remote control systems.

For vending machine application, Wafer manufactures multi-coin coin acceptors, comparable type electronics coin acceptors, USB kiosk control boards, coin operated timer control boxes, GSM vending machine management units, and single type coin acceptors.

For GSM application, Wafer manufactures GSM vending machine management units, GSM-KEY automatic door or gate remote controllers, GSM water pump automatic control systems, GSM monitoring units, and GSM game machine monitoring units.

Wafer provides the customers with the best products and system solutions for automatic doors and vending machines. Wafer has built two reliable systems, including automatic door sensor system and GSM management system. We hope to have a wide cooperation with companies all over the world. We will provide you with our best products and best service.

Now, our clientsare from not only Mainland China but also other countries and regions, including Singapore, Europe, Taiwan Area, South Korea, India, Malaysia, Australia and South Africa.

Wafer has also used sensor technology expertise to expand markets, such as vehicle detective system, safety alarm system, transportation and industrial application system.

Wafer uses the best software technology and hi-tech electrical system design for the management of vending machines.

With our excellent staff, advanced and efficient test equipment, perfect sales network, and strict QA systems, we have all reasons to be confident on products and our service. We have all reasons to make our customers be confident on us as well. Let's enter a brighter future with you together.
