Automatic Door Multi-Function IR Proximity Detectors
| Price: |
US $ 65-72/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
IS02 |
| Cable Length: |
2.5m |
| Power Input: |
AC/DC 12-36V |
| Max. Installation Height: |
2.5m |
| Frequency: |
24.125GHz |
| Technology: |
Microwave Processor and Reflective Infrared |
| Quantity Of Ray: |
8 |
| Dimensions: |
260*54*44(L*W*H) |
| Radar Detection Range: |
4000*2000mm(W*D) |
| IR Detection Range: |
1600*800mm(W*D) |
| Sensor Connections: |
4 Wires |
| Material: |
ABS |
| IP Rating: |
IP54 |
Product Description
Automatic door multi-function IR proximity detectors

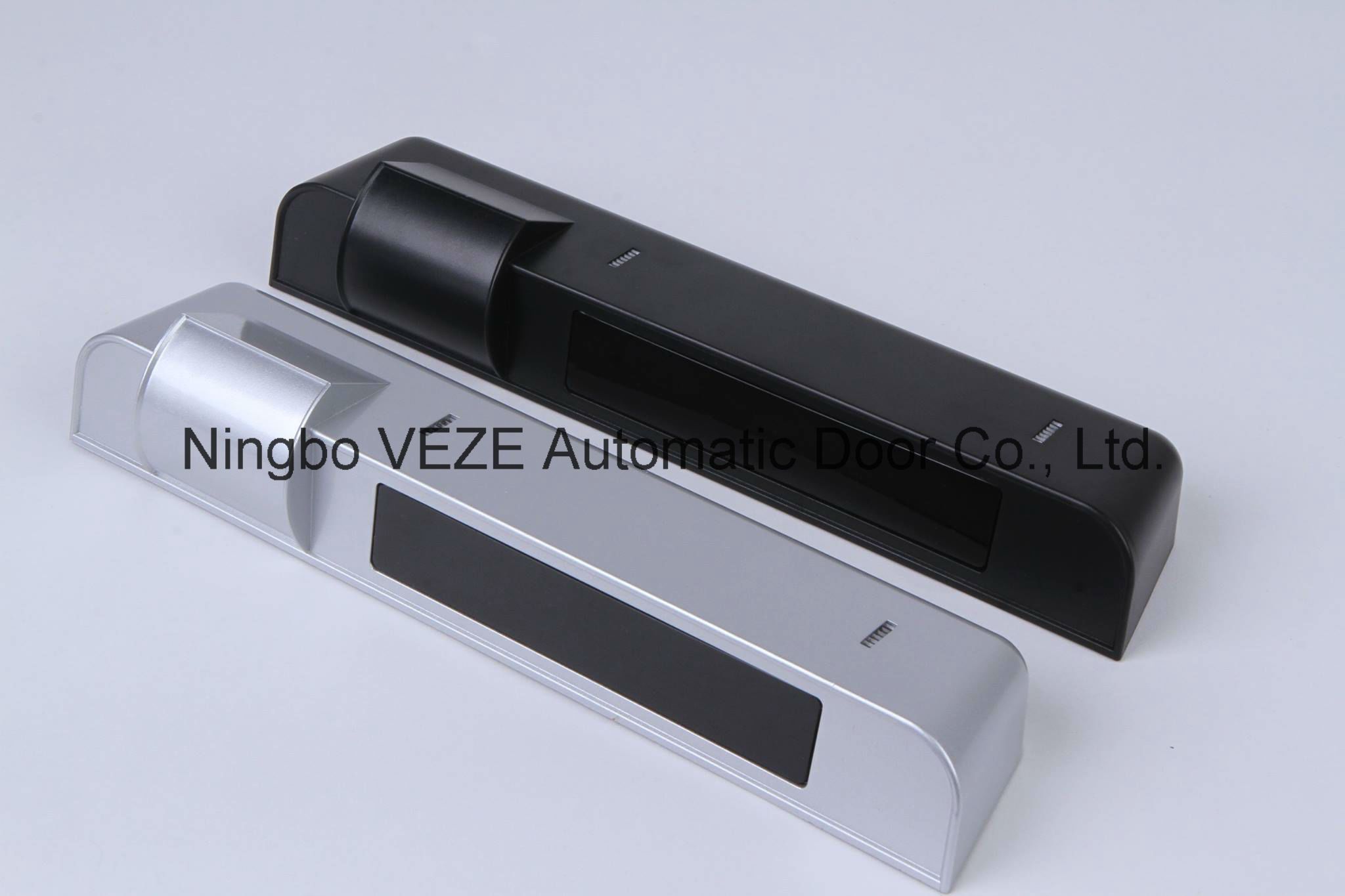

Automatic door multi-function safety sensorCombined microwave detecting and infrared sensing Two colors optional: black or silver typeOverall Characteristics:
** Combined microwave detecting and infrared sensing is intergrated into the automatic door multi-function proximity detectors.Microwave processor technology is for door activation, while infrared technology is for door safety entrance.
** Unique function of backgroud self-learning. It could learn backgroud automatically when power on, and is suitable for various occasions where radar activation and infrared safety sensing is necessary. It can always self-correct once influenced by quake, distortion, movement, darkness and strong sunshine.
** Mocrowave technology adopts the Germany Microwave sensor module, not influenced by temperature and humidity with reliable working performance.
Technic parameters
| Supply power | AC/DC 12-36V |
| Max. Installation height | 2.5m |
| Signal output | Relay |
| Static current: | 65mA |
| Action current | 130mA |
| Cover | ABS |
| Protection grade | IP54 |
| Dimension | 260*54*44mm(L*W*H) |
| |
| Infrared safety detection |
| Ray type | Reflective infrared |
| Ray source | Infrared 940mm |
| Quantity of ray | 8 emit rays & 8 receive rays |
| Self-learning time | 10s |
| Operation indicate | Standby by Blue LED, action by Red LED |
| Ambient temperature | -40ºC~60ºC |
| Optical surface | PMMA |
| |
| Microwave Activation |
| Technology | Microwave processor |
| Frequency | 24.125GHZ |
| Detection mode | Movement |
| Output time | 0.5s |
| Ambient temperature | -20ºC~55ºC |

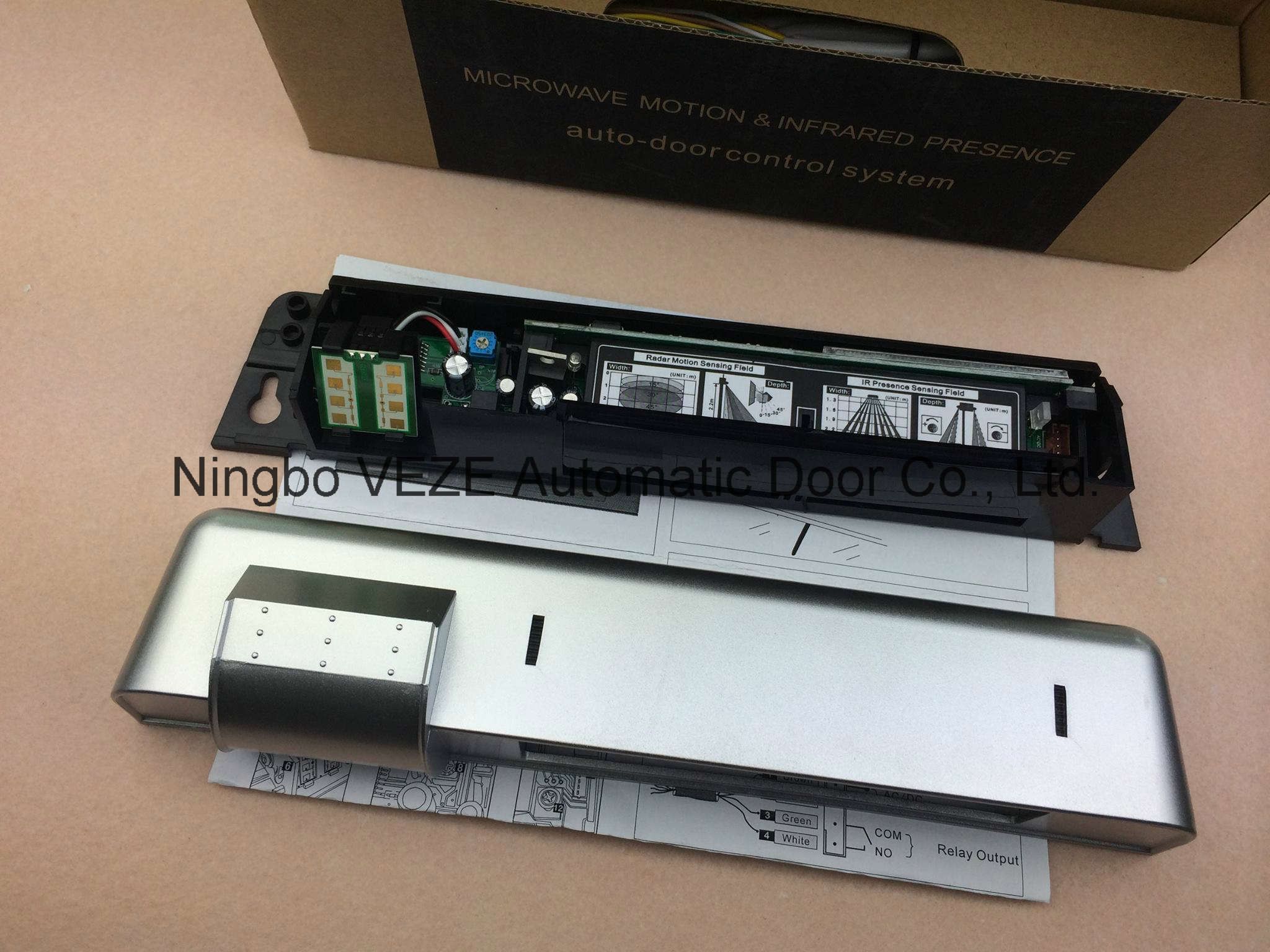

Detailed pictures

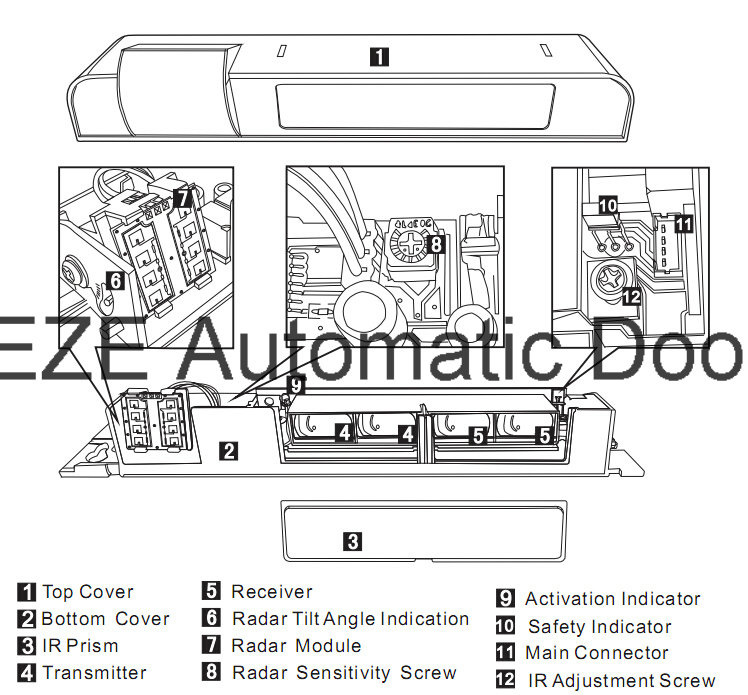

Product overview

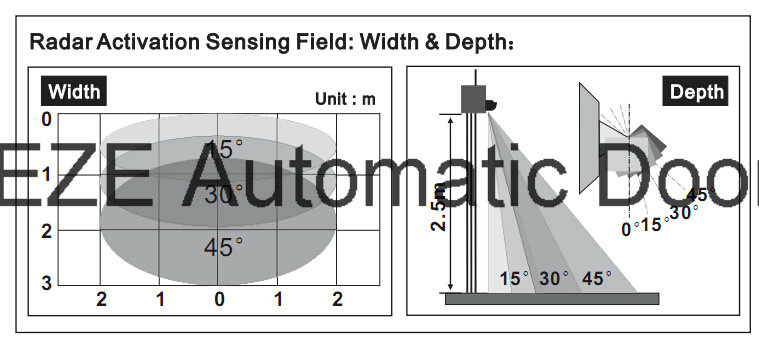

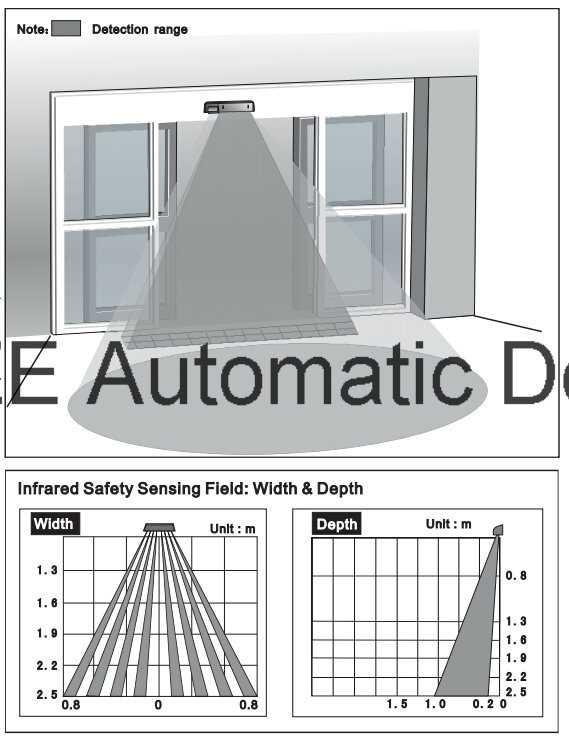

Activation ans safety detection range
Ningbo VEZE Automatic Door Co., Ltd. Was established in September 2005 and is a professional enterprise specialized in researching, designing, manufacturing and selling automatic door systems, automatic sliding doors, automatic swing doors, hospital hermetic doors, automatic curved doors, automatic telescopic doors, automatic revolving doors and high quality automatic door accessories: Brushless DC motors, infrared sensors, controllers, access control system, etc.
Safety Certification
Our products have certificates of CE, UL, RoHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check that all electronic devices are working well, each motor will go through severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with high-class quality and competitive price.
Sales & Services
VEZE Automatic doors Co., Ltd takes Quality, Efficiency and Service as our motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new parts for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have a professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Competitive Advantages:
1. We are professional manufacturer in automatic door field.
2. We have the certificates of CE, UL, RoHS, TUV, CCC, ISO9001.
3. We provide 24 months warranty.
4. We use wooden carton packing to ensure security in transit.
5. We could control our products quality by our quality control dept.
6. We have a large storage to ensure supplying in time.
