Automatic Motion Activated Light Radar Sensor Switch Ta-MW10

Name: Automatic Motion Activated Light Radar Sensor Switch Ta-MW10
Brand: all-electronics-online.com
SKU: 734290452
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Radar Sensor Switch TA-MW10
Model:	Radar Sensor Switch Ta-MW10
Time Delay:	10sec to 12min
Detect Distance (Radii.):	2-10m
Power Frequency:	50/60Hz
Light Control:	2-2000lux
Service:	OEM/ODM
Light Source:	Incandescent
Lamp Type:	Wall Lamp
Emitting Color:	Warm White
Material:	ABS
Appliances:	Corridor
Waterproof:	Not Waterproof
Type:	Radar Sensor Switch
Theory:	Radar Control

Product Description

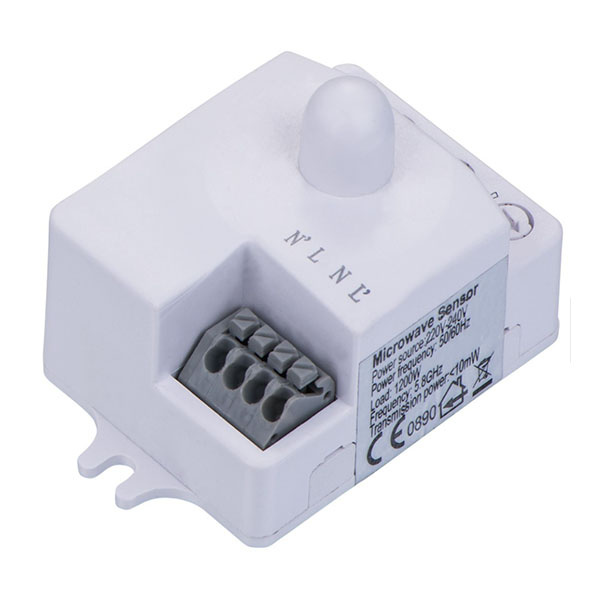

Automatic Motion Activated Light Radar Sensor Switch TA-MW10

Specification:

TA-MW10 is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area.
The Detection way has the below advantages compared with other as follows:
1. Non-contact Detection,
2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light
3. RF interference ability,
4. Transmission power only 0.2 mW, It will not harm the human Body.
Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 20 ~ + 70 Celsius degrees.

Technical Data:

Item No.	Radar Sensor Switch TA-MW10
Input voltage	220V-240V/AC, 110-130V/AC
Rated loading (refer to 220-240V/AC)	1200W(Resistive) 600W(Inductive)
Time delay	10sec to 12min
Detect distance (radii.)	2-10m
Power frequency	50/60Hz
Light control	2-2000lux
Detection angle	360°
HF system	5.8GHz CW radar, ISM band
Output	Switching Transducer
Adjustment type	Knob
IP Rating	IP20
Product Size	447cm

Picture:
