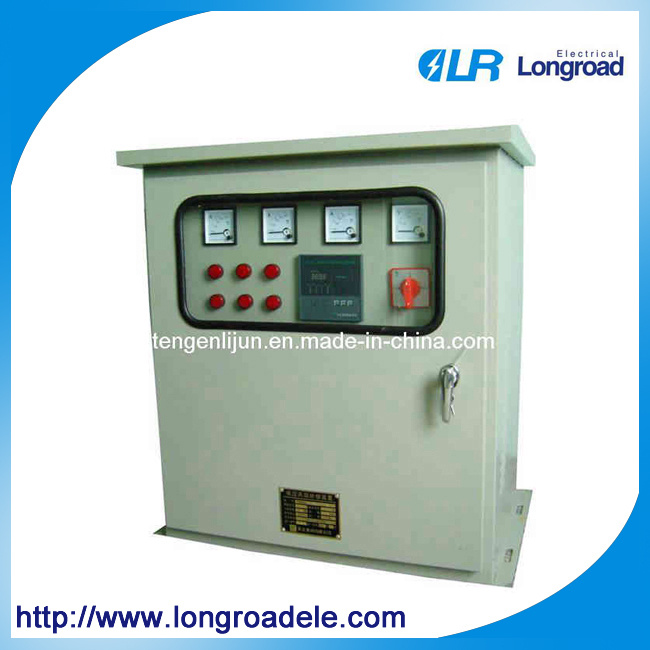

Automatic Reactive Power Compensation Equipment (TBBW Series)

Prod Model:	TBB Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	0.38~0.69kv, AC
Rated Frenquency:	50Hz
Rated Capacity:	1~96kvar
Capacity Deviation:	0~+15%

Product Description

1. TBBW series Shunt Capacitors Type Intelligent Reactive Power Compensation Equipment
The TBBW Shunt Capacitors Type Automatic Reactive Power Compensation Equipment is used in the AC power distribution system terminal with the 1 kV voltage or more to increase power factor, to reduce ciruit loss, to improve the output of the transformer and to make the motor economically operated. It is used parallelly with the motor and the inductive load to automatically tracking compensate to the frequency factor.

2. Main features:
A. Small size of cabinet, light in weight.
B. Applies the automatic reactive compensation controller, has complete functions and good performance. The compensation type can be transformed at liberty between the automate and the manual.
C. Operation can be directly inspected by the displayed number of the frequency factor.
D. It is safely used and protection for over voltage. It will automatically restore to operate if the voltage is normal.

3. Main technical parameter:
A. Rated voltage: 0.38~0.69kV, AC;
B. Rated frenquency: 50Hz;
C. Rated capacity: 1~96kvar;
D. Capacity deviation: 0~+15%;
E. Maximum permitted over-voltage: It is 0.58-1.1as the rated voltage;
F. Maximum permitted over-current: It is 1.30 as the rated current;
G. Cast-in time: 30-90s, transformable;
H. Operation type: Automatic and manual continued operation;
I. Protection degree: Inside IP20, outside IP30.

					Dimension(mm)
TBB0.4-30-3	Rated Voltage(KV)	Rated Capacity(Kvar)	rated Current(A)	Cirucit quantities	A	B	H
TBBW0.4-30-3	0.44	30	43.3	4	700	430	820
TBBW0.4-41-3	0.44	41	59.2	4	700	430	820
TBBW0.4-48-3	0.44	48	69.3	4	700	430	820
TBBW0.4-55-3	0.44	55	79	4	700	430	820
TBBW0.4-3-3	0.44	63	91	5	700	430	820
TBBW0.4-73-3	0.44	73	105	6	850	430	820
TBBW0.4-80-3	0.44	80	115.5	6	850	430	820
TBBW0.4-88-3	0.44	88	127	6	850	430	820
TBBW0.4-96-3	0.44	96	138.6	7	850	430	820
TBBW2 0.4-30-3	0.44	30	43.3	4	600	450	1200
TBBW2 0.4-63-3	0.44	63	91	5	600	450	1200
TBBW2 0.4-73-3	0.44	73	105	6	700	500	1200
TBBW2 0. -96-3	0.44	96	138.6	7	700	500	1200
