Automatic Roller Shutter Tubular Motor with 45/59/92mm
| Price: |
US $ 20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TM07 |
| HS Code: |
73083000 |
| Protect Feature: |
Drip-Proof |
| Number Of Stator: |
Three-Phase |
| Certification: |
Ce SGS |
| Brand: |
Sew / Sej/ Snma |
Product Description

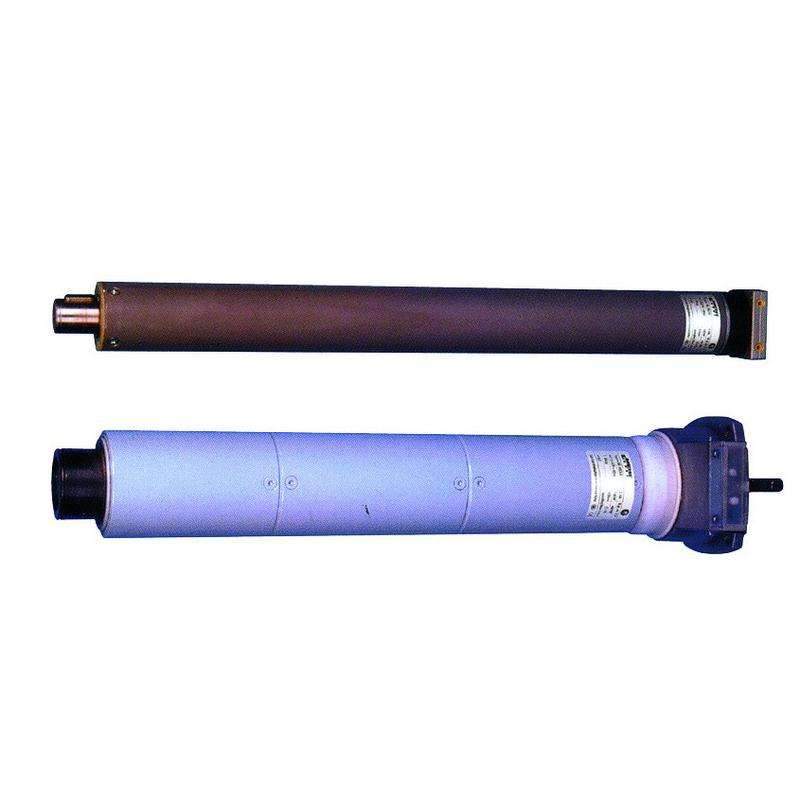

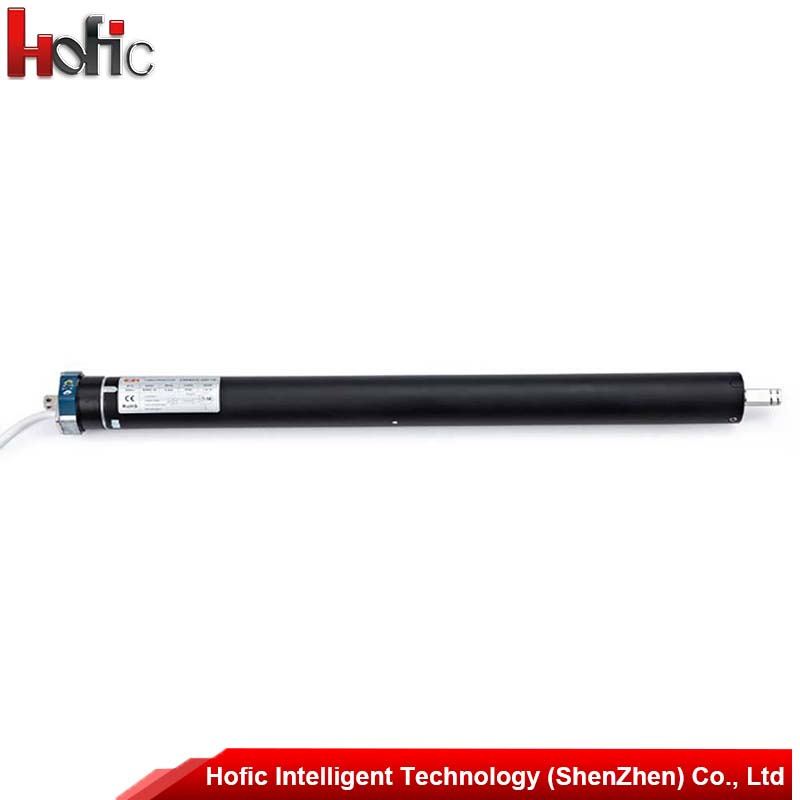

Roller Shutter Tubular Motor
Motor Details
Model HFM01
| 140
| 180
| 230
| 300
|
Voltage
| 230/110
| 230/110
| 230/110
| 230/110
|
Power ( w)
| 685/804
| 710/825
| 780/910
| 710/850
|
Nominal speed (rpm)
| 12/14
| 12/14
| 12/14
| 6/7
|
Nominal torque (Nm)
| 140
| 180
| 230
| 300
|
Work time ( min)
| 4
| 4
| 4
| 4
|
Insulation level
| B
| B
| B
| B
|
Protection
| IP44
| IP44
| IP44
| IP44
|
Tube Diameter (mm)
| 92
| 92
| 92
| 92
|
Size
| 538
| 538
| 538
| 538 |

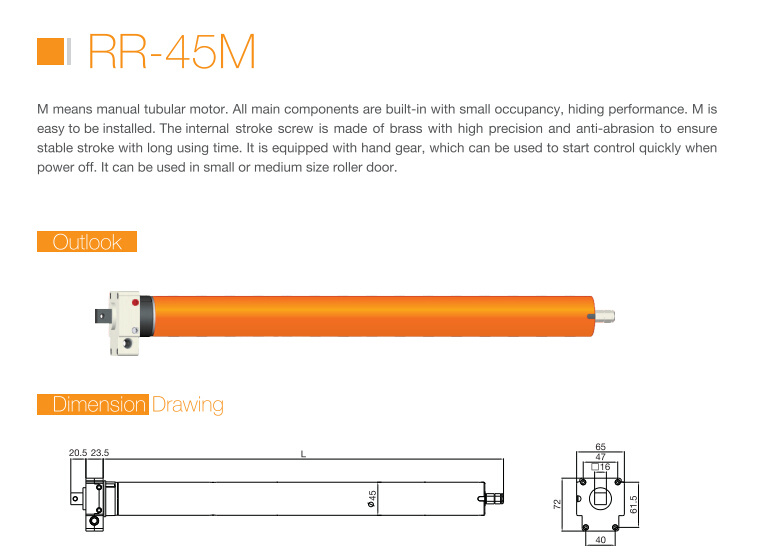

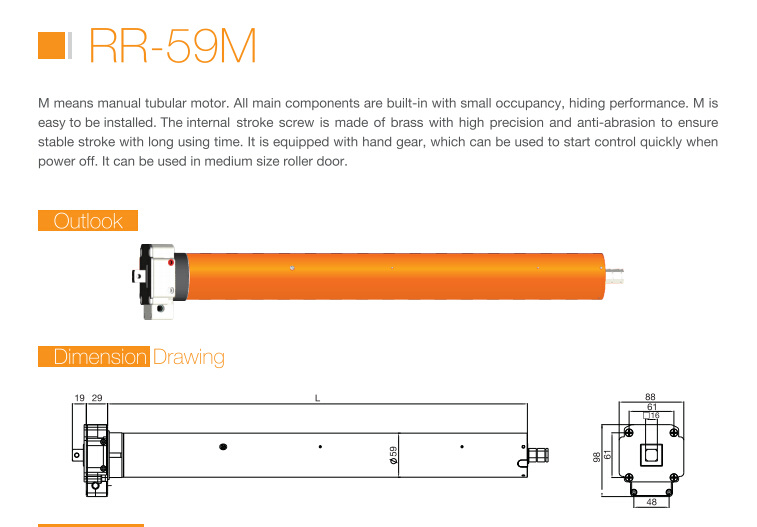

specification:We provide Tubular Motor with fine design, superior quality, solid performance and non-malfunction durability. This particular noise, energy efficiency and executing precision; Which leads to its wide use as an ideal nuclear component for rolling service doors of both commercial and residential application.(Note. The model with the appendix "M"means it has the manual function in case of the power off. )Tubular Motor / Industrial door motor Advantages:Non -malfunction for the brakeDouble sided magnetism, cone magnetism, electromagnetism brake system is used in this new type motor in order to meet different customers'requirement. It takes our team many years' research and test for the material of brake system which makes it perfect.Adopted the plastic sealed technology, all the Tubular Motor components have the accurate location dimension, low
coefficient of the variation, and the service life time can be amounted to 10 years. Advanced design and crafts, the highest
torqueStrong intensity Adopted the special material, the gear is more wear-resisting, toughness and steel feature is more stronger which will increase the service life of the gear box.Oil proof The sealed structure helped the gear oil hard to leak, ensure the gear works normally longer.Accurate limit The accuracy for limit is <+-0.5 degree tolerance, limit configuration by screw pole drive makes accuracy for limit <+- 1.5 degreeLarge effective limit Reasonable and compact design increases effective distance for limit very much, and the Tubular Motoreffectiveness could reach 50 circles.Build-in remote control Good quality and stable receiver built in motor not only shorten the installation time, Effective distance for remote control system is more than 30m.
Certificate
What service you can get from us?1) OEM service for you and your clients.2) Arrange the shipment for you to everywhere.3) CE / ISO-9001 / SGS Certification4) Installation video or instruction for you.5) Available suggestion about the correct doors.6) Professional service supporting with different language, email or phone calling.7) Operating guidance and instruction after installation.8) Professional / Tirelessly after-sales service.9) 12 Months warranty for all doors and accessories.
Hofic Intelligent Technology(Shenzhen)Co., Ltd is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
