| Prod Model: |
hofic-051 |
| HS Code: |
73083000 |
| Quality Warranty: |
12 Months |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
Ce SGS |
| Brand: |
Panasonic/Hofic |
Product Description

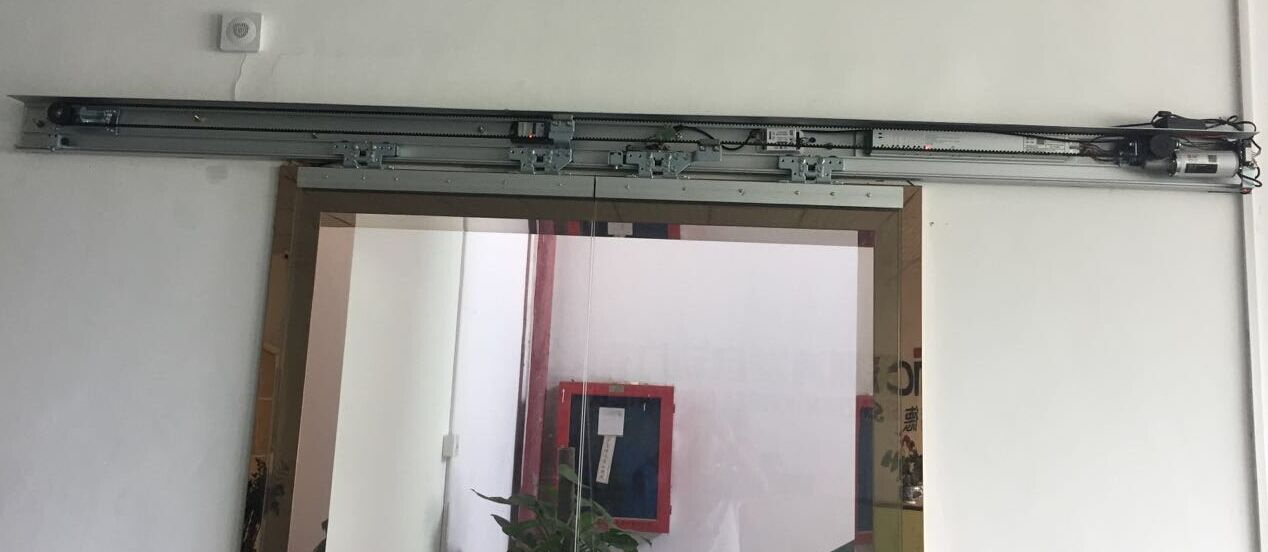

Automatic sliding door operators for both fame doors and frameless glass doors

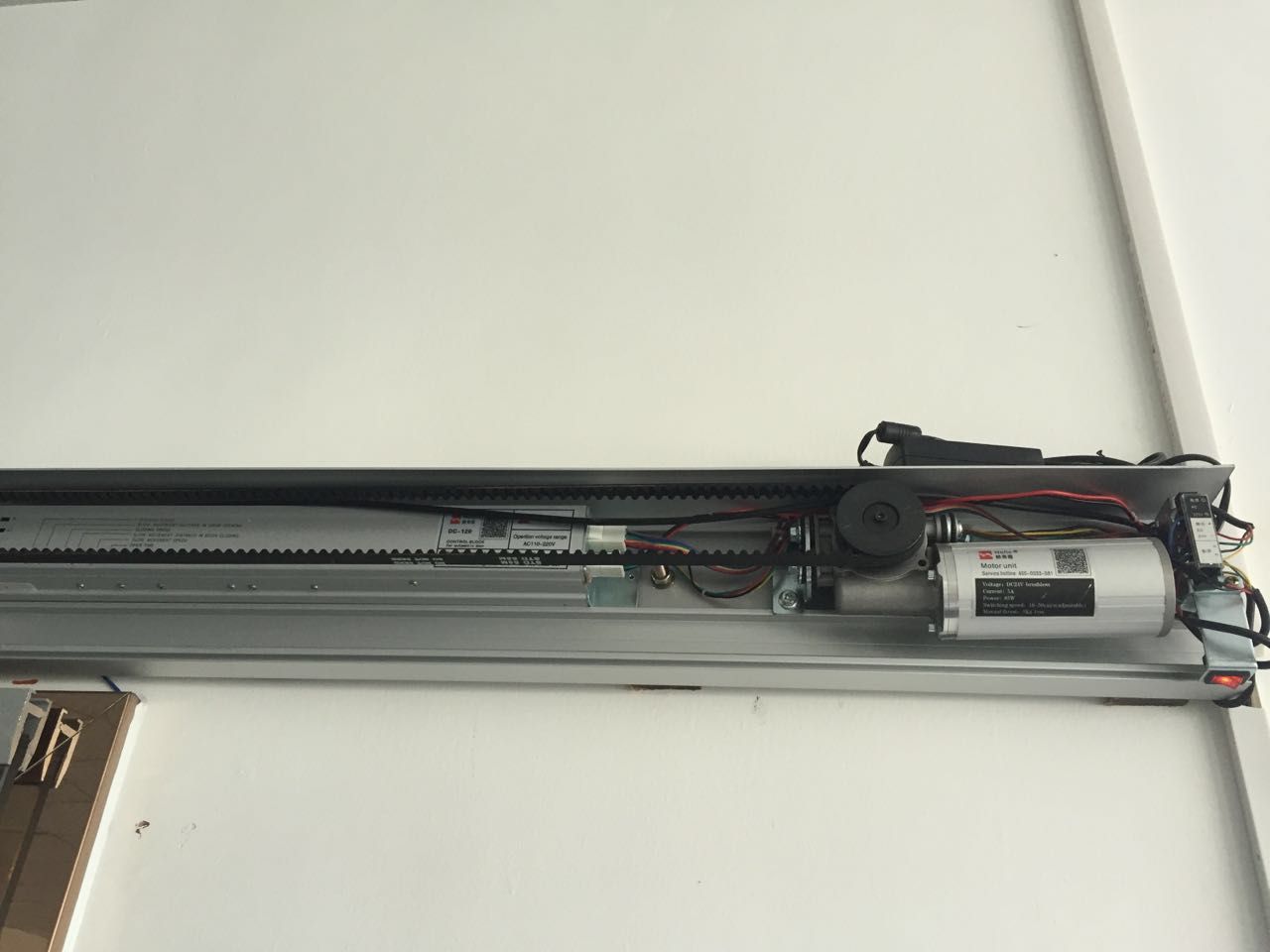

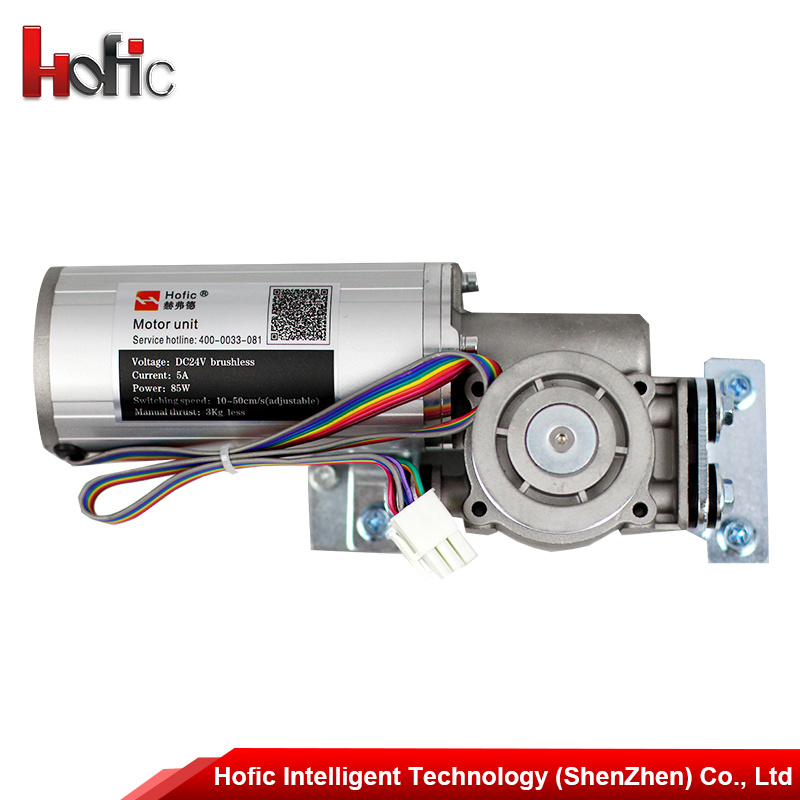

Motor The motor is brushless 24 volt DC with in-built optical sensor for precise movement, operation is silent and maintenance free, delivering high torque and high operating speeds.

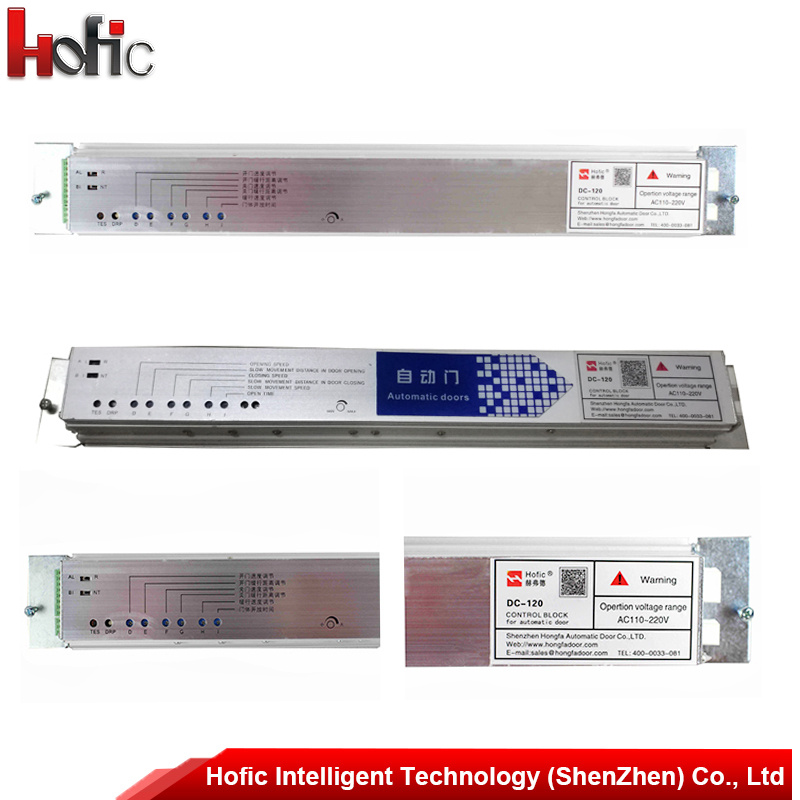

Controller
The intelligent controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
UPS The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.

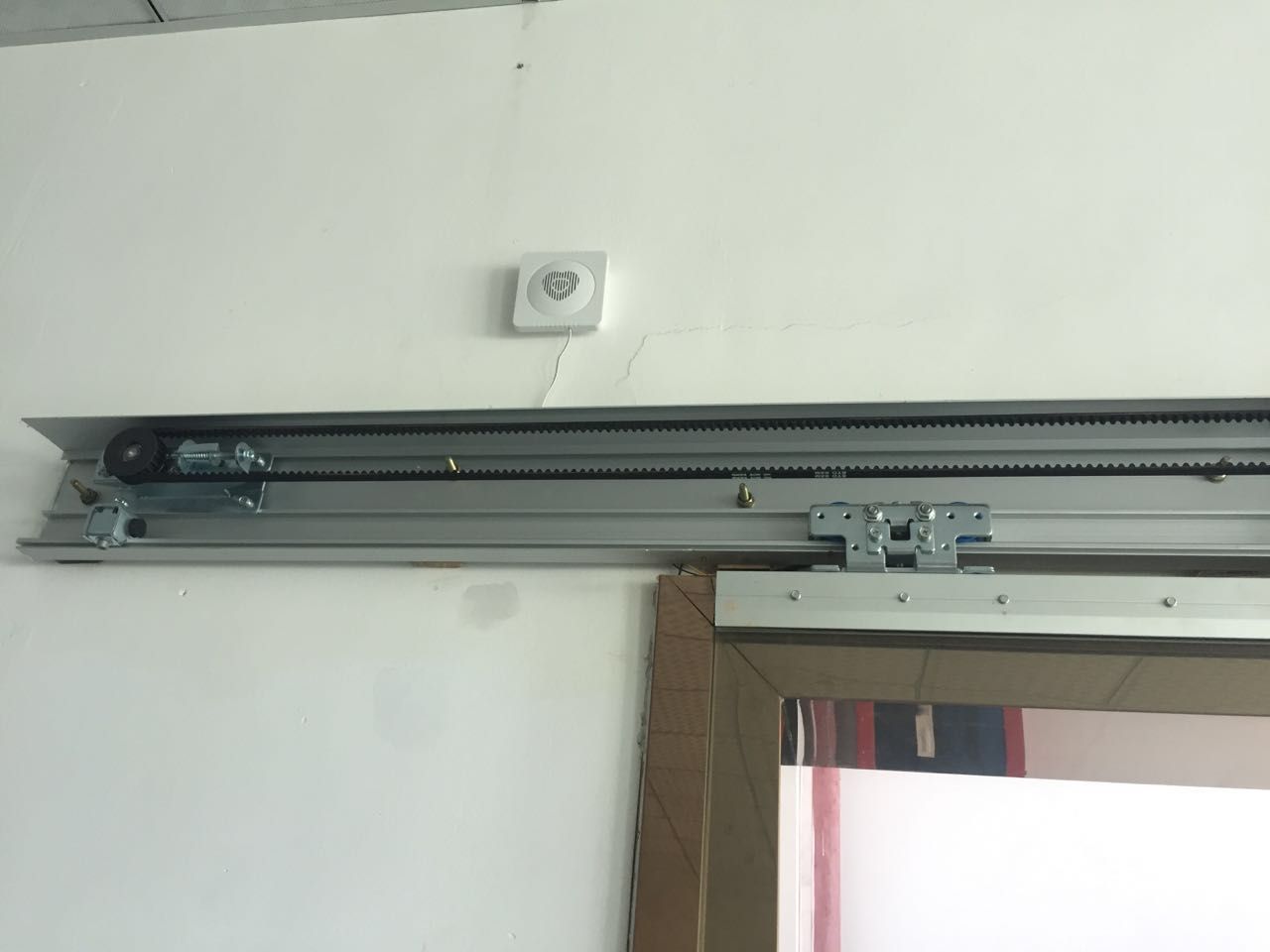

Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.

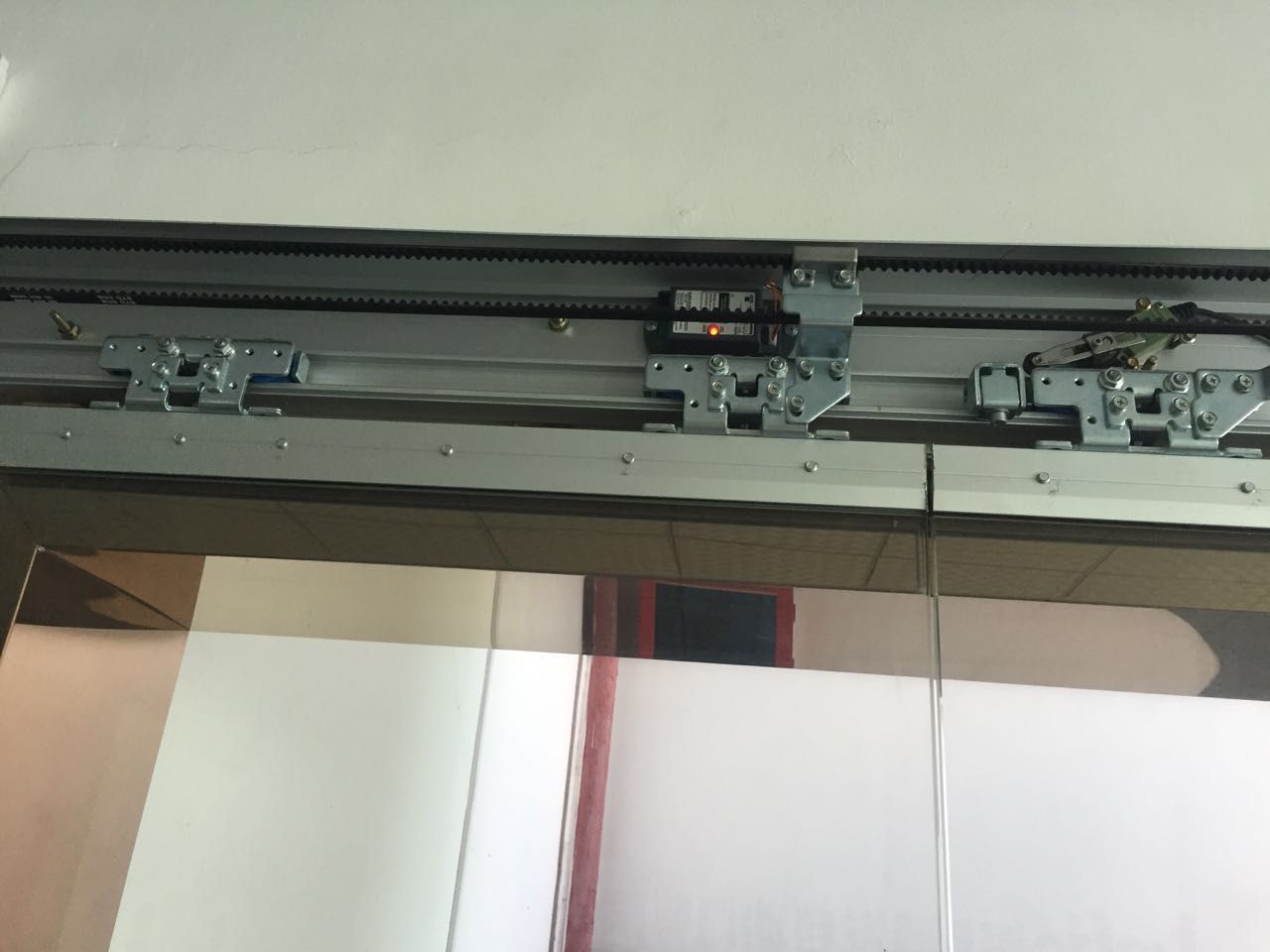

Tracking The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
Locking Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
Safety Door operation will automatically reverse in either direction if movement is obstructed, the sensitivity setting is programmable.
Warranty
Being covered by a 18 months parts warranty
Controller: 1. With long serve life, controller Uses the advanced CPU chip processing control system. Operating parameter be demonstrated in digital.
2. Parameter is adjusted conveniently and nimberly.
3. Can link to entrance manage system
The hoisting mechanisms
1. Advanced structural design, hoop always move on orbital.
2. Convenient altitude control
3. The guards equipment prevented the door from derailed.
4. According to your need, we make hoop of different material.
5. With high intensity, even load, steady move, the hoisting mechanisms can bear 180 kilogram.
Power girder uses aluminium alloy material, with reasonable and credible drive structure. Use life is over 1 million times of operation.
*Doors are designed from 12mm high-quality glass, with good transparency, simple structure and luxury style.
*Active doors move stably.
*Applicable to sites such as hotels, banks and office buildings etc.
F A Q1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Hofic Intelligent Technology(Shenzhen)Co., Ltd is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
