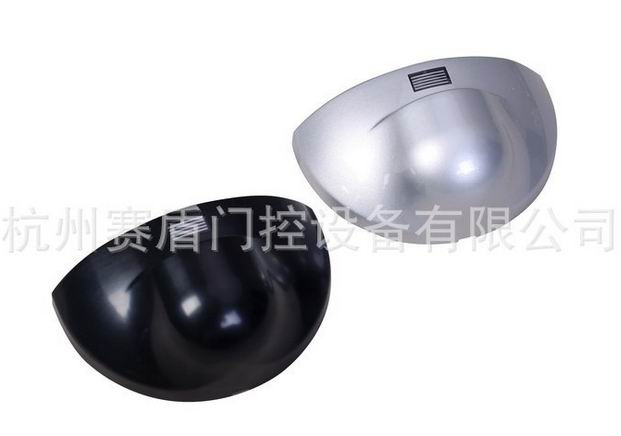

Automatic Sliding Door Sensor Switch, 24GHz

Name: Automatic Sliding Door Sensor Switch, 24GHz
Brand: all-electronics-online.com
SKU: 699505622
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 7-10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	2053.204G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	24GHz
Fix Height (Max):	4m
Standard:	Standard
Size:	120 Type
Application:	Garage
Type:	Microwave Sensor Switch
Certification:	CE
Wires:	NPN (',Three-Wires)
Principle:	Doppler

Product Description

Radar & Microwave sensor 2053.204G

Adopt the intelligent control circuit, enhance the detection sensitivity and steady
X-Y axis inflexible detector adjustment
Imported German 24.125Ghz detector, immune to temperature, humidity

Technology:	Doppler microwave processing
Frequency:	24.125GHz
Transmission density:	<5mW/cm2
Fix height (max):	4m
Fix angle:	0°-90°(vertical) ; -30°- +30°(horizontal)
Detecting area(H=2.2m) :	8m(w)×4m(d)
Detection mode:	Motion
Detection speed:	5cm/s
Power voltage:	12V-30V AC +/- 10%(50Hz-60Hz); 12V- 36V DC
Power:	<2W(VA)
Replay output Max contact voltage: Max contact current: Max transfer power:	42V AC-60V DC 1A 30W(DC)/60VA(AC)
Hold time:	0.5 sec
Temperature:	-20ºC- +55ºC
Protection:	IP54
Standard:	R&TTE 1995/5/EC,EMC 89/366/EEC
Material:	ABS
Color:	Black, silver
Size :	120mm(w)×80mm(h)×50mm(d)
weight:	0.215KG
Cord length:	2.5M
