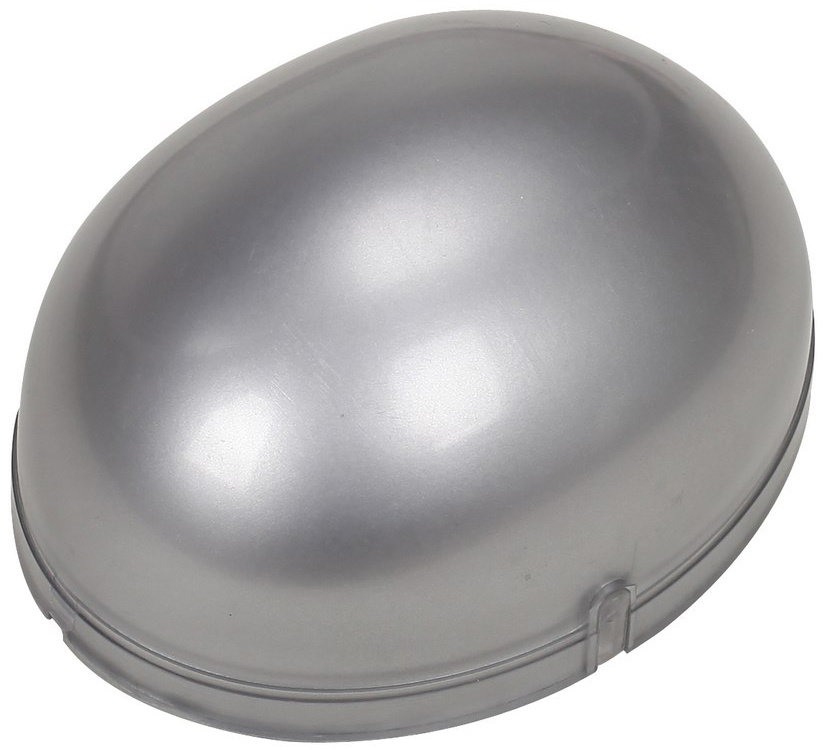

Microwave Sensor

Name: Microwave Sensor
Brand: all-electronics-online.com
SKU: 699491672
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 4-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	2051.102
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmit Frequency:	10GHz
Inductive Area:	4m(W)X 3m(D)
Max Height:	3m
Standard:	Standard
Type:	Microwave Sensor Switch
Certification:	CE
Wires:	PNP (',Three-Wires)
Size:	10GHz
Application:	Sliding Door
Principle:	Doppler

Product Description

Microwave Sensor Instruction
Parameter
Technology: Microwave & Microprocessor
EMC: 89/336EEC
Theory: Doppler data process
Transmit frequency: 10.525Ghz
Transmit frequency density:<5mW/CM2
Power voltage: 12-24V AC or DC
Power frequency: 50-60Hz
Power consumption: <2W
Output: Standard relay output
Contact voltage max: 220VAC , 28VDC
Contact current max: 1A
Hold time: 1s
Radiation angle: horizontal 120°, vertical 80°
Highest fixing height: 4 meter
Inductive area: 4m(w)X 3m(d)
Inductive area adjustment: antenna angle adjustor
Inductive mode: mobility
The minimum mobile speed: 5cm/s
Sensitivity adjustment: adjust resistance screw
Temperature scope: -10ºC-- +55ºC
Material: ABS

Power voltage	12-24V AC or DC
Output	Standard relay output
Radiation angle	horizontal 120°, vertical 80°
Highest fixing height	3m
Inductive area	4m(w)X 3m(d)
The minimum mobile speed	5cm/s
