Jiangsu Bozhiwang Automation Equipment Co., Ltd. >> Automatic Wire/Cable Crimping Equipment, Terminal Crimping Equipment

Automatic Wire/Cable Crimping Equipment, Terminal Crimping Equipment

Automatic Wire/Cable Crimping Equipment, Terminal Crimping Equipment
Price: US $ 9000/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: BZW-2.0+SX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Processing Length: 18mm~1200mm
Application: Cable
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Welding Connection

Product Description

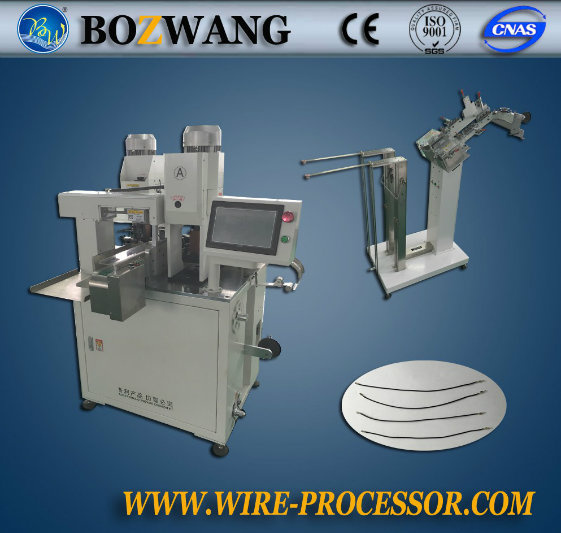

BW-2.0+SX Automatic wire/cable crimping equipment, terminal crimping equipment:




BW-2.0+SX was designed based in a new concept, which results in more wire processed and a simplified structure. The complete procedure is accomplished by one wire jig, protecting the wire and reducing the possibility of an error. This full automatic machine can process 2 wires simultaneously and highly increase the production capacity.

Functions: Pre-feeding, Cutting, Stripping and Crimping. Single or double end Crimping.

Product features:

Applicable wire: AWG 30-18

High Performance: It can process 4000 pieces/hour of single wires and 7000 pieces/hour of double wires. The terminal feeding part and stripping part are optimized to increase the speed process. It uses a servo motor in the driver to ensure precision of 0.1 mm.

Inspecting device: Automatically detection of a flaw, such as if the wire is lack or not, wire over loaded, low pressure and unusual crimping.

Easy to use: It is controlled by the DSP high speed calculating chip as a quality warranty.

Technical parameters:

Processing length18mm~1200mm. It includes feeding conveyor: 6000mm
Stripping lengthTerminal A: 0-25mm. Terminal B: 0-10mm.
Crimping force2.0T x 2 Sets at two ends
PowerAC 220V/50Hz
Air pressure5-6 bar (73-87 ps

Jiangsu Bozhiwang Automation Equipment Co., Ltd, located in the Yangze River Delta Economic center where is beautiful and rich ---Changzhou city, Jiangsu Province, China. Our company is one of the largest manufacturers for the wire processing equipments in China. The area of our company is about 10000m2, and the number of the employees is more than 300 that includes 200 outstanding technicians. Since the establishment, our company always persists the principle "the quality is the life" to develop and grow stronger. <br><br>Our company strictly follows the ISO 9000 quality standard to produce the product, and has superior aftersales service and precise processing equipments in first class, such as full automatic single end & Double ends terminal crimping machine, all kinds of mute terminal crimping machines, computerized wire cutting & Stripping machine, full automatic wire cutting and striping machine, pneumatic wire stripper, mute copper tape machine, PC end heading machine, all kinds of terminal crimping die, terminal blades, tensile tester, twister, computerized tubing cutting machine. <br><br>Our company aims to establish the long term, stable and mutual benefit cooperating relationship with customers from home and aboard to achieve the common development. For many years, our products have earned the reputations and good feedbacks from customers of domestic and foreign. Our products have been supplied to USA, Italy, Demark, Switzerland, Iran, Korea and Middle East market. At Present, the following famous enterprises are the users of our equipment: Shanghai Volkswagen, Yutong, Rui KIA, the Changchen, Foton, Chery and other vehicle plants. Delphi, Samsung, LG, Molex, Xi'an Hai Tian, Otis, Yong da, Kang li, Kone elevator factory and so on. <br><br>The fast development of our company is due to the conception of the science and technology which booms the factory by efficient and reliable investment, and also persist in self innovation, to keep the advanced position in the fierce competing market. With our great efforts, our company has gained the honor of "Excellent private enterprise in Jiangsu Province" "Reliable enterprise in Jiangsu Province" and other honors. <br><br>To face the developing opportunity and challenge in the new century, Changzhou Bowang electronic equipment Co., Ltd will unites and leads all the employees, not only inherits and promotes the excellent traditions, but also develops and completes the quality of product and service, persists in pursuiting the excellence, in order to win more customer's approval and create a better future together.
