(B200 Series) Closed Loop Mode High Accuracy Hall Current Sensor

Name: (B200 Series) Closed Loop Mode High Accuracy Hall Current Sensor
Brand: all-electronics-online.com
SKU: 751598925
Availability: InStock
Rating: 4.5 (92 reviews)

Price:	US $ 6.1-8.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	B200 Series
Supply Voltage:	+5V
Power Consumption:	Less Than 20+ Ipx(Np/Ns)
Linearity:	Less Than 0.1
Galvanic Isolation:	@ 50Hz,AC,1min 2.5kv
Courier:	DHL, TNT, FedEx...

Product Description

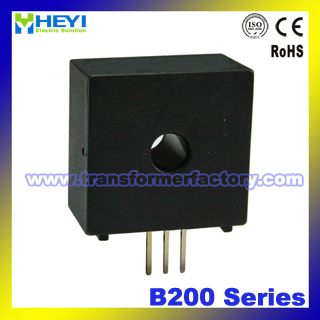

B200 series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	B200-10A	B200-20A	B200-30A	B200-40A	Unit
Rated current(Ipn)	10	20	30	40	A
Measure range(Ip)	20	40	60	80	A
Turns ratio(Np/Ns)	1:1000	1:1000	1:1000	1:1600	T
Internal resister	100±0.1%	50±0.1%	50±0.1%	50±0.1%	Ω
Rated output	@Ip=±Ipn ±1±0.5%				V
Supply voltage	+5V				V
Power Consumption	≤20+ IpX(Np/Ns)				mA
Zero voltage	@Ip=0 +2.5±0.5%				V
Zero voltage drift	@ -40~+85ºC ≤±0.5				mV /ºC
Linearity	@Ip=0-±Ipn ≤0.1				%FS
Total precision	≤±0.7				%
di/dt accurately followed	>50				A /μS
Response time	@100A/μ S,10%-90% ≤500				ns
Galvanic isolation	@ 50HZ,AC,1min 2.5				KV
Bandwidth	@ -1db DC~200				KHZ

Applications

·AC variable speed drives
·Static converters for DC motor drives
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Switched Mode Power Supplies (SMPS)
·Power supplies for welding applications

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+5V 2:OV 3:V0UT

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	10	g
