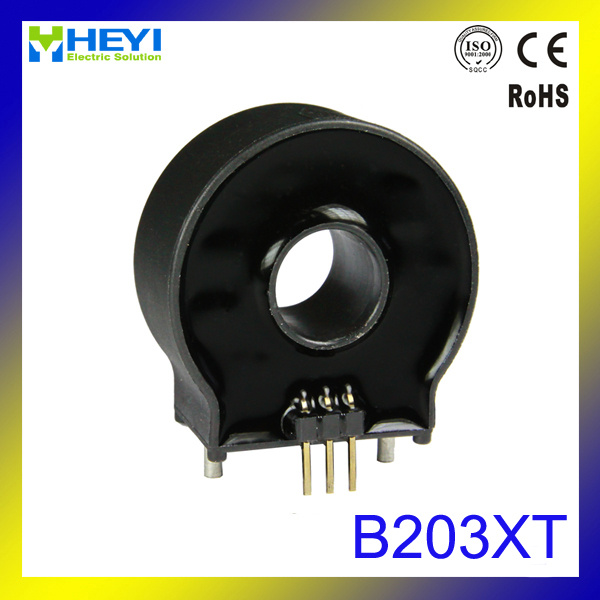

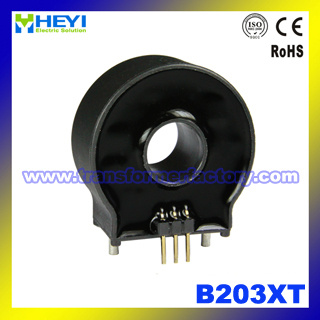

(B203XT Series) High Precision Closed Loop Hall Effect Current Sensor

Name: (B203XT Series) High Precision Closed Loop Hall Effect Current Sensor
Brand: all-electronics-online.com
SKU: 751599865
Availability: InStock
Rating: 4.6 (84 reviews)

Price:	US $ 8.1-8.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B203XT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	B203xt Series
Power Supply:	+5V
Power Consumption:	20+ Ipx(Np/Ns) Ma
Linearity:	Less Than 0.1
Galvanic Isolation:	@ 50Hz,AC,1min 3kv
Bandwidth:	@ -3db 0~200kHz
Courier:	DHL, TNT, FedEx...

Product Description

B203XT Series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit, the size of primary doesn't affect test precision, no matter the location of primary in the hole of current sensor. It can really measure resolution 1000:1 and uses for precision measurement of DC, AC and pulse current.

Electrical data (Ta=25ºC±5ºC)

Type	B203XT- 10A	B203XT- 25A	B203XT- 50A	B203XT- 75A	B203XT- 100A	Unit
Rated current(Ipn)	±10	±25	±50	±75	±100	A
Measure range(Ip)	0-±15	0-±37	0-±75	0-±90	0-±120	A
Turns ratio(Np/Ns)	1:1200	1:1200	1:1200	1:1500	1:2000	T
Inside measuring resistance	30±0.1%	12±0.1%	6±0.1%	5±0.1%	5±0.1%	Ω
Rated output	@Ip=±Ipn ±1±0.2%					V
Supply voltage	+5V					V
Power Consumption	20+ IpX(Np/Ns)					mA
Reference voltage	+2.5±0.4%					V
Zero voltage	@Ip=0 +2.5±0.4%					V
Offset drift	@ -40~+85ºC ≤±0.05					mV /ºC
Output drift	@ -40~+85ºC ≤±0.05					mV /ºC
Linearity	@Ip=0-±Ipn ≤0.1					%FS
Response time	@100A/μ S,10%-90% ≤0.5					μs
Galvanic isolation	@ 50HZ,AC,1min 3					KV
Bandwidth	@ -3db 0~200					KHZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
· Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

Directions for use

1. Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
2. The primary conductor should be≤120ºC.
3. The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
4. The primary turns should be at the top of the sensor for the best magnetic coupling.
5. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
6. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	15	g

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
