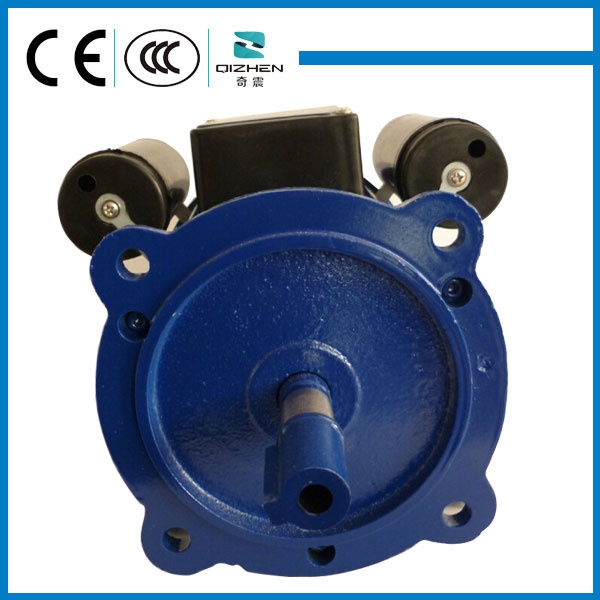

B5 YL Single Phase Motor
| Price: |
US $ 68/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YL63~160 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Frame: |
63~160 |
| Housing: |
Cast Iron / Aluminium |
| Protection Class: |
IP44, IP54 |
| Insulation Class: |
F |
| Core Wire: |
Copper Wire |
| Poles: |
2p, 4p |
| Duty: |
S1 |
| Mounting: |
B5, B35 |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Species: |
Single Phase |
| Starting Mode: |
Capacitor Starting |
| Brand: |
Qizhen |
Product Description
YL series single phase capacitor start and capcitor running electric motor suitable for air compressor, water pump and other equipment requiring high torque.This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintance.Protection Class:IP44/IP54/IP55 Cooling Type:IC0141 Insulation Class:B or F Operation Type:S1 Rated Volt.:115/230,220V Rated Frequency:60Hz(50Hz) Shell Material:casting iron, aluminum alloy(only used below 100).| Technical Data (220V/50Hz) |
| Type | Power | Current (A) | Power Factor (cos¢) | Eff (%) | Speed (r/min) | | Starting Current | |
| Hp | kW |
| YL7112 | 1/4 | 0.18 | 1.23 | 0.93 | 66 | 2800 | 1.7 | 8.1 | 1.6 |
| YL7122 | 1/3 | 0.25 | 1.53 | 0.93 | 67 | 2800 | 1.8 | 9.9 | 1.6 |
| YL7132 | 1/2 | 0.37 | 2.73 | 0.92 | 67 | 2800 | 1.8 | 16 | 1.8 |
| YL8012 | 1/2 | 0.37 | 2.73 | 0.92 | 67 | 2800 | 1.8 | 16 | 1.8 |
| YL8022 | 3/4 | 0.55 | 3.88 | 0.92 | 70 | 2800 | 1.8 | 21 | 1.8 |
| YL8032 | 1 | 0.75 | 4.92 | 0.95 | 73 | 2800 | 1.8 | 29 | 1.8 |
| YL8042 | 1.5 | 1.1 | 7.01 | 0.95 | 75 | 2800 | 1.8 | 40 | 1.8 |
| YL90S-2 | 1 | 0.75 | 4.92 | 0.95 | 73 | 2800 | 1.8 | 29 | 1.8 |
| YL90S-2 | 1.5 | 1.1 | 7.01 | 0.95 | 75 | 2800 | 1.8 | 40 | 1.8 |
| YL90S-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 1.8 | 55 | 1.8 |
| YL90L-2 | 3 | 2.2 | 13.7 | 0.95 | 77 | 2800 | 1.8 | 80 | 1.8 |
| YL100L-2 | 4 | 3 | 18.4 | 0.95 | 79 | 2800 | 1.8 | 110 | 1.8 |
| YL112M-2 | 5 | 3.7 | 22.2 | 0.95 | 80 | 2800 | 1.7 | 160 | 1.8 |
| YL7114 | 1/4 | 0.18 | 1.29 | 0.92 | 63 | 1400 | 1.7 | 7.4 | 1.6 |
| YL7124 | 1/3 | 0.25 | 2 | 0.92 | 62 | 1400 | 1.8 | 12 | 1.8 |
| YL7134 | 1/2 | 0.37 | 2.8 | 0.92 | 65 | 1400 | 1.8 | 16 | 1.8 |
| YL8014 | 1/2 | 0.37 | 2.8 | 0.92 | 65 | 1400 | 1.8 | 12 | 1.6 |
| YL8024 | 3/4 | 0.55 | 3.94 | 0.92 | 69 | 1400 | 1.8 | 21 | 1.8 |
| YL8034 | 1 | 0.75 | 5.22 | 0.92 | 71 | 1400 | 1.8 | 29 | 1.6 |
| YL90S-4 | 1 | 0.75 | 5.22 | 0.92 | 71 | 1400 | 1.8 | 29 | 1.6 |
| YL90S-4 | 1.5 | 1.1 | 7.31 | 0.95 | 72 | 1400 | 1.8 | 40 | 1.6 |
| YL90L-4 | 2 | 1.5 | 9.69 | 0.95 | 74 | 1400 | 1.8 | 55 | 1.6 |
| YL100L2-4 | 4 | 3 | 18.4 | 0.95 | 78 | 1400 | 1.8 | 110 | 1.8 |
| YL112M1-4 | 4 | 3 | 18.4 | 0.95 | 78 | 1400 | 1.8 | 110 | 1.8 |
| YL112M2-4 | 5 | 3.7 | 22.4 | 0.95 | 78 | 1400 | 1.8 | 138 | 1.8 |
| YL132S1-4 | 4 | 3 | 18.4 | 0.95 | 79 | 1400 | 1.8 | 110 | 1.8 |
| YL132S2-4 | 5 | 3.7 | 22.4 | 0.95 | 79 | 1400 | 1.8 | 138 | 1.8 |
| YL132M-4 | 7.5 | 5.5 | 32.9 | 0.95 | 80 | 1400 | 1.7 | 227 | 1.8 |
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
