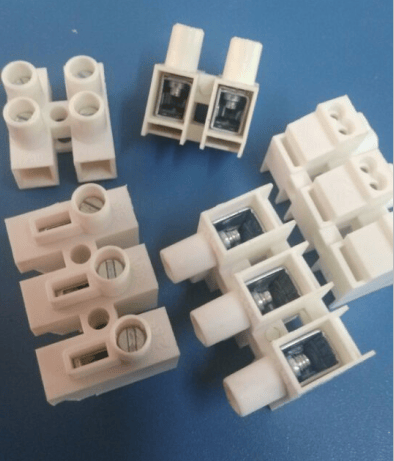

Ballast Terminal Blocks (push-in type) with Two Pole

Name: Ballast Terminal Blocks (push-in type) with Two Pole
Brand: all-electronics-online.com
SKU: 758194995
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 0.125-0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Contact Termination Form:	Screws Fixed

Product Description

Housing Material : PA66 Polymide 6/6
                               94V-2 level 94V-2 Grade
Current:12A
Voltage:450V(VDE/FI/CQC);300V(UL)
Wire Range:

Push in side--0.5-15mm2 solid
                      20-16 solid AWG
Screw side--2.5mm2 Rigid/Flexible
                   18-14 solid AWG
Strip Length:8-9mm/0.32-0.36in

Temperature:-40oC to 110oC(VDE/FI/CQC) 105oC(UL)

Pin Spacing:10mm
Insert:(Steel,Zinc Plated)
Screw: M3*7,Zincplated

Dual Conductors
Screw/push-in combined

Easy insertion and removal
Test slot provide
Chassis Mounting
Choice of 2or 3 poles

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	92.3	16.8	12.3	7.7	3	7.8	5.7	M2.5*4	PE PP PA
6A 6mm 2	115.4	18.8	15.4	8.7	3.2	9.6	6.3	M3*5	PE PP PA
10A 10mm 2	129.3	20.7	16	9.5	4.2	11	7.6	M3*6	PE PP PA
15A 12mm 2	137.8	22.5	18.6	10.3	4.5	11.7	8.6	M3*7	PE PP PA
20A 14mm 2	138	22.5	19	10.7	4.7	12	8.6	M4*6.5	PE PP PA
30A 16mm 2	164	25.5	20	11.7	5.6	13.9	9.3	M4*7	PE PP PA
60A 25mm 2	186	29.2	25.3	14.8	6.6	15.7	10.8	M4*9	PE PP PA
80A 35mm 2	226.8	36.1	29	18	7.8	19.2	13.2	M5*11	PE PP PA
100A 40mm 2	254.8	45	34.7	22.3	9	20.5	19.2	M6*12	PE PP PA

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
