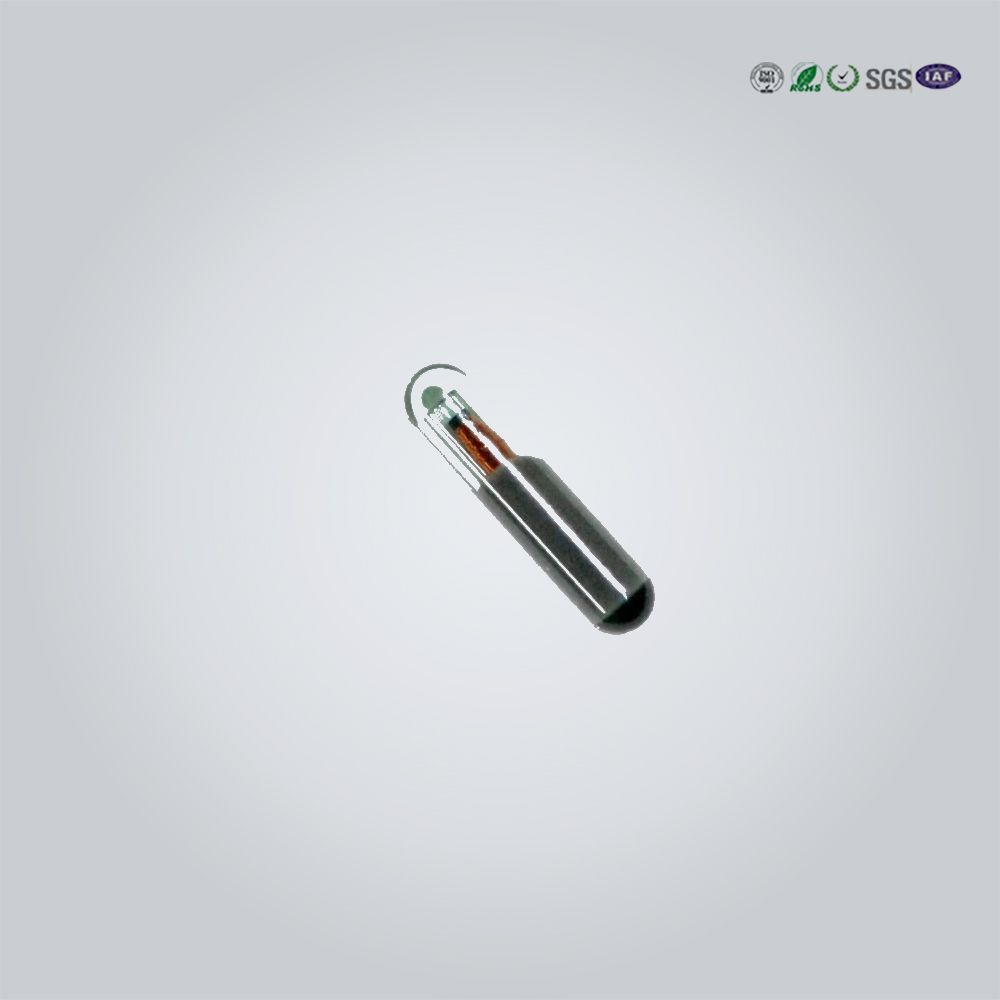

Barcode Stick with Microchip Code for Dog

Prod Model:	RGT0012

Product Description

Data Sheet


Model No.	RGT0012
Case Material	Cylindrical Bio-glass
Chip	IP67
Protocol	ISO11784/5 FDX-B
Size	2.12*12/1.25*7mm/1.4*8mm
Memory	256bit
Reading Range	30cm max( Reader dependent)
Write Endurance	> 1,000,000 cycles
Frequency	134.2KHz/125KHz
Operating temperature	-20 ~ 50ºC
Storage temperature	-40 ~ 70 ºC
Reading Range	0-5cm(depends on the reader and antenna)
Applications	For tracking of pet, management of animal raising and butchering.
Package	Type:Packed by foam
Data Tetention	More than 20 years
Protection Standard	IP67
Power Source	No Battery Required
EMC	Not affected by Normal Electromagnetic Interference or X-Rays
Signal Penetration	No known Blockage by non-magnetic material
Syringe Colour	White
Syringe Sterilization	EO gas
Syringe Length	120mm ± 2mm
Syringe Width	50mm ± 1mm
Syringe Material	Polypropylene
Protection Standard	IP67

Product Description

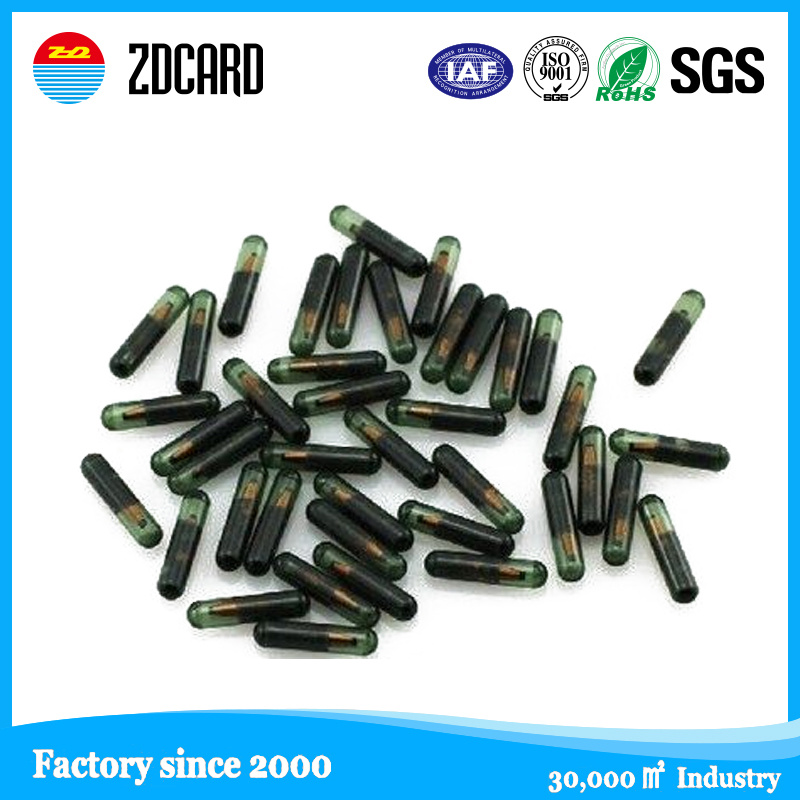

Glass Transponder is a flexible and reliable solution for  livestock and pet  identification.Our products contain the syringe body and RFID glass transponder. It meets the international standard of animal identification.The biggest feature is the chemical stability is good,small size,durable,immeresed in water can also read and write.

It is fully automated manufacturing and direct-bonding technology ensure RFID tag reliability. The material is biochemical coating, bioglass, antibacterial, anti-allergy, making it harmless to animals. We offer sizes to fit any animal, from fish and small mammals, to cats, dogs and horses.

The glass transponder help optimize livestock production and productivity through individualized life cycle management, monitoring and feed control.Once in place in a system, the LF RFID glass transponder is maintenance free and can last for many years making it extremely cost effective.The glass transponder is designed and produced with the super RFID chip from EM Microelectronic and it has both read and write functions, and also has a unique design of data security.

Product Characteristics

1.Resistant to most chemicals
2.Livestock Identification
3.Supply with sterilized syringes
4.Flexible solution
5.Available in several sizes and frequencies
6.Write-protectable memory





Company Introduction

ZDCARD Group is based on Shengdong Industrial Co., LTD. Our company insist on quality and service improvement. We build up a complete production system including card, which covers a big market share in international market. We supply Russian and British E-cards, ID and ATM cards of many Middle East, Africa and South America countries, 2015 Nigeria voter's cards, and metro chip cards for East European countries.

We invested 300 million RMB on our own industrial zone covering 20,000 square meters in Longgang District. We are the production and research center of Sun Yat-sen University and we established Guangdong Zhendong Chengxin Smart Technology Co.,LTD with Micro-Electronics Research Center of Sun Yat-sen University. There are 50 doctors, post-doctorals and professors in our team. Our national lab is an important R&D base of chip, COS, Smart City and logistic solution. Nowadays, our group is working with government to build up a Chinese Chip, Chinese Brain strategy.

Outstanding Service
1.OEM service. we can produce according to your specific requirements
2.Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3.Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5.All enquiries & emails replied quickly, within 8 hours at least.
6,Production time : 5 - 10 working days
7, Shipping:  By express : 3-5 days     By air : 5-10 days       By sea : 12-25 days

Guarantee Statement
1.Refund without condition if there is quality problems
2.Lifetime maintenance service and technical support.

Payment
1. payment method: T/T, L/C, Western Union, Paypal
2. payment term: 50% deposit, the balance against goods ready
