| Prod Model: |
RFID Glass Capsule Tag |
| Dimension: |
1.4X8mm, 2X8mm, 12X8mm |
| Frequency: |
125kHz/134.2kHz |
| Chip: |
Em4200, Em4305, Tk4100 |
| Protocol: |
ISO11784/11785 |
| Reading Distance: |
1~10cm |
| Application: |
Animal Identification/Tracking |
Product Description
Em4305 Animal Tracking RFID Capsule Glass Tag / Small Pet ID Microchip
Data Sheet | Model No. | RGT0012 |
| Case Material | Cylindrical Bio-glass |
| Chip | IP67 |
| Protocol | ISO11784/5 FDX-B |
| Size | 2.12*12/1.25*7mm/1.4*8mm |
| Memory | 256bit |
| Reading Range | 30cm max( Reader dependent) |
| Write Endurance | > 1,000,000 cycles |
| Frequency | 134.2KHz/125KHz |
| Operating temperature | -20 ~ 50ºC |
| Storage temperature | -40 ~ 70 ºC |
| Reading Range | 0-5cm(depends on the reader and antenna) |
| Applications | For tracking of pet, management of animal raising and butchering. |
| Package | Type:Packed by foam |
| Data Tetention | More than 20 years |
| Protection Standard | IP67 |
| Power Source | No Battery Required |
| EMC | Not affected by Normal Electromagnetic Interference or X-Rays |
| Signal Penetration | No known Blockage by non-magnetic material |
| Syringe Colour | White |
| Syringe Sterilization | EO gas |
| Syringe Length | 120mm ± 2mm |
| Syringe Width | 50mm ± 1mm |
| Syringe Material | Polypropylene |
| Protection Standard | IP67 |
Product Picture
Product Description

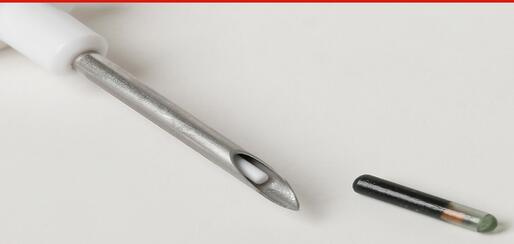

Glass Transponder is a flexible and reliable solution for livestock and pet identification.Our products contain the syringe body and RFID glass transponder. It meets the international standard of animal identification.The biggest feature is the chemical stability is good,small size,durable,immeresed in water can also read and write.
It is fully automated manufacturing and direct-bonding technology ensure RFID tag reliability. The material is biochemical coating, bioglass, antibacterial, anti-allergy, making it harmless to animals. We offer sizes to fit any animal, from fish and small mammals, to cats, dogs and horses.
The glass transponder help optimize livestock production and productivity through individualized life cycle management, monitoring and feed control.Once in place in a system, the LF RFID glass transponder is maintenance free and can last for many years making it extremely cost effective.The glass transponder is designed and produced with the super RFID chip from EM Microelectronic and it has both read and write functions, and also has a unique design of data security.
Product Characteristics
1.Resistant to most chemicals
2.Livestock Identification
3.Supply with sterilized syringes
4.Flexible solution
5.Available in several sizes and frequencies
6.Write-protectable memory
Company Introduction
ZDCARD Group is based on Shengdong Industrial Co., LTD. Our company insist on quality and service improvement. We build up a complete production system including card, which covers a big market share in international market. We supply Russian and British E-cards, ID and ATM cards of many Middle East, Africa and South America countries, 2015 Nigeria voter's cards, and metro chip cards for East European countries.
We invested 300 million RMB on our own industrial zone covering 20,000 square meters in Longgang District. We are the production and research center of Sun Yat-sen University and we established Guangdong Zhendong Chengxin Smart Technology Co.,LTD with Micro-Electronics Research Center of Sun Yat-sen University. There are 50 doctors, post-doctorals and professors in our team. Our national lab is an important R&D base of chip, COS, Smart City and logistic solution. Nowadays, our group is working with government to build up a Chinese Chip, Chinese Brain strategy.
Outstanding Service
1.OEM service. we can produce according to your specific requirements
2.Excellent after-sale service. we have ASS department to follow up your frank feedback and kindly comment for your sample & order.
3.Good production capacity to guarantee quick on-time delivery.
4. Safe packaging in order to goods received well in your hand.
5.All enquiries & emails replied quickly, within 8 hours at least.
6,Production time : 5 - 10 working days
7, Shipping: By express : 3-5 days By air : 5-10 days By sea : 12-25 days
Guarantee Statement
1.Refund without condition if there is quality problems
2.Lifetime maintenance service and technical support.
Payment
1. payment method: T/T, L/C, Western Union, Paypal
2. payment term: 50% deposit, the balance against goods ready
If you are interested in our product. Please feel free to inquiry now!
