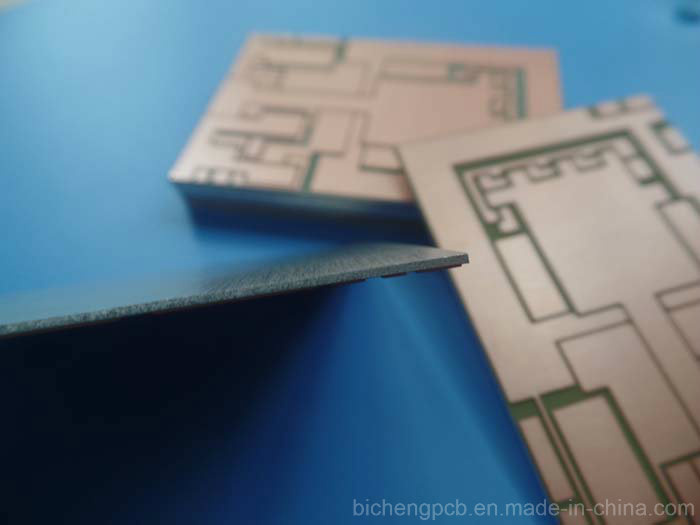

Bare Board Testing A5052 Aluminum Plate PCB Board 0.8mm Thick
| Price: |
US $ 0.90/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-567-V5.67 |
| Board Thickness: |
0.10mm |
| Tg Value Of Board Material: |
60ºC |
| Surface Cu Thickness: |
35 µm |
| Coverlay Colour: |
Yellow |
| Color Of Silkscreen: |
White |
| Peeling Test Of Coverlay: |
No Peelable |
| Surface Finish: |
Immersion Gold |
| Pth Cu Thickness: |
≥20 µm |
| Thickness Of Coverlay: |
25 µm |
| Function: |
100% Pass Electrical Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Application of Antenna |
| Insulation Materials: |
Polyimide |
| Brand: |
Bicheng |
Product Description
Company Profile
Bicheng Enterprise Limited mainly specializes in high frequency and microwave printed circuit
boards. We have rich experiences on the high frequency PCB in the application of power divider,
coupler, combiner, power amplifier, trunk amplifier, base station and 4G antenna etc. The dielectric
constant ranges from 2.2-10.3 etc. We keep inventory at any time for RO4350B, RO4003C, F4B
etc. and can provide quick sample service in time.
We're capable of supplying high frequency PCBs up to 32 layers inclusive of HDI technology, blind
and buried via, hybrid with FR-4 substrate etc.
Printed Circuit Board
High Frequency PCB
Aluminum PCB
Flexible PCB
Performance parameter of MCPCB substrate (The parameter will continue to be improved
without notice)| Test item | Unit | Aluminum base | Copper base | Iron base | Test method |
| Actual vale | Actual vale | Actual vale |
| Peel strength | N/mm | 2.2 | 2 | 2.3 | 4010 of GJB1651 |
| Surface resistance | MΩ | 1 x (10^6) | 1 x (10^6) | 1 x (10^6) | 5020 of GJB1651 |
| Volume resistance | MΩ.m | 3.2 x (10^7) | 3.2 x (10^7) | 3.2 x (10^7) | 5020 of GJB1651 |
| Breakdown voltage | KV/min | ≥2.0 (Breakdown voltage is adjustable according to customers' demend) | ≥1.0 (Breakdown voltage is adjustable according to customers' demend) | ≥1.0 (Breakdown voltage is adjustable according to customers' demend) | 5040 of GJB1651 |
| Solder dipping | ºC/min | 260ºC, 3 minutes, no bubble and delamination | 260ºC, 3 minutes, no bubble and delamination | 260ºC, 3 minutes, no bubble and delamination | 4010 of GJB1651 |
| Flammability | - | FV-0 | FV-0 | FV-0 | 17 of GB/T4722 |
| Thermal resistance | ºC/W | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 | TO-220 |
| Dielectric constant | - | 3 | 3 | 3 | (40ºC,93%,96h) |
| Thermal conductivity of Dielectric | W/M.K | 0.8-8 | 0.8-350 | 0.8-3 | ASTM 5470-D |
| Working temperature | ºC | ≤120 | ≤120 | ≤120 | (40ºC,93%,1Y) |
| Thermal conductivity of metal base | W/M.K | ≥200 | ≥350 | ≥45 | ASTM |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

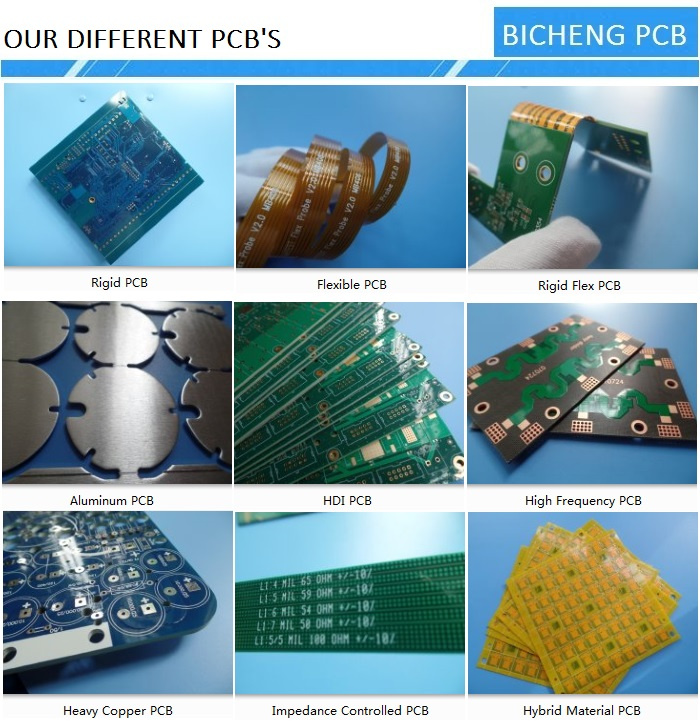

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
