Bare Multilayer PCB with Black Solder Mask Circuit Board

Name: Bare Multilayer PCB with Black Solder Mask Circuit Board
Brand: all-electronics-online.com
SKU: 823351095
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 0.88/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-250-V2.50
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	Immersion Gold
Solder Mask:	Black
Legend Color:	White
Min Line Width (Mil):	6.2 Mil
Min Line Spacing (Mil):	3.8 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

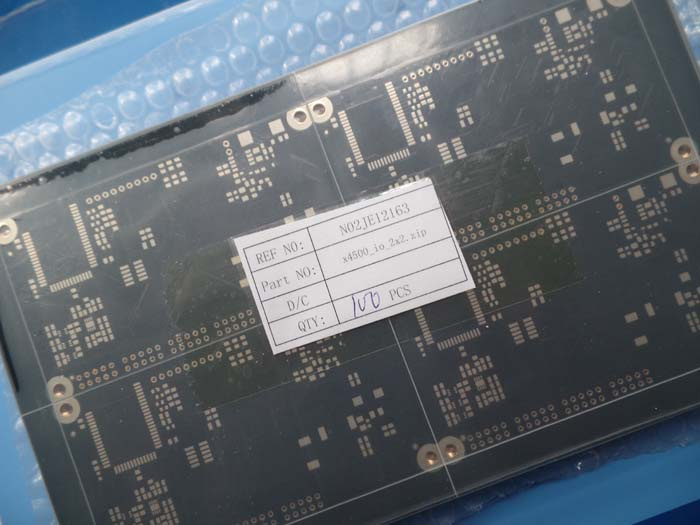

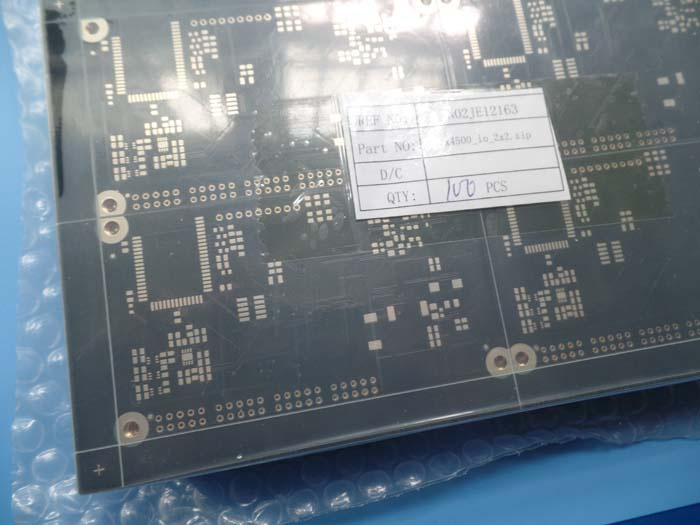

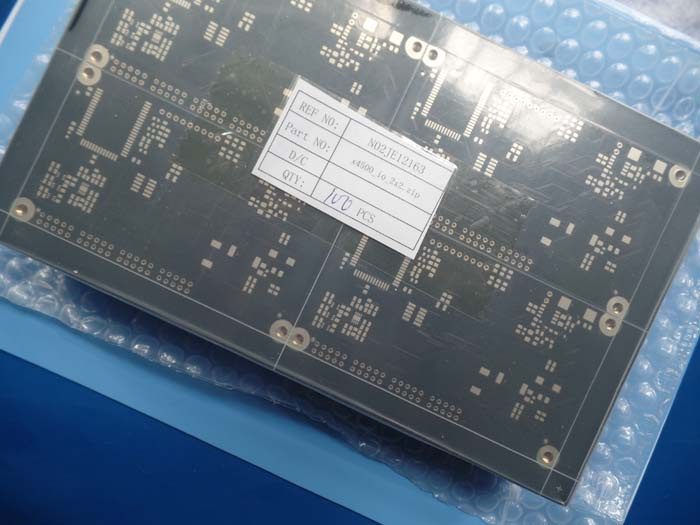

Black Prototype PCB circuit 6 Layer 1.6mm Thick with 4up per Panel Immersion Gold and
V-cut for Mass production in Radar Detector

Commodity Introduction
This is a type of FR-4 PCB for the application of Radar Detector. It's a 6 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.6-1.65mm
	Outer copper foil	>=35 um	41.98
	Inner copper foil	H/H OZ	H/H OZ
	Warp-twist	<= 0.75%	0.41%
Legend	Type	TAIYO IJR-4000MW300	TAIYO IJR-4000MW300
	Color	White	White
	Location	CS & SS	CS & SS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	CS	CS & SS
Min line width (mil)		6	6.2
Min line spacing (mil)		4	3.8
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-S6189BK31	KSM-S6189BK31
	Color	Black	Black
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	Immersion Gold		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	100.00	99.95	99.96	99.93	99.93
2	80.00	79.93	79.99	80.02	79.92

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	2.000	N	2.000	1.975	2.025	2.000
2	4.000	N	4.000	3.975	4.025	4.000
