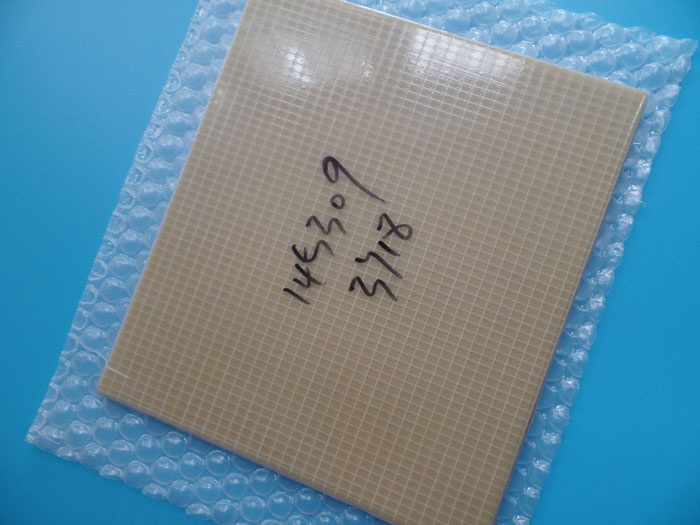

Bare PCB Board Fr4 1.5mm Thick with Thermal Shock Test
| Price: |
US $ 1.02/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-260-V2.60 |
| Finished Thickness: |
1.5 mm |
| Thermal Shock Test: |
No Discolor , No Delamination |
| Electrioal Test: |
100%,Pass |
| Visual Inspection: |
100%,Pass |
| V-Cut Thickness: |
0.39mm |
| Warp And Twist: |
0.21% |
| Angle: |
30º |
| Dielectric: |
FR-4 |
Product Description

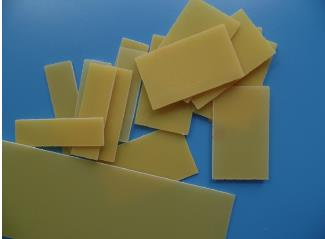

Bare FR-4 Tg170 as spacer from Shengyi 1.5mm thick 288±5ºC thermal shock test in Modem Usb Gsm

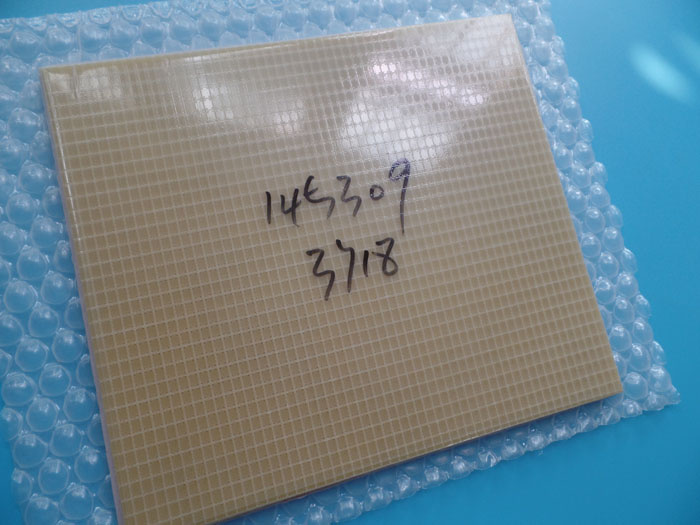

Commodity Introduction This is a type of FR-4 PCB for the application of Modem Usb Gsm. It's a bare board at 1.5mm thick.The base laminate is from ShengYi,It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG 170 | TG 17 |
| Finished thickness | 1.6+/-0.16% MM | 1.5 MM |
| Plating Thickness | PTH Cu thickness | | |
| Inner layer Cu Thickness | / | / |
| Surface Cu thickness | / | / |
| Solder Mask | Material type | / | / |
| Supplier | / | / |
| Color | / | / |
| Single / both sides | / | / |
| S/M thickness | / | / |
| 3M tape test | / | / |
| Legend | Material type | / | / |
| Supplier | / | / |
| Color | / | / |
| Location | / | / |
| 3M tape test | / | / |
| Circuit | Trace Width (mm) | / | / |
| Spacing (mm) | / | / |
| Identification | UL mark | / | / |
| Company Logo | / | / |
| Date code | / | / |
| Mark location | / | / |
| Surface Treatment | ENIG | Nickel | / | / |
| Gold | / | / |
| Gold finger | GF Nickel | / | / |
| GF Gold | / | / |
| Immersion silver | / | / |
| immersion tin | / | / |
| HASL | / | / |
| Lead- free HASL | / | / |
| OSP | / | / |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor,
NO Delamination |
| solder abllity test | / | / |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.39mm |
| Angle | 30+/- 5 | 30º |
Finished dimension (unit: mm): including v-cut| No | Required | Actual Dimension |
| 1 | 199.070 | 199.110 | 199.200 | 199.140 | 199.110 | 199.140 |
| 2 | 180.340 | 180.380 | 180.470 | 180.400 | 180.380 | 180.400 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 0.610 | Y | 0.650 | 0.575 | 0.625 | 0.675 |
| 2 | 0.900 | Y | 0.925 | 0.850 | 0.850 | 0.975 |
| 3 | 1.020 | Y | 0.950 | 1.000 | 0.950 | 1.025 |
| 4 | 1.100 | Y | 1.100 | 1.050 | 1.050 | 1.150 |
| 5 | 2.110 | Y | 2.075 | 2.100 | 2.150 | 2.075 |
| 6 | 2.500 | Y | 2.425 | 2.525 | 2.575 | 2.550 |
| 7 | 3.000 | Y | 2.950 | 3.025 | 3.075 | 3.025 |
| 8 | 3.500 | N | 3.550 | 3.550 | 3.550 | 3.450 |
Learn PCB and Buy PCBLaminates --- FR-4 brief
FR-4 (or FR4) is a kind of material grade designation, which means that the resin material is flame resistant
(self-extinguishing). FR-4 is a kind of material specifications, not a material name, but a material grade. "FR" stands for flame retardant, and denotes that safety of flammability of FR-4 is in compliance with the standard UL94V-0.
FR-4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate with good strength to
weight ratios. With near zero water absorption, FR-4 is most commonly used as an electrical insulator posses
-sing considerable mechanical strength. The material is also known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
