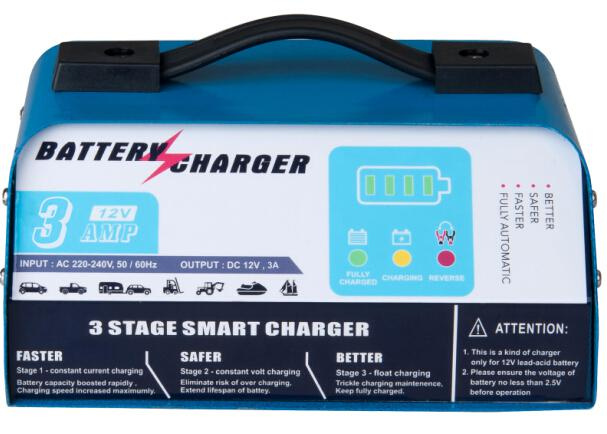

Battery Charger (3A -20A)

Name: Battery Charger (3A -20A)
Brand: all-electronics-online.com
SKU: 761916585
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	US $ 14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	T111-1A03/06/10/16/20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
3steps:	3A-20A
Power Source:	Electric Power
Output Power:	>1000W
Type:	DC/AC;Chargring
Application:	Electric Appliance
Certification:	TUV
Brand:	Toking

Product Description

Constant Current Charge Phase: charging with constant current, charged capacity increase rapidly, battery volt increase.

Constant Voltage Charge Phase: charging with constant voltage is, charged capacity keep increasing, battery voltage increase slowly, charging current reduce.
Battery fully-charged: charging current reducing and lower than Floating Charge Switch Current, charging voltage reducing to Floating Charge Voltage

Floating Charge Phase: keep charging with Floating Charge Volage.when necessary to keep the battery fully charger

	Battery Charger Technical Specifications
Specification		12V 3A	6V/12V 10A	6V/12V 16A	6V/12V 20A	6V/12V 10A
Rated AC Input Voltage		AC100-120V,AC220-240V,50-60HZ
Operation Voltage		AC90-130V,AC200-260V,50-60HZ
Charging Voltage		DC14.4V
Charging current		DC2.5V
Charging Current		Max 3A	Max 6A	Max 10A	Max16A	Max 20A
AC Input Current	AC110V input	Max1.2A	Max2.0A	Max2.8A	Max4.8A	Max5.6A
	AC220V input	Max 0.6A	Max 1.0A	Max 1.4A	Max 2.4A	Max 2.8A
Ambient Temperature		0-40°C
Charger Type		3step,full-automatic charging cycle
Battery Type		12v lead-acid battery(normal,maintenance-free,CA-CA,AGM and Gel Battery)
Battery Capacity		6-60AH, maintenance charge to 1100AH	10-120AH, maintenance charge to 180AH	20-200AH, maintenance charge to 300AH	30-320AH, maintenance charge to 400AH	40-400AH, maintenance charge to 600AH

Certificate:ISO 9001:2008

Product certificate: CE-EMC/LVD,RoHS,TUV,E-Mark,ETL,RCM(C-TICK)

Monthly output: 70000pcs

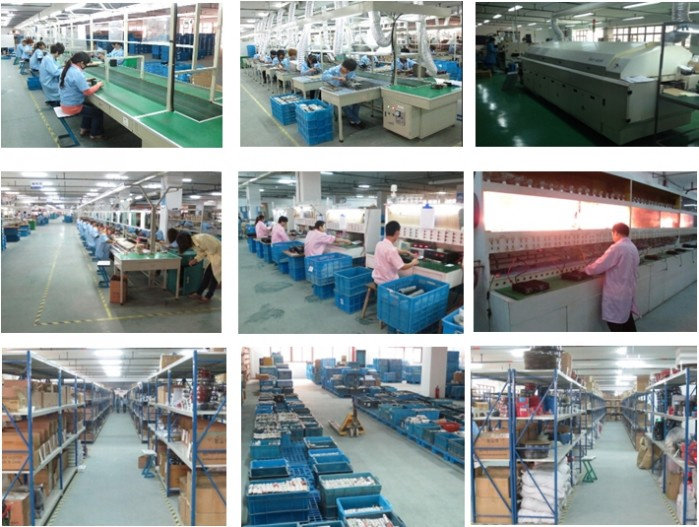

Workshops:

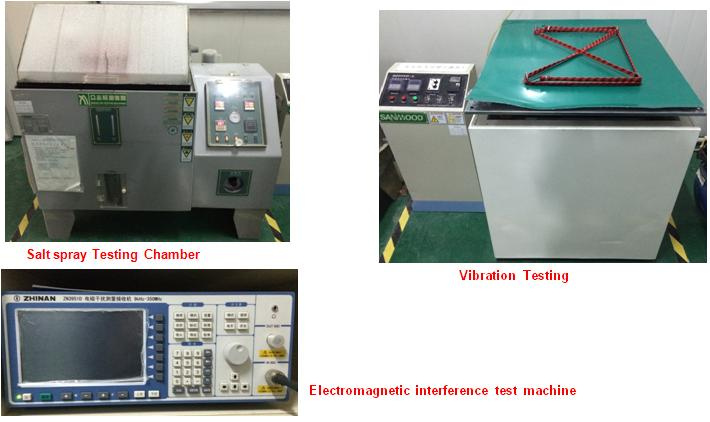

TEST MACHINES:

HANGZHOU NEWSUN ELECTRIAL PRODUCTS FACTORY is a TOKING's company, located in Hangzhou Economic& Technologic Development Zone. The company covers the area of over 10, 000 square meters.

Now our products include: Fire fighting emergent indicating light(LED type)100 series, fire fighting emergent indicating light(EL type)400 series and hard PVC pipe flame ring series. These lamp products all have inspected and tested by the fire fighting products evaluating center of public security ministry, and reach the standard of GB17945-2000 fire fighting emergent light. The flame ring has passed the inspection by state fireproof construction material quality supervision & inspection center, and reaches the standard of ga304-2001 flame ring of PVC water discharge pipe.

The company has strong technical power, advanced technology, and complete inspecting equipment. In this industry, it also firstly passed the authentication of GB/T19001-2000 and ISO90012000 quality management system.

The company sticks to the basis of "honest and credit", and the tenet of "live on quality, make interests by management, develop based on innovation, and satisfy customers with good service". It insists on the quality principle of "elaborately producing, satisfying needs, trying to be beyond their expectation". In the spirit of perseverant working style, the company provides customers excellent service and high quality product to keep expanding domestic market and to explore international market.

Because of best price, best quality control, and best serive, we have many customers in the global, the main customers from USA, Europe, South American and so on.

With our high standard products and best service, we hope to cooperate with you for mutual development, and for the bright future.

Toking is you best choose, and also best friend. Welcome your inquiry!
