Prod Model: |
T111-0005 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
8steps: |
5A |
Power Source: |
Electric Power |
Output Power: |
>1000W |
Type: |
DC/AC;Chargring |
Application: |
Electric Appliance |
Certification: |
TUV |
Brand: |
Toking |

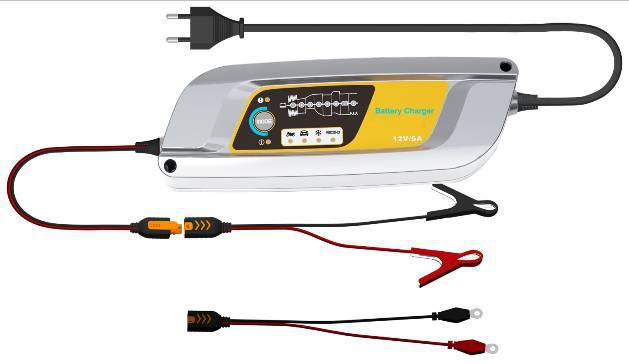

Product Description
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates of the battery restoring the battery capacity.
STEP2 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 3 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
STEP 6 PULSE
Maintaining the battery at 95-100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charger
Specification | 12V 1A | 12V 2A | 12V 3A | 12V 4A | 12V 5A | 12V 7A | 12V 8A | 12V 10A |
Rated AC Input Voltage | AC 220-240V ,50-60HZ |
Operation Voltage | AC 200-260V,50-60HZ |
Charging Voltage | 14.4V | Normal-14.4V,AGM14.7V,Recond-15.8V |
Activated Voltage | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
Charging Current | Max 1.0A | Max 2.0A | Max 3.0A | Max 4.0A | Max 5.0A | Max 7.0A | Max 8.0A | Max 10.0A |
AC Input Current | Max 0.2A | Max 0.4A | Max 0.6A | Max 0.8A | Max 0.9A | Max 1.0A | Max 1.2A | Max 1.4A |
Back Current Drain | <5mA |
Ripple Wave | <4% |
Ambient Temperature | 0-40ºC |
Charger Type | 6 steps, Full-automatic Charging Cycle | 8 steps, Full-automatic charging cycle |
Battery Type | 12V lead-acid battery(Normal,Maintenance-free,CA-CA,AGM and Gel Battery) |
Battery Capacity | 2-40AH, maintenance charge to 100AH | 4-60AH, maintenance charge to 120AH | 6-80AH, maintenance charge to 160AH | 6-100AH, maintenance charge to 160AH | 10-120AH, maintenance charge to 200AH | 14-150AH, maintenance charge to 240AH | 16-160AH, maintenance charge to 260AH | 20-200AH, maintenance charge to 300AH |
Insulation Class | IP65 | IP65 | IP65 | IP65 | IP65 | IP44 | IP44 | IP44 |
Certificate:ISO 9001:2008
Product certificate: CE-EMC/LVD,RoHS,TUV,E-Mark,ETL,RCM(C-TICK)
Monthly output: 70000pcs

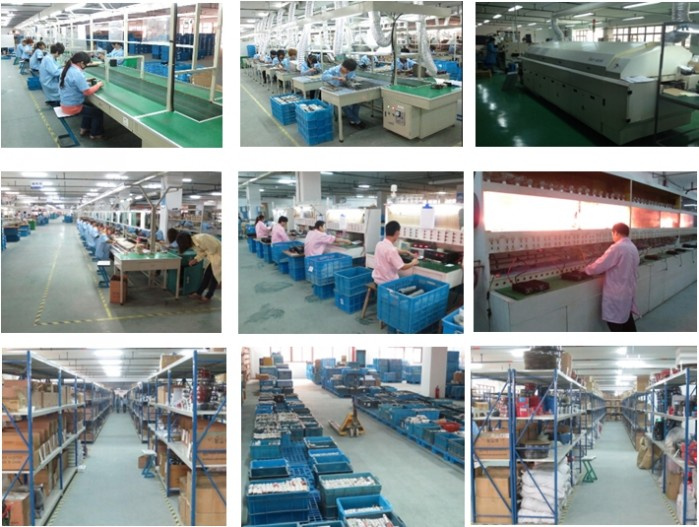

Workshops:

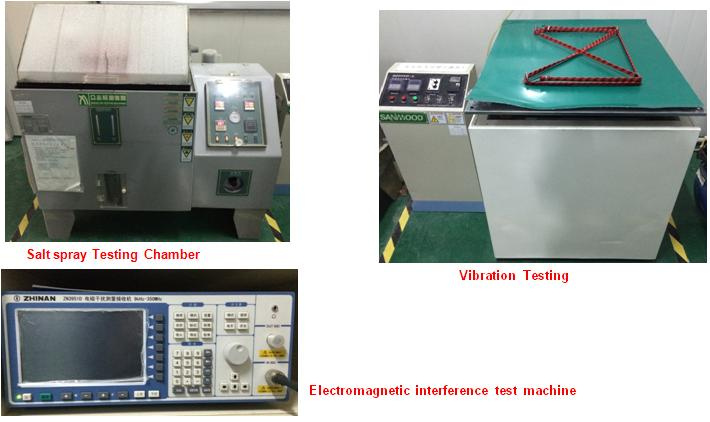

TEST MACHINES:
HANGZHOU NEWSUN ELECTRIAL PRODUCTS FACTORY is a TOKING's company, located in Hangzhou Economic& Technologic Development Zone. The company covers the area of over 10, 000 square meters.
Now our products include: Fire fighting emergent indicating light(LED type)100 series, fire fighting emergent indicating light(EL type)400 series and hard PVC pipe flame ring series. These lamp products all have inspected and tested by the fire fighting products evaluating center of public security ministry, and reach the standard of GB17945-2000 fire fighting emergent light. The flame ring has passed the inspection by state fireproof construction material quality supervision & inspection center, and reaches the standard of ga304-2001 flame ring of PVC water discharge pipe.
The company has strong technical power, advanced technology, and complete inspecting equipment. In this industry, it also firstly passed the authentication of GB/T19001-2000 and ISO90012000 quality management system.
The company sticks to the basis of "honest and credit", and the tenet of "live on quality, make interests by management, develop based on innovation, and satisfy customers with good service". It insists on the quality principle of "elaborately producing, satisfying needs, trying to be beyond their expectation". In the spirit of perseverant working style, the company provides customers excellent service and high quality product to keep expanding domestic market and to explore international market.
Because of best price, best quality control, and best serive, we have many customers in the global, the main customers from USA, Europe, South American and so on.
With our high standard products and best service, we hope to cooperate with you for mutual development, and for the bright future.
Toking is you best choose, and also best friend. Welcome your inquiry!
