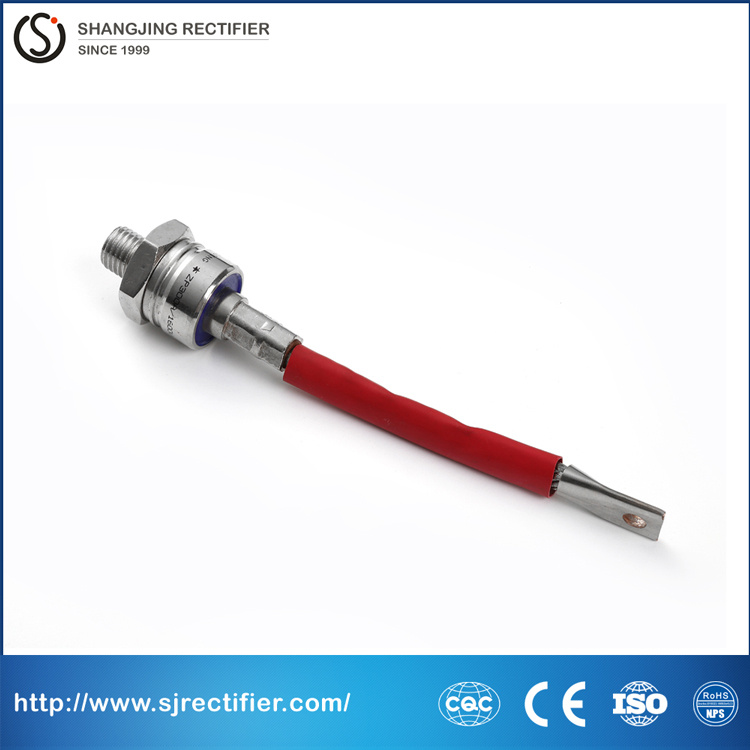

Battery Charges Rectifier Diode for Generator

Name: Battery Charges Rectifier Diode for Generator
Brand: all-electronics-online.com
SKU: 783821755
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	US $ 6-60/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZP500A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	200-5000V
Irrm:	<15mA
If(AV):	500A
Vfm:	<1.8V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Motor Control ,Welder
Model:	Zp500A
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range

Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor control

Type	IF(AV)	IF(RMS)	VFM	VRRM	IRRM	Rjc	Tj	Wt	Outline	Heatsink
	THS55° C		25° C
	A	A	V	V	mA	° C/W	° C	kg
ZP5A	5	7.9	≤ 1.6	200-2000	≤ 2	≤ 4.0	-40 ~ +150	0.010	A1	SZ13
ZP10A	10	16	≤ 1.6	200-2000	≤ 2	≤ 2.5		0.025	A2	SZ14
ZP20A	20	31	≤ 1.6	200-2000	≤ 6	≤ 1.4		0.027	A3/C1	SZ15
ZP30A	30	47	≤ 1.6	200-2000	≤ 6	≤ 1.0		0.110	C2	SZ16
ZP50A	50	79	≤ 1.6	200-2000	≤ 12	≤ 0.6		0.140	C3	SZ16
ZP100A	100	160	≤ 1.8	200-2000	≤ 12	≤ 0.3		0.205	C4	SL17
ZP200A	200	310	≤ 1.8	200-3000	≤ 12	≤ 0.2		0.325	C5	SL18
ZP300A	300	470	≤ 1.8	200-3000	≤ 15	≤ 0.11		0.470	C6	SL19
ZP400A	400	550	≤ 1.8	200-5000	≤ 15	≤ 0.075		0.750	C7	SL20
ZP500A	500	630	≤ 1.8	200-5000	≤ 15	≤ 0.068		0.925	C7/C8	SL20

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
