Bc Solid PE 80% Braiding Rg59 Power Coaxial Cable

Name: Bc Solid PE 80% Braiding Rg59 Power Coaxial Cable
Brand: all-electronics-online.com
SKU: 727307465
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 0.15/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Rg59+2DC Coaxial Cable Application:	Broadband CATV/Video
Rg59+2DC Coaxial Cable Outer Diamet:	0.61mm
Rg59 Coaxial Cable Center Conductor:	Cu or Cu Clad Steel(CCS),Bc
Rg59 Coaxial Cable 1st Shield:	Bonded Foil
Rg59 Coaxial Cable 2ND Shield:	Braided Shield
Braid Shied Meterial:	Bc,Tc,CCA,CCS
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	UL
Type:	Coaxial Cable

Product Description

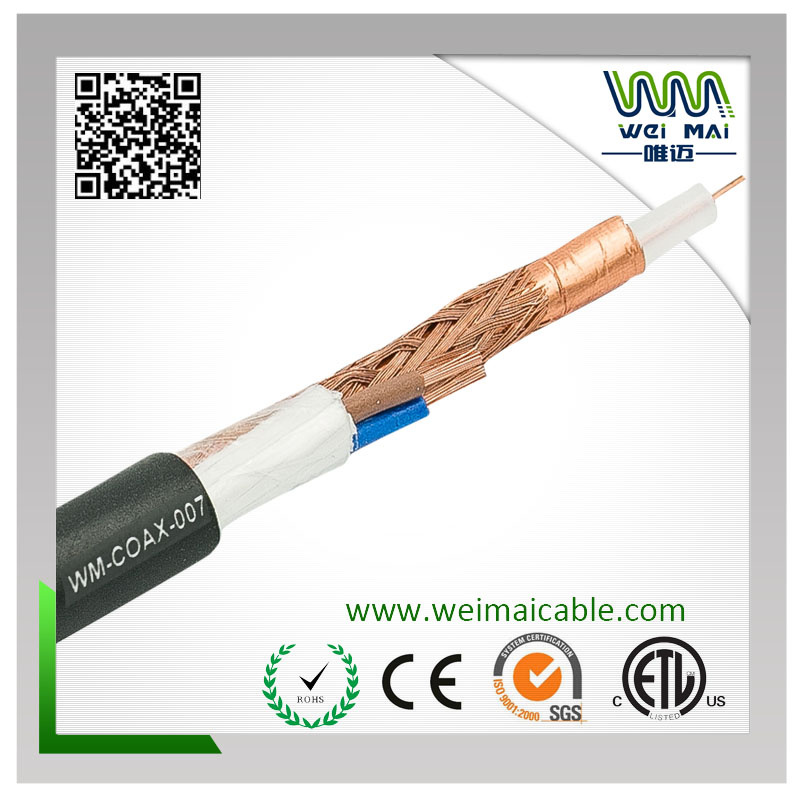

BC Solid PE 80% Braiding RG59 Power Coaxial Cable
Item: WM-COAX-007

1) Construction

Center Conductor:

0.6+0.01mm Copper /CU

Dielectric:

3.3+0.05mm Solid PE

Shield:

CCA Foil

Braid Coverage:

96X0.12mmCCA Al alloy 80%Coverage

Jacket:

7.80+0.10mmPVC white/Black

Power Lines:

2X23X0.15mm CCA Al alloy

Package:

100M/Roll 305M/Drum 1000ft/500ft/Pull Box

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Max. (dB/100 ft.)	Frequency (MHz)	Max. (dB/100 ft.)
5	0.86	400	5.10
55	2.05	450	5.40
83	2.45	500	5.70
187	3.60	550	5.95
211	3.80	600	6.20
250	4.10	750	6.97
300	4.45	865	7.52
350	4.80	1000	8.12

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
