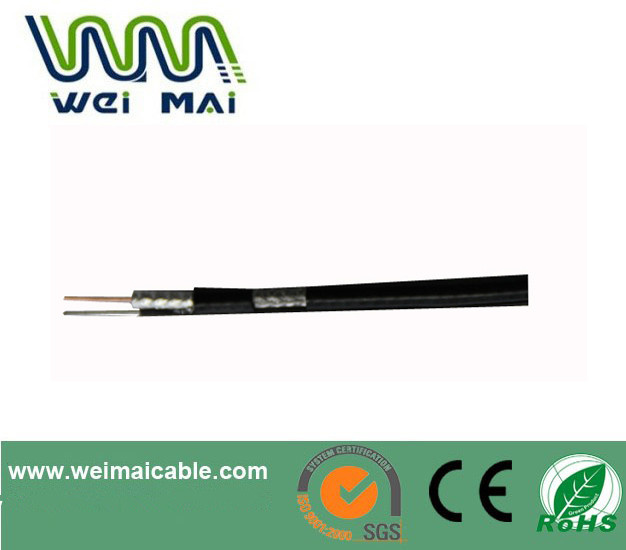

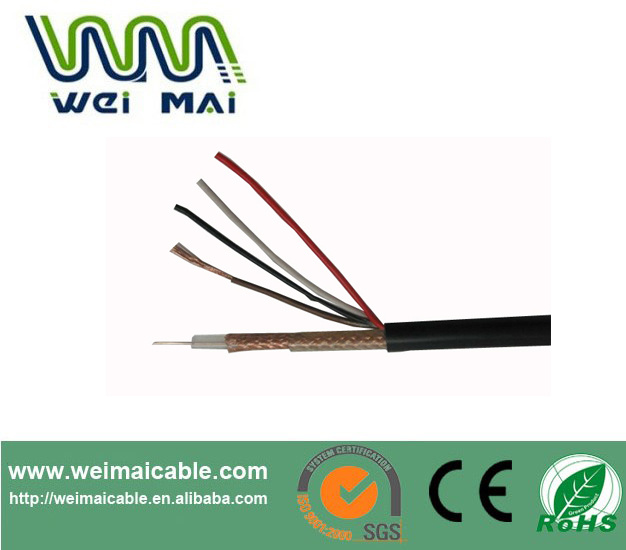

Cheaper Rg59 Siamese Coaxial Cable (WMO2)

Name: Cheaper Rg59 Siamese Coaxial Cable (WMO2)
Brand: all-electronics-online.com
SKU: 727186605
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 0.04/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg59 Siamese Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang China (Mainland
Brand Name:	Weimai or OEM
Linan Coaxial Cable Application:	Broadband CATV/Video
Linan Coaxial Cable Insulation Meterial:	Foam PE
Linan Coaxial Cable Center Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Linan Coaxial Cable Braid Shied Meterial:	Bc, Tc, CCA, CCS, Al-Mg
Linan Coaxial Cable Jacket:	PVC
Linan Coaxial Cable 1st Shield:	Bonded Foil
Linan Coaxial Cable 2ND Shield:	Braided Shield
Linan Coaxial Cable Impedance:	75 Ohm
Application:	Coaxial Cable
Certification:	VDE

Product Description

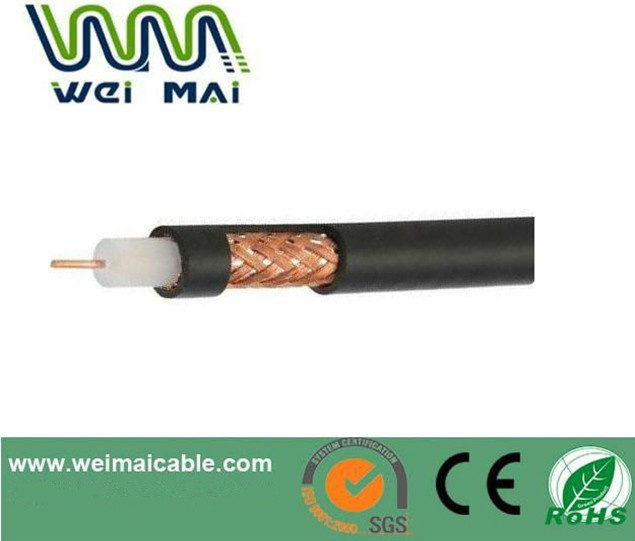

Linan high quality cheaper rg59 Siamese Coaxial CableWML2
Specifications
1.coaxial cable: ccs,copper,bc,t/c
2.CE RoHs
3.Coaxial cable
4.Small MOQ

1) Specifications
Center Conductor:	0.81 + 0.005mm Solid Copper
Dielectric:	3.66 + 0.05mmFoam PE
Braid Coverage:	95% Copper
Jacket:	6.1 + 0.10mm PVC
Jacket Thickness:	0.0381mm
2-18AWG
Center Conductor:	2-18 AWG Stranded Copper (7X0.38mm)
Dielectric:	Solid PE 1.85mm
Jacket:	(2-18): 3.81mm
2) Characteristics
Spark Test:	2000 VAC
Dielectric Strength:	Conductor to Shield: 2000VDC
Impedance:	75 + 3 Ohm
Capacitance:	16.0pF./Ft. Nom
Velocity of Propagation:	84%
DCR: Conductor:	10.5 Ohms/1000Ft.(Nom.) Coax
DCR: Conductor:	6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:	20dB min (5-860MHz)
Return Loss:	15dB min(860-2500Mhz)
SRL:	20dB (10-350MHz) 100% Swept Tested

3) Attenuation
Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Max. (dB/100 ft.)
1	0.30
10	0.86
50	1.91
100	2.78
200	4.06
400	6.01
700	8.47
900	9.82

1000

10.47

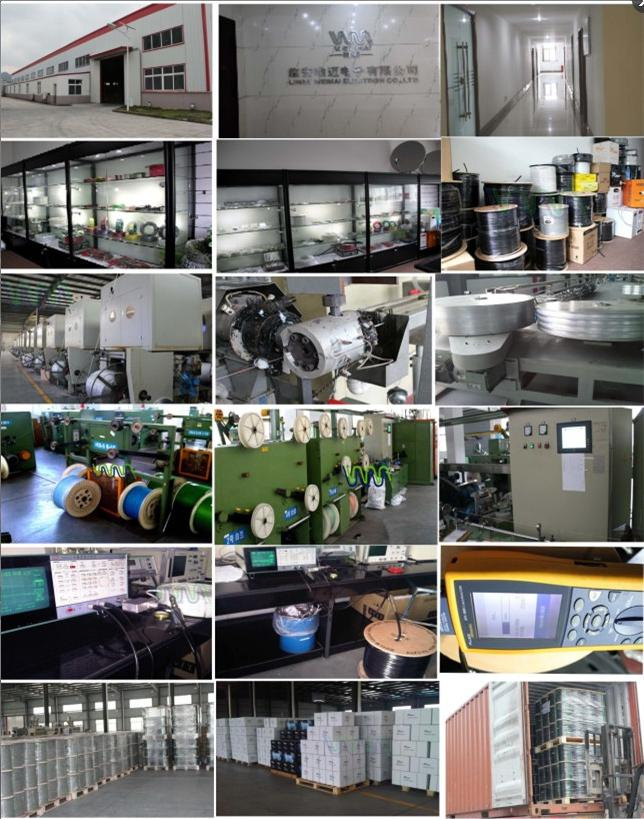

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
