Bea Microwave Sensor of Automatic Door with Ce Certificate

Name: Bea Microwave Sensor of Automatic Door with Ce Certificate
Brand: all-electronics-online.com
SKU: 704609652
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 40-50/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PAD1009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Bea
Detection Type:	Motion Detector

Product Description

Bea Microwave Sensor of Automatic Door

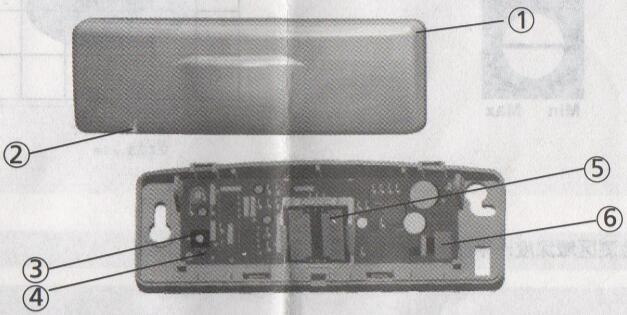

1. Shell 2. Light cross 3. Potentiometer to adjust sensitivity 4. Indicator light (LED)

5. Planar antenna 6. Cable connector

Technical data

Transmitting frequency: 24.125GHz

Radiant power: <20 dbm EIRP

Transmitting power density: <5mW/cm²

Max. mounted height: 3m

Dip angle: 25°, 30°, 35°, 40°

Max. detection area: 4m(W)*2.2m(D)

Detection mode: motion

Min. speed: 5cm/s(axial direction)

Supply voltage: 12V~24V AC +/-10%; 12V~30V DC

Supply frequency: 50Hz ~ 60Hz

Power consumption: <2W(VA)

Ambient temperature: -20ºC ~ +55ºC

Protection grade: IP52

Size: 142mm(W)*46mm(H)*55mm(D)

Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.
With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.

Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.

Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.

As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.
Welcome you to have a visit to our factory!
