Bea Motion Sensor

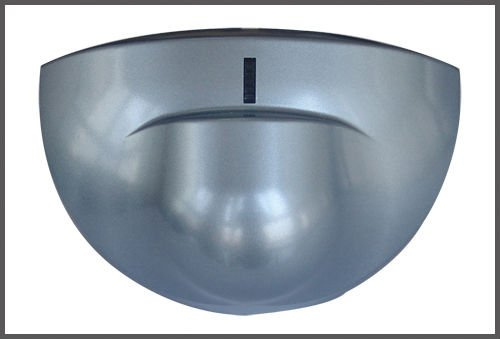

Name: Bea Motion Sensor
Brand: all-electronics-online.com
SKU: 695923172
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EAGLE 6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmitting Frequency:	24G Hz
Type:	Microwave Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Basement
Size:	118 Type
Certification:	ISO

Product Description

Specifications

Transmitter frequency:24.175 GHz
Max.mounting height:3m
Motion detection
Supply voltage:12V~24VAC/DC+30%/-10%
Hold time:0.5s

Technical specifications:

Technology: microwave and microprocessor

Tranmitter frequency:24.175GHz

Transmitter radiated power: <5mW/cm²

Max. mounting height: 3m

Tilt angles: 0º~90º vertical and -30º~+30º lateral

Detection mode:motion

Minimum speed: 5 cm/s(measured in the sensor axis)

Supply voltage:12V~24VAC/DC+30%/-10%

Manis frequency:50~60Hz

Power consumption:<2W(VA)

Output relay(free of potential change-over contact)

Max. contact voltage:42V AC~60V DC

Max. contact current: 1A(resistive)

Max. switching power:30W(DC)/60VA(AC)

Hold time:0.5s

Temperature range: -20°c~+55°c

Degree of protection: IP54

Norm conformity: R&TTE 1999/EC; EMC 89/336/EEC

Material:ABS

Color of housing: black smoled, aluminium finish

Dimensions:120mm(W) x 80mm(H) x 50mm(D)

Weight: 0.215kg

Length of cable:2.5m
