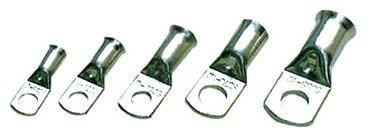

Bell Mouth Copper Connecting Terminal (SC-JGB)

Name: Bell Mouth Copper Connecting Terminal (SC-JGB)
Brand: all-electronics-online.com
SKU: 734902125
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	US $ 0.28/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-JGB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Different Size Available
Application:	Conduct Electricity
Type:	Single Hole Terminals
Material:	Copper
Brand:	Jma
Shape:	Bell Mouth

Product Description

DTGB, DTGS (JGY) Copper Lug;
The products are suitable for the connection of copper conductors ( section 1.5-1000mm² ) in power cable with electronic equipment. They are made of with higher 99.9 percent pure copper tube T2 and coated with tin: Working temperature -55º C~150º C
(1) Material: Copper;
(2) Type: DTGB1.5~DTGB1000;
(3) According to customer's drawings

1. Good quality in much competitive price
2. Series spy hole copper connecting terminal(cable lug)
3. Tinned coated
Copper lug information:
1. The advantage is that it has good electric conductance, electrochemlcal corrosion resistance, long service life
2. Certification: CE. ISO9001
3. These products are applicable for the circular wire, hemicyclic wire with power supply cable in distribution equipment. They are made of with higher 99.9 percent pure copper tube T2 and coated with tin.

Item No.	Cable spec(mm 2 )	Applicable Bolts	Dimensions(mm)
Item No.	Cable spec(mm 2 )	Applicable Bolts	D	d	L
DTGB1.5	1.5	m4.2,m5.2,m 6.2	3.5	1.8	18
DTGB2.5	2.5		4	2.5	19
DTGB4	4		4.8	3.1	21
DTGB6	6	m5.2,m6.2,m8.2 m8.2, m10.5,m12	5.5	3.8	24
DTGB10	10	m5.2,m6.2,m8.2 m8.2, m10.5,m12	6.8	4.8	25.5
DTGB16	16	m6.2,m8.2,m10.5	7.5	5.5	30.5
DTGB25	25	m6,m8, m10,m12	9	7	34
DTGB35	35		10.5	8.2	38
DTGB50	50		12.5	9.8	45
DTGB70	70	m8.2,m10.5, m12.5,m16.5	14.5	11.5	50
DTGB95	95	m8.2,m10.5, m12.5,m16.5	17.5	13.8	55.5
DTGB120	120	m10.5,m12.5,m16.5	19.5	15.5	63
DTGB150	150	m10.5,m12.5,m16.5	21	16.5	71
DTGB185	185	m10.5,m12.5, m16.5, m20.5	23.5	18.8	78
DTGB240	240	m10.5,m12.5, m16.5, m20.5	26.5	21	92
DTGB300	300	m10.5,m12.5, m16.5,m20.5, m22.5	30	24	102
DTGB400	400		34	26.5	113
DTGB500	500		38	30	123
DTGB630	630		45	35	135
DTGB800	800		50	39	170
DTGB1000	1000		56	44	200

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
