| Prod Model: |
TK108-ER82 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Inside Backup Battery: |
Rechargeable 3.7V 500mAh Li-ion Battery |
| GSM Frequencies: |
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chip: |
U-Blox Chipset (or Mtk3339) |
| Receiving Sensibility: |
-160dBm |
| Positioning Accuracy: |
≤10m (Wide-Open Area) |
| Speed Accuracy: |
≤0.2m/S (Wide-Open Area) |
| Offline Data Logger: |
8MB |
| Cut Off Engine: |
by SMS, APP, Platform |
| APP: |
Android |
| Language: |
English, Spanish, Portuguese, Arabic Language |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
Product Description
TOPTEN is original manufacturer of GPS tracker and car alarm system. Our products are:
GPS Car Tracker
GPS Motorcycle Tracker
GPS Tracker for Fleet Management
OBD GPS Tracker
Mini GPS Tracker
Waterproof GPS Tracker
GPS Car Alarm System

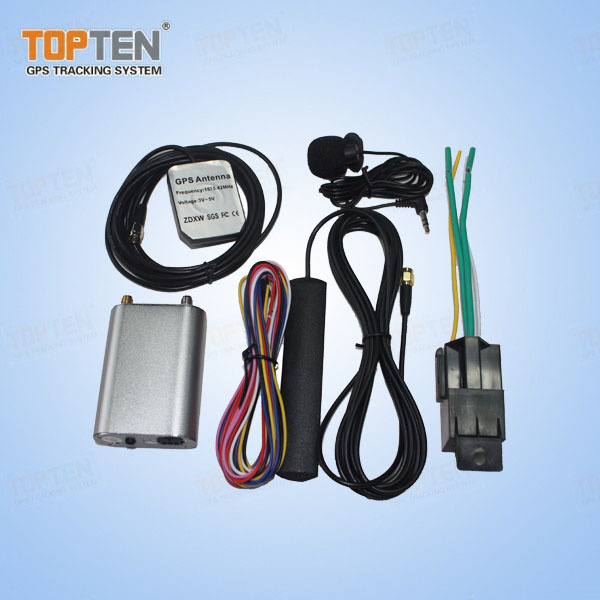

Best GPS Tracker with Fuel Sensor TK108-ER82
* 1 Products Descriptions:
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in motion sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
15. Support SOS button(optional)
16. Support analog input for fuel monitoring
17. I/O: 3 inputs and 1output
18. It can upgrade the normal car alarm with remote alarm function.
19. Compact size with water-proof design
20.8MB offline data logger, it can store 8192 waypoints
*2. For the MOQ: Only when the payment by L/C, or the buyer needs rebanding, it need MOQ.
*3. For the Delivery Period:
Order <100PCS, delivery is arrange in 3 working days upon receipt of the payment;
Order >100PCS, delivery time is about 3-7 days or according to our production schedule.
*4. Payment:
Bank transfer, Western Union, Paypal
*5. Lead time:
Order <100PCS, delivery is arrange in 3 working days upon receipt of the payment; Order >100PCS, delivery time is about 3-7 days or according to our production schedule
We have our own R&D team developing 3-5 new models each year.
Products are with CE, RoHS, FCC certificate.
Africa, South America, Southeast Asia and Middle East are our main export market.
We not only provide devices, but also professional technical support and satisfactory after-sales service.
| GSM module | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chipset | U-blox chipset (or MTK3339) |
| GPS sensitivity | -160dB |
| Working voltage | +6.0 ~+36VDC |
| Channels | 20 channel all-in-view tracking |
| GPS frequency | L1, 1575.42MHz |
| GPS Position Accuracy | 10 meters, 2D 3D |
| GSM Position Accuracy | Later will realize |
| Size of the main unit | 62*50*22 (mm) |
| Weight of the main unit | 65g |
| Hot start | 1sec., average |
| Warm start | 2sec., average |
| Cold start | 40 sec., average |
| Speed accuracy | ≤0.2M/S (wide-open area)
|
Feel free to contact us for more details.
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
