Best Quality of Mosi2 Heating Element, Mosi2 Electric Heater, Mosi2 Resistor for Kilns and Oven
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
SHIBO-MoSi2 heating elements |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Mosi2 Heating Element, Mosi2 Furnace Heater |
| Structure Material: |
Non-Metallic Material |
| Application: |
Heater |
| Principle: |
Resistance Heating |
| Heat Transfer Surface: |
Heating Rods |
Product Description

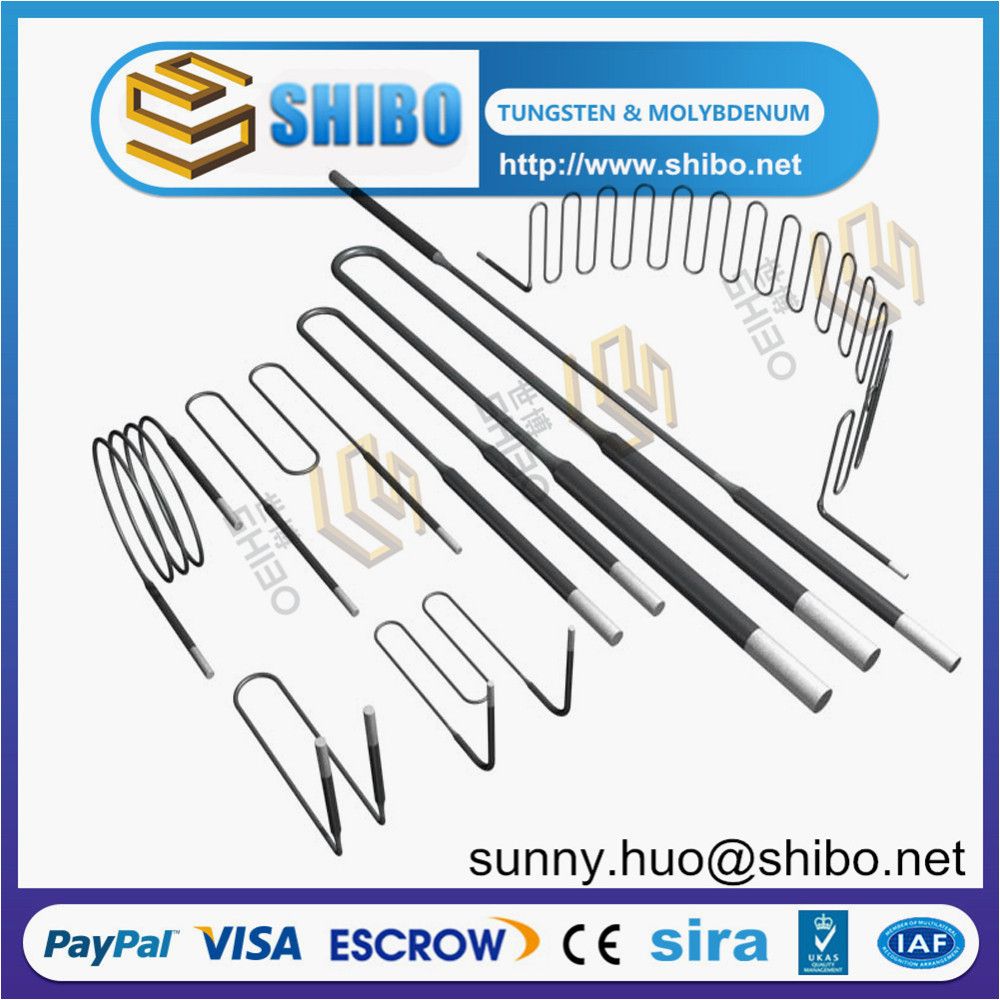

MoSi2 heating element is a resistance generate-heating component made from MoSi2 or the basic material. Above 900C temperature the surface will form a SiO2 protection film on its surface for preventing it continuing oxidized. The MoSi2 heating element must not be used in the temperature 400-700C for a long time, otherwise the element will be cremated in the low temperature. Type: Pole, U-shape, W-shape and U-right angle shape, Size: diameters 3/6, 4/9,6/12, 9/18, 12/24mm and in lengths up to 2000mm
Price: competitive and wholesale price Delivery: fast and timely delivery Package: special and more protective packing marked with" fragile, handle with care" | 2. Physics Characters: |
| Volume Density | Bending Strength | Vickers Hardness | Porosity | Water absorption | Heating Elongation Rate |
| 5.5g/cm3 | 15-25 kg/cm3 | (HV)570kg/mm2 | 7.40% | 1.20% | 4% |
Chemistry CharacterMoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.The Using Temperature Under the Different Atmospheres
Atmosphere | The Maximum Using Temperature of Elements |
| 1700 | 1800 |
| No2 ,Co2 ,O2 ,Air | 1700°C | 1800°C |
| He ,Ar ,Ne | 1650°C | 1750°C |
| SO2 | 1600°C | 1700°C |
| CO ,H2 | 1500°C | 1600°C |
| Dry H2 | 1350°C | 1450°C |

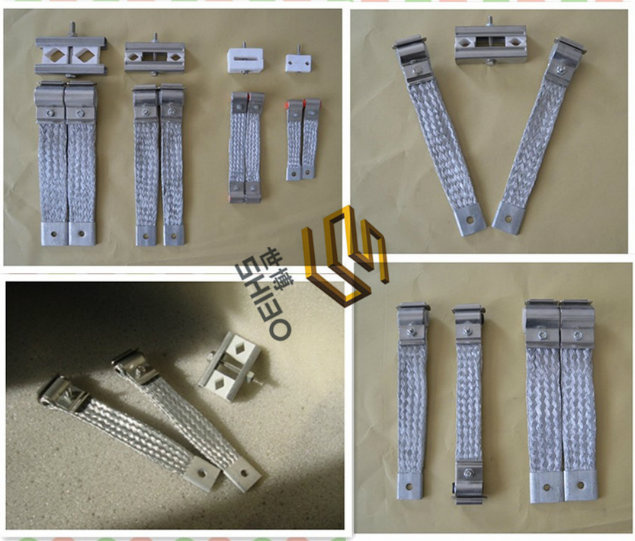

Application:MoSi2 heating element is used in the furnace temperature from 1300C to 1700C. It is extensively used in the industries of metallurgy glass, ceramic refractory, crystalelectronic device, furnace-manufacture, etcRelated contact straps and holders

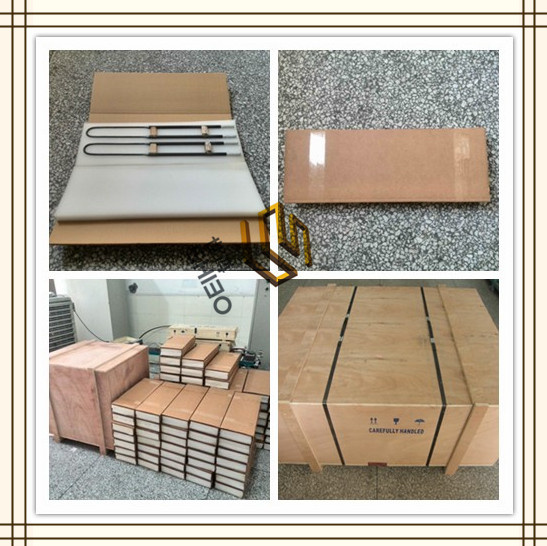

Safe and standard packing
Our advantages:
(1) professional and leading producer, very cheap factory price, best quality assured
(2) fast and timely delivery
(3) safe package
(4) accept small order and customer's design shapeWaiting for your calls or emails for ordering!
Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.
Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.
Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.
Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.
We sincerely welcome all the friends at home and abroad to visit our company.
